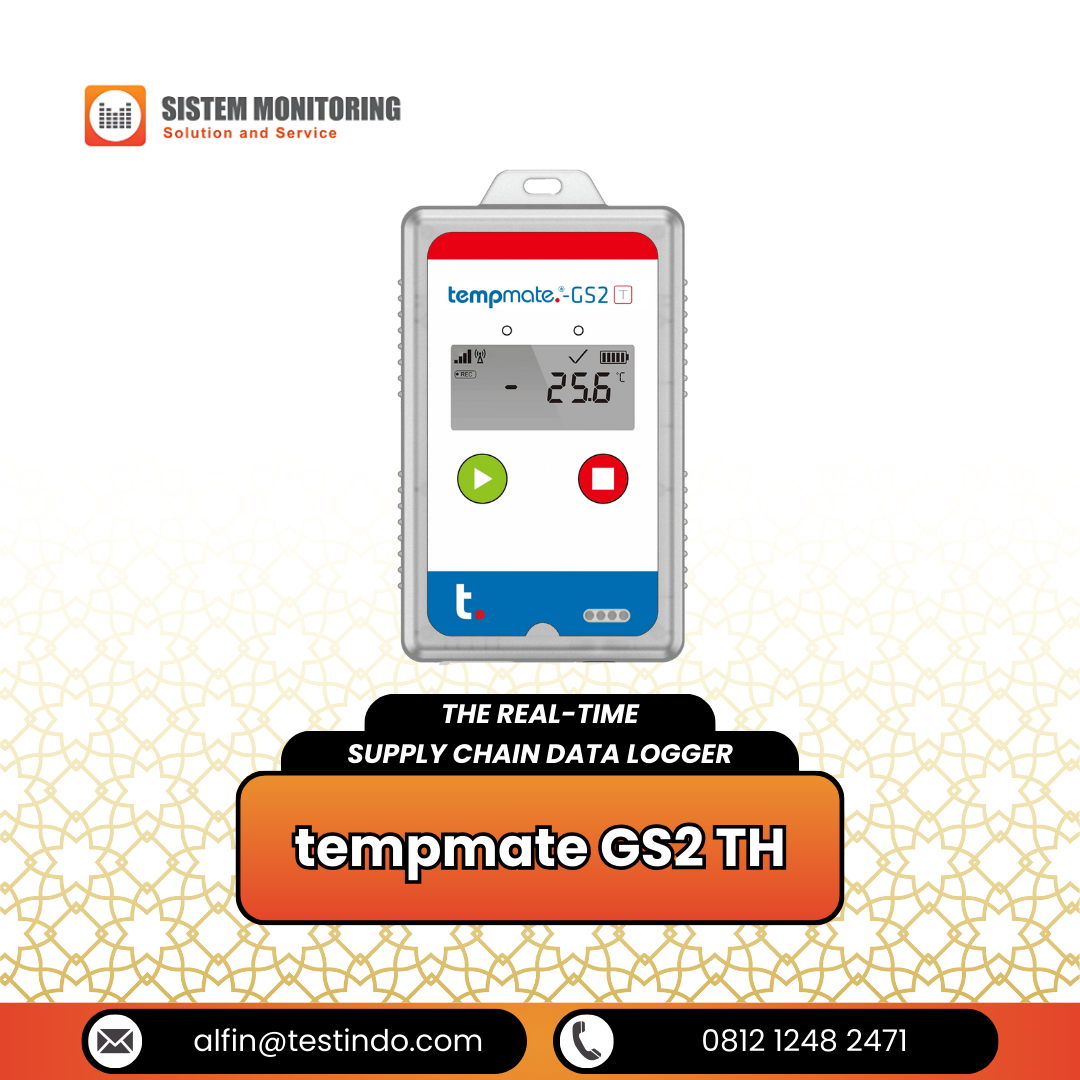

Alat Perekam Data Suhu The Real-time Supply Chain Data Logger tempmate GS2 TH

Description

Keuntungan

Solusi untuk mengetahui segera setiap potensi masalah, mengurangi risiko kerusakan atau kehilangan produk.

• PEMANTAUAN
  Suhu, kelembaban, guncangan, ringan, lokalisasi
• WAKTU NYATA ( REAL TIME )
  Cakupan 4G di seluruh dunia
• ALARM INSTAN
  Melalui SMS atau Email
• MODE PENERBANGAN
  Diperbolehkan di pesawat





Visibilitas real-time ke dalam perjalanan barang Anda

• Pantau cara pengangkutan barang sensitif Anda: dapatkan suhu, kelembapan, guncangan, dan kemiringan.
• Dapatkan lokalisasi barang Anda, cari tahu di mana barang tersebut berada saat alarm berbunyi.
• Alarm segera melalui SMS atau email
• Ketahui status barang sensitif Anda saat ini, di mana pun barang tersebut berada







Empat langkah untuk mengawasi Barang Angkutan Anda

1. Mulai Alat Perekam Data Suhu GS2
2. Secara otomatis mengumpulkan data secara real-time
3. Lihat pengukuran pada antarmuka cloud gratis
4. Lakukan analisis mendalam terhadap data Anda

Main Technical Specifications tempmate GS2 TH

Monitored information* Temperature, rel. Humidity, Light, Tilt, Shock, Location
Battery type All the variation available in Lithium and Non-Lithium option
Temperature Range -30°C to +70°C
Temperature Accuracy ±0.3°C (-10°C ~ 45°C) , ±0.5°C (Other)
Temperature Resolution 0.1°C
Humidity Range 0% to 100%rH
Humidity Accuracy ±3% (20% ~ 80%) , ±5% (Other)
Resolution Humidity 1%
Ambient Light 0 to 10000lx / Accuracy 0.01lx
Resolution Ambient Light* 1 lx
Shock Indicator* Shock detection (8 levels of shocks)
Tilt Indicator* Tip-over detection (change of tilt > 90°)
Local Data Storage Capacity 24,200 values for Temperature, Humidity and Light
Shelf-Life* Lithium Battery devices : 16 months shelf life
Non-Lithium Battery devices: 15 months shelf life
Battery Lithium Battery: Li-ion Polymer Battery 2400mAh
Non-Lithium Battery: Ni-MH Battery 2000 mAh
External Sensor Available with the TE Model
Log Interval User defined: 1 min. to 60 min. (10 min. as standard setting preconfigured)
Transmission Interval User defined: 10 min. to 1440 min. (240 min. as standard setting preconfigured)
Recording Duration*
With standard log interval of 10 min. and transmission interval of 240 min:
Lithium Battery: 120 days
Non Lithium Battery: 90 days
Startup Mode By default start by button
Stop Mode By default stop by button (optionally via the USB port or the cloud platform)
Start Delay User defined: 0 min. to 1440 min. (No start delay as standard setting preconfigured)
Protection Class IP65
Display Multifunction Display
Dimensions 103 x 64 x 23 mm for Lithium and 103 x 64 x 30 mm for Non-Lithium
Weight 130 g for Lithium and 175 g for Non-Lithium
Certifications CE, EN12830, EMC, RoHS, FCC
Validation Certificate Available as PDF in the Cloud
Software tempmate.®-Cloud
Report Generation Readable in the Cloud and locally in the device through the USB 2.0 interface
Password Protection Cloud Password Protection
Connectivity LTE 4G cat 1 with 2G Fallback
Automatic Flight Mode* Automatic offline mode during flight (no transmission)
Location LBS – GSM Localization
Alarm Thresholds Configuration* Up to 6 Thresholds for temperature + up to 6 for Humidity + up to 3 for Light,
1 for Tilt, 1 for Shock, Alarm Delay Programmable
Programmable Via Cloud
Alarm Type Single / Cumulative
Recommended Storage Temperature +15°C to + 25°C
Case Material Polycarbonate
