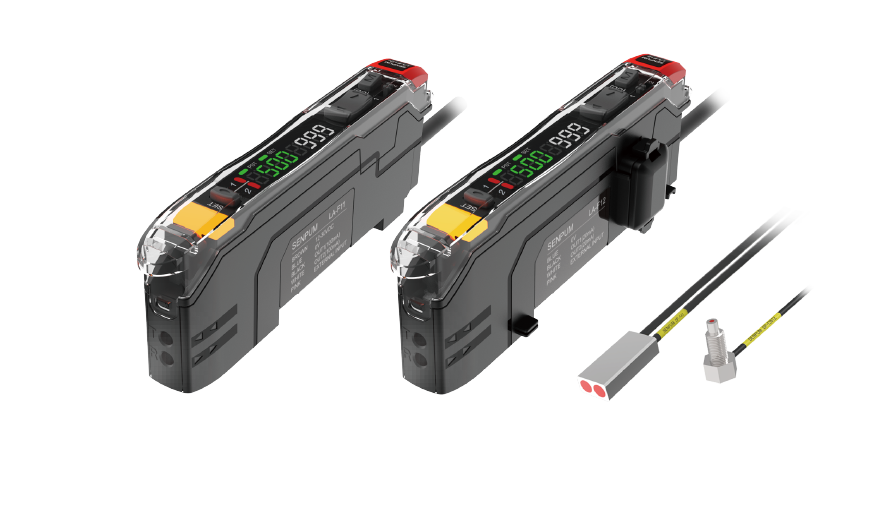

Amplifier terpisah Sensor Warna LED Cahaya Putih Tipe Cerdas Amplifier Separate Type White Light LED Intelligent Type Color Sensor LA-F10 Series

Description

Diskriminasi warna yang tinggi dimungkinkan, dan unit serat optik universal asli dapat dihubungkan langsung



Products Lineup

Amplifier

Appearance	Type		Response time	Output type	Model
	White Light LED Intelligent	Main module	80us(SHS)/250us(HS)/1ms(STND)/16ms(GIGA) switchable	NPN	LA-F11N
				PNP	LA-F11P
				NPN/PNP	LA-F11
		Expansion module		NPN	LA-F12N
				PNP	LA-F12P
				NPN/PNP	LA-F12

Sensor head

Appearance	Type	Detecting distance	Spot diameter	Model
	Adjustable small light spot	10~30mm	Φ0.9-3.5mm	LA-F20
	Side-view adjustable small light spot	3~15mm	Φ0.9-1.5mm	LA-F22
	Long-distance	70±20mm	Φ6mm	LA-F24
	Small light spot	16±4mm	Φ1mm	LA-F25
	Long-distance	60±10mm	Φ2mm	LA-F26
	Area type	5~20mm	–	LA-F28

Fiber unit

Appearance	Type	Detecting distance	Spot diameter	Model
	Screw mounting	0~400	M3 nut type coaxial	SP-136TZ
		0~450	M3 straight coaxial	SP-136FZ
	Cylindrical (Screw mounted)	0~140	Φ2	SP-150U
	Small light spot ( reflective )	–	Ф0.9~3.5mm	SP-111
		–	Ф0.1mm	SP-121
	Narrow beam/High power	0~2300	–	SP-141
	Casing type	0~180	Ф2	SP-132
	Heat-resistant type	0~770	Ф2.6	SP-584C

Lens＋fiber unit

Fibre unit appearance	Fibre unit model	Spot diameter	Adaptable lens model	Lens appearance
	SP-122X	Approx. Ф0.2	P-14HA	P-12HA： P-14HA： P-15HA：
	SP-125X	Approx. Ф0.1
	SP-136FA	Approx. Ф0.4	P-14HA、P-15HA
	SP-136FG	Approx. Ф0.4
	SP-136FZ	Approx. Ф0.4	P-12HA、P-14HA、P-15HA
	SP-136TG	Approx. Ф0.4
	SP-136TZ	Approx. Ф0.4



Lens＋fiber unit

Fibre unit appearance	Fibre unit model	Spot diameter	Adaptable lens model	Lens appearance
	SP-111	Ф0.9~3.5	–	–
	SP-136FA	Approx. Ф0.4	P-16HA
	SP-136FG	Approx. Ф0.4	P-15HA
	SP-121	Approx. Ф0.1	–	–



Technical Specifications

NPN output

Model	LA-F11N	LA-F12N
Output type	NPN
Response time	80us(SHS)/250us(HS)/1ms(STND)/16ms(GIGA) switching type
Light source	White LED
Output delay	OFF/On delay/Off delay/One shot
Power voltage	12 to 30 VDC with ripple (P-P) 10%
Current consumption	Less than 65 mA at 24V (without load) Less than 120 mA at 12V (without load)
Control output	2 outputs NPN open collector / PNP open collector 30 V or less, 50 mA or less Residual voltage 2 V or less L-ON/D-ON switching type
Control input	NPN/PNP input Setting/full auto setting/light source off/BANK/ABANK switching type
Protection circuit	Power reverse connection protection, power surge protection, output overcurrent protection, output surge protection,reverse output connection
Maximum number of cascade units	16 units
Number of mutual interference prevention units	Default 8 units, 16 units when doubling anti-interference function is turned on
Ambient light	Incandescent lamp: under 10000Ix Sunlight: under 20000lx
Ambient temperature	-20 to +50℃（no freezing)
Relative humidity	35 to 85%RH（no condensation)
Shock resistance	500 m/s² 3 times for each of X,Y,Z axis
Vibration resistance	10 to 55 Hz dual amplitude 1.5 mm 2 hours in each direction X, Y, Z
Material	Main module and expansion housing materials: polycarbonate
Weight	Aprrox.60g(cable included)



PNP output

Model	LA-F11P	LA-F12P
Output type	PNP
Response time	80us(SHS)/250us(HS)/1ms(STND)/16ms(GIGA) switching type
Light source	White LED
Output delay	OFF/On delay/Off delay/One shot
Power voltage	12 to 30 VDC with ripple (P-P) 10%
Current consumption	Less than 65 mA at 24V (without load) Less than 120 mA at 12V (without load)
Control output	2 outputs NPN open collector / PNP open collector 30 V or less, 50 mA or less Residual voltage 2 V or less L-ON/D-ON switching type
Control input	NPN/PNP input Setting/full auto setting/light source off/BANK/ABANK switching type
Protection circuit	Power reverse connection protection, power surge protection, output overcurrent protection, output surge protection,reverse output connection
Maximum number of cascade units	16 units
Number of mutual interference prevention units	Default 8 units, 16 units when doubling anti-interference function is turned on
Ambient light	Incandescent lamp: under 10000Ix Sunlight: under 20000lx
Ambient temperature	-20 to +50℃（no freezing)
Relative humidity	35 to 85%RH（no condensation)
Shock resistance	500 m/s² 3 times for each of X,Y,Z axis
Vibration resistance	10 to 55 Hz dual amplitude 1.5 mm 2 hours in each direction X, Y, Z
Material	Main module and expansion housing materials: polycarbonate
Weight	Aprrox.60g(cable included)





NPN/PNP output

Model	LA-F11	LA-F12
Output type	NPN/PNP
Response time	80us(SHS)/250us(HS)/1ms(STND)/16ms(GIGA) switching type
Light source	White LED
Output delay	OFF/On delay/Off delay/One shot
Power voltage	12 to 30 VDC with ripple (P-P) 10%
Current consumption	Less than 65 mA at 24V (without load) Less than 120 mA at 12V (without load)
Control output	2 outputs NPN open collector / PNP open collector 30 V or less, 50 mA or less Residual voltage 2 V or less L-ON/D-ON switching type
Control input	NPN/PNP input Setting/full auto setting/light source off/BANK/ABANK switching type
Protection circuit	Power reverse connection protection, power surge protection, output overcurrent protection, output surge protection,reverse output connection
Maximum number of cascade units	16 units
Number of mutual interference prevention units	Default 8 units, 16 units when doubling anti-interference function is turned on
Ambient light	Incandescent lamp: under 10000Ix Sunlight: under 20000lx
Ambient temperature	-20 to +50℃（no freezing)
Relative humidity	35 to 85%RH（no condensation)
Shock resistance	500 m/s² 3 times for each of X,Y,Z axis
Vibration resistance	10 to 55 Hz dual amplitude 1.5 mm 2 hours in each direction X, Y, Z
Material	Main module and expansion housing materials: polycarbonate
Weight	Aprrox.60g(cable included)
