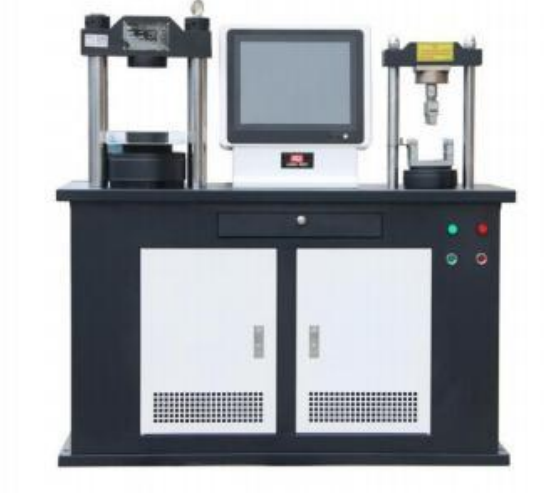

Description
Features:
1. Using high-precision digital micro-valve, can realize loading rate loading;
2. With the force closed-loop control function, it can realize the loading of the loadstress rate;
3. The hydraulic pump adopts an axial five-piston ultra-high pressure pump, whichworks smoothly and has low noise;
4. The control valve adopts a high-precision digital micro-flow valve with high control
precision;
5. The sensor adopts a pressure sensor, which has good reliability;
6. The principle of automatic loading is adopted to strengthen the control of theloading rate.

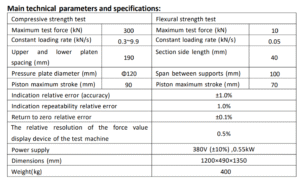

Main technical parameters and specifications:
Compressive strength test Flexural strength test
Maximum test force (kN) 300 Maximum test force (kN) 10
Constant loading rate (kN/s) 0.3~9.9 Constant loading rate (kN/s) 0.05
Upper and lower platen
spacing (mm) 190
Section side length (mm)
40
Pressure plate diameter (mm) Φ120 Span between supports (mm) 100
Piston maximum stroke (mm) 90 Piston maximum stroke (mm) 70
Indication relative error (accuracy) ±1.0%
Indication repeatability relative error 1.0%
Return to zero relative error ±0.1%
The relative resolution of the force value
display device of the test machine
0.5%
Power supply 380V (±10%) ,0.55kWDimensions (mm) 1200×490×1350
Weight(kg) 400
