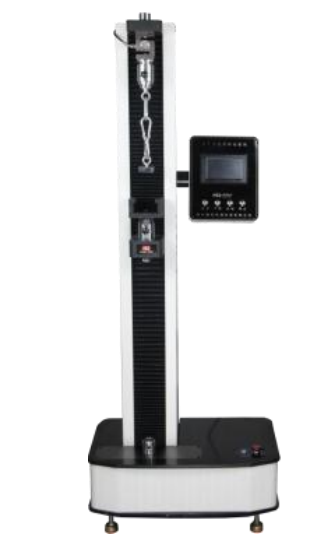

Description
Features:
1. Single-arm design, cementitious sand special models
2. Safety position and experimental position height arbitrary lock.
3. Automatic protection when exceeding the maximum load, software limit andelectronic limit double protection.
4. One button automatic operation, full touch screen control, can realizepositioning and automatic return.
Main technical parameters and specifications:
1. Maximum load: 5000N
2. Accuracy level: 1% (level 1)
3. Effective stretching space: effective stroke 800mm
4. Effective test width: 100mm
5. Speed range: 5-500mm/min
6. Power supply: 220V 50HZ
7. Total machine weight: about 90kg
8. Machine dimensions (length*width*height): about 500*450*1350mm9. Test force resolution, maximum load 500,000 yards; there is no binning inside andoutside, and the resolution remains unchanged throughout the process
10. Displacement measurement accuracy: within ±1% of the indication value
11. Deformation measurement accuracy: within ±1% of the indication value
12. Test bench control: full touch screen control, capable of positioning and automaticreturn
13. Overload protection: automatic protection when the maximum load is exceeded14. Test force measurement range: 1%-100%FS
15. Deformation measurement range: 1% ~ 100% FS
