Description
SPESIFIKASI UMUM
Packaging Dimensions: (WxDxH) 2600*1450*1600mm
Power supply source: Single-phase, 220V±10%, 50Hz
HS Code: 8479899990
PARAMETER STANDAR
| Model | HD-E808-90C |
| Internal size (L*W*H) | 900*600*500mm |
| External size (L*W*H) | 2100*1250*1200mm |
| Saturated Tank Temperature | Ambient ~60℃ |
| Chamber Temperature | Ambient ~60℃ (No humidity if temp. below +25℃) |
| Chamber Temperature fluctuation | ±2℃ |
| Chamber Temperature Uniformity | ±0.5℃ |
| Humidity range | 30% ~ 95% |
| Temperature fluctuation | ±3%RH |

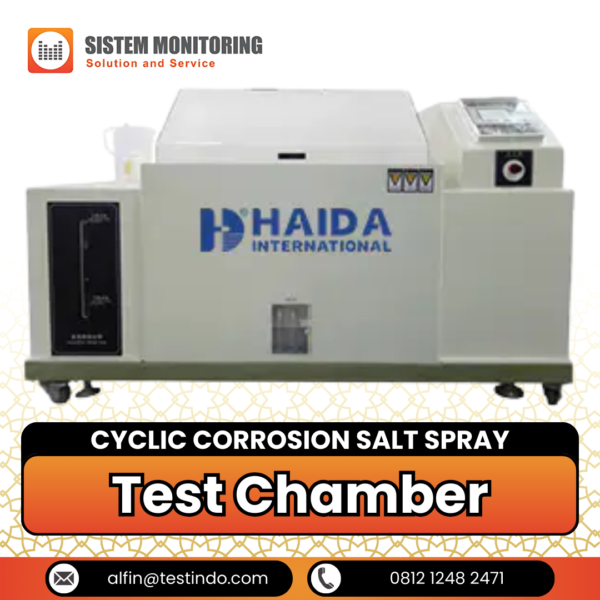

| Salt spray test
|
Concentration of salt solution: 5%
Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
| Spraying method | Continuous and Periodic spray type |
| Lab volume | 270L |
| Brine tank capacity | 40L |
| Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
| Air source | 2.5HP Air pump, pump capacity with 60L or above
(provided by buyer) |
| Power supply source | Single-phase, 220V±10%, 50/60Hz |
| Test Type | NSS,ASS,CASS |
| Test Standard | ASTM G85-A1,A2,A3,;ASTM B117, ASTM B368
ISO9227, IEC60068-2 |
BAHAN RUANG
| Item | Specification |
| Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
| Chamber cover | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
| Saturated barrel | High temperature and corrosion resistance, equipped with water level indicating device |
| Heating system | Titanium electric heater, corrosion resistance |
| Blower | Multi-blade blower |
| Water pump | Corrosion resistant pump |
| Solenoid valve | JPA series |
| Sample shelves | Test Angle: 15° ~ 30°, adjustable |
| Viewing window | Double vacuum organic glass |
| Controller | PLC controller, touch screen |
| Water supply | Adopts automatic water charging system for long time operation. |
FITUR PRODUK
1, Desain penempatan sampel lapisan ganda untuk meningkatkan area ruang internal yang dapat digunakan.
2, Mengadopsi pengontrol suhu dan kelembaban presisi tinggi untuk uji suhu, kelembaban dan pengeringan.
3, Dekompresi saluran masuk udara dua kutub untuk memastikan tekanan semprotan yang stabil.
4, Menara semprot memiliki penyebar berbentuk kerucut untuk memimpin dan mengatur keseragaman dan volume tetesan kabut garam.
5, perangkat perlindungan keamanan sempurna dengan alarm audio dan fungsi berhenti otomatis.
6, Memiliki proses jenuh untuk menyemprotkan udara bertekanan untuk memastikan lingkungan pengujian yang stabil dan mencegah nozel tersumbat.
7, Dengan pengontrol waktu untuk mematikan daya secara otomatis ketika pengaturan waktu tiba.
