Description

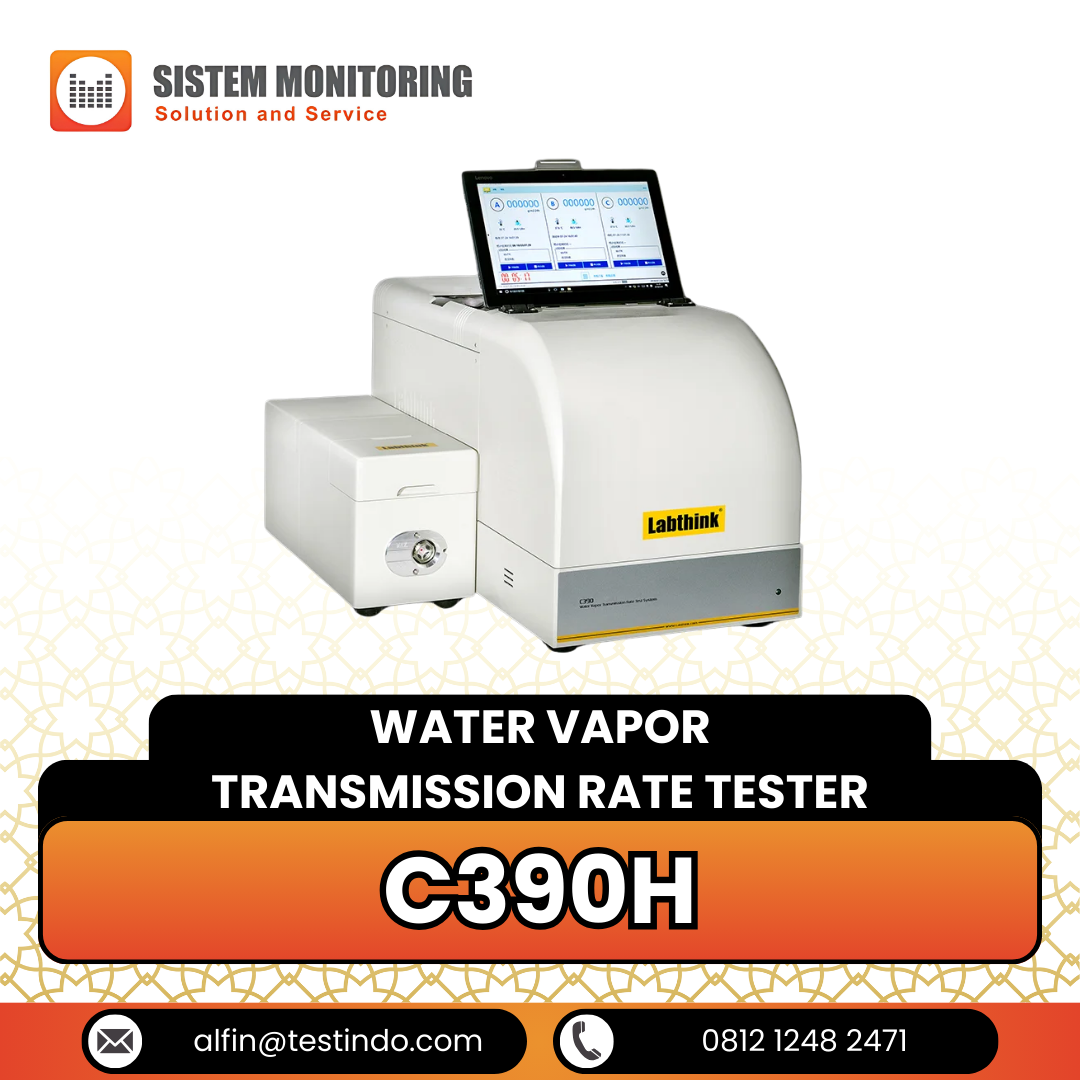

Sistem Uji Laju Transmisi Uap Air C390H, dirancang dan diproduksi berdasarkan metode sensor inframerah dan sesuai dengan persyaratan ISO 15106-2 dan ASTM F1249. Instrumen ini dapat digunakan untuk mengukur laju transmisi uap air dari bahan penghalang dengan sifat penghalang kelembaban tinggi dan sedang dengan rentang pengujian yang luas dan efisiensi pengujian yang tinggi. Instrumen ini dilengkapi dengan desain blok terintegrasi yang dipatenkan yang terdiri dari 3 sel uji. Dilengkapi dengan sensor presisi tinggi dan sistem yang dikendalikan komputer profesional, instrumen ini dapat mengatur dan mengontrol suhu, kelembaban, dan laju aliran secara tepat, yang menjamin sensitivitas pengujian dan pengulangan hasil pengujian. C390H berlaku untuk penentuan permeabilitas uap air dari film plastik, terpal, kertas, paket, dan bahan kemasan relatif lainnya dalam makanan, farmasi, peralatan medis, barang konsumsi, industri fotovoltaik dan elektronik, dll.
High Precision
- New type infrared sensor for water vapor analysis with higher sensitivity.
- Patented integrated test block with advanced hydrodynamic and thermodynamic design
- Temperature and humidity are accurately and automatically controlled throughout the test, eliminating the need for operator intervention or separate data-logging devices.
- Temperature and humidity sensor for independent monitoring of test cells.
High Efficiency
- Three identical specimens can be tested simultaneously, which meets the requirements for parallel test.
- Three distinct specimens can be tested under same testing condition, delivering higher throughput while reducing the number of instruments required.
Labor Saving
- Automatic temperature and humidity control eliminate the need for operator monitoring and adjustment.
Simplified Operation
- 12’’ touch-screen pad powered by WindowsTM 10 operating system
- Fast automatic testing process
- Optional DataShieldTM software and accessories for automatic data management
Product Features
Patented Sensor Technology
The instrument uses Labthink’s proprietary infrared sensor for water vapor analysis, which has excellent precision, repeatability and service life. Higher sensitivity and stability make it unnecessary to calibrate with distinct reference films for different test ranges and the interval between calibrations is extended. The test range of the sensor can be set automatically according to the transmission rate of the specimens without manual adjustment.
New Generation Integrated Testing Block
The patented three-cell integrated test block structure using advanced thermodynamics and hydrodynamics analysis greatly improves the temperature, humidity and flow measurement accuracy across the three test cells and supports sequential testing of three samples.
Automatic Control of Temperature, Humidity and Flow Rate
The internal temperature and humidity of the instrument are automatically adjusted with temperature and humidity sensors, maintaining the stability of the test specimen environment. Automatic flow rate control ensures constant flow during the testing process and minimizes any errors caused by an unstable flow rate.
Easy-to-use and High-efficiency System
The automatic test mode, combined with the instrument features, eliminates the need for manual adjustments to quickly obtain accurate results, saving training costs and releasing staff from manual monitoring so that they are available for other tasks.
The professional test mode provides flexible and rich instrument control functions to meet individual scientific research needs.
Unique, optional DataShieldTM system, meets the requirements for centralized management of user data. It supports a variety of formats of exported data. Reliable security algorithms are used to prevent data leakage. It supports universal wired and wireless LAN, optional private wireless network and third-party software.
User-oriented Service Concept
Adhering to our user-oriented service concept, Labthink has created a customization system that provides flexible and comprehensive customization services for the accommodation of non-standard specimens and packages.
Test Principle
The test specimen is mounted in the diffusion cell, which is divided into a dry chamber and a controlled-humidity chamber. The dry side of the specimen is swept by a flow of dry nitrogen, and the water vapor permeating through the specimen from the controlled-humidity chamber is carried by dry nitrogen to the infrared sensor where proportional electrical signals will be generated. The water vapor transmission rate is obtained by analyzing and calculating the electrical signals. For whole package specimens, the dry nitrogen flows inside the specimen while the outside of specimen is maintained in a high humidity environment.
Test Standards
ISO 15106-2, ASTM F1249, GB/T 26253, JIS K7129, YBB 00092003-2015
Applications
| Basic Applications |
|---|
|
|
|
| Extended Applications |
|
|
|
|
|
|
Technical Specifications
Table 1: Test Parameters Note1
| Parameter | Model C390H | |
|---|---|---|
| Testing Efficiency | g/(m2·day) (Standard) | 0.005 ~ 40 |
| g/(m2·day) (Optional) | 0.005～100 | |
| g/(100in2·day) | 0.0003 ~ 2.6 | |
| g/(pkg·day) (Package) | 0.000025 ~ 0.2 | |
| Resolution | g/(m2·day) | 0.0001 |
| Repeatability | g/(m2·day) | 0.005 or 2% |
| Test Temperature | °C | 10 ~ 55 ±0.2 |
| Test Humidity | RH | 5% ~ 90% ±1%, 100% |
| Additional Functions | Package Test (3L Max.) | Optional |
| DataShieldTM Note2 | Optional | |
| Computer System required by GMP | Optional | |
| CFR21 Part11 | Optional | |
Table 2: Technical Specifications
| Test Chamber | 3 test chambers |
|---|---|
| Specimen Size | 108mm x 108mm |
| Specimen Thickness | ≤3mm |
| Standard Test Area | 50cm2 |
| Carrier Gas | 99.999% High-purity Nitrogen (outside of supply scope) |
| Carrier Gas Pressure | ≥0.28MPa/40.6psi |
| Port Size | 1/8 inch metal tubing |
Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be purchase as required.
Note 3: The described product features should be in line with Table 1: Test Parameters.
