Studi kasus singkat oleh Tibor Horvath dengan Uji Tarik Fakopp

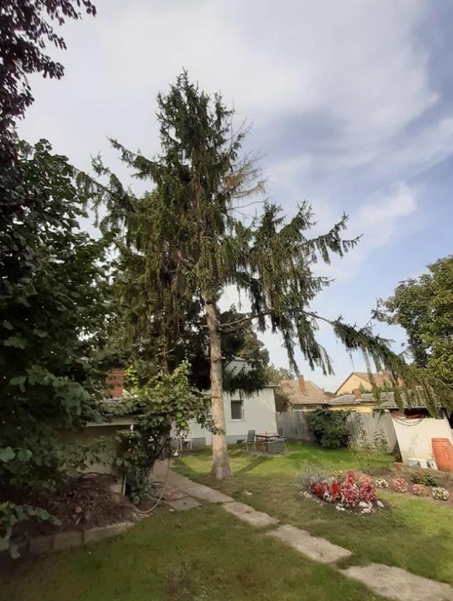

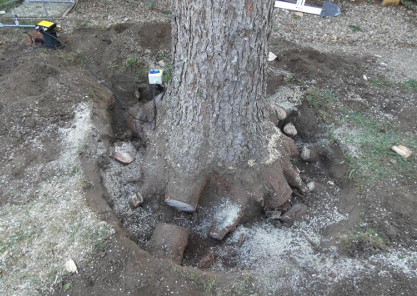

Pohon itu berdiri di taman pinggiran kota. Kondisi menunjukkan bahwa pohon itu harus ditebang. Penebangan tersebut diubah menjadi serangkaian 6 percobaan tentang bagaimana pohon kehilangan stabilitasnya karena “kehilangan” akar utamanya. Faktor keamanan untuk 33 m/s (cc. 120 km/jam) dihitung.

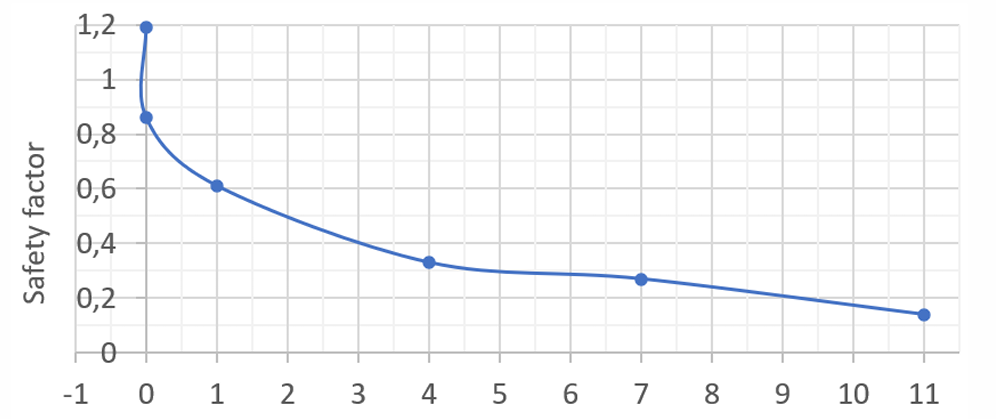

Kasus dan faktor keamanan 1

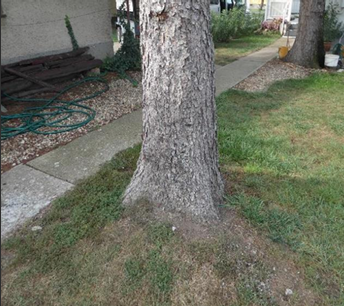

Utuh 1.19

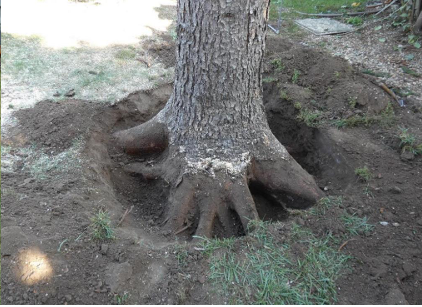

Digali 0,86

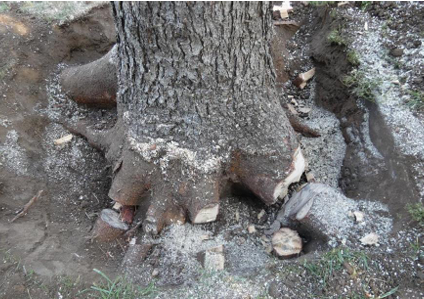

Potongan pertama (satu potongan) 0,61

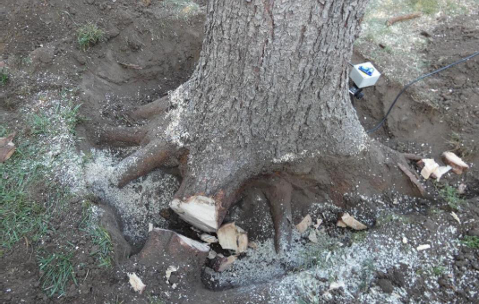

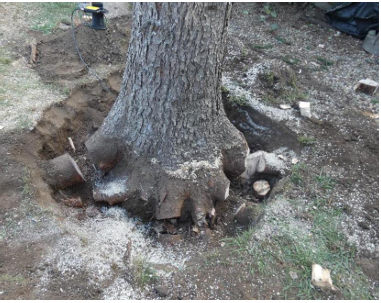

Kasus dan faktor keamanan 2 Setelah pemotongan…
4 akar 0,33
7 akar 0,27
semua akar (11) 0,14
Hasil
Our most popular product among arborists
Detects the size and location of decayed or hollow regions
Works fast: a measurement can be completed in 5-10 minutes
Creates a 3D model of the trunk with multiple layers of measurement
Customizable wind load modeling is included in the software
Utilizes non-destructive technique using sound waves (no radiation)
For trees with thick bark, 12 cm long nails are also available
Usage Instructions

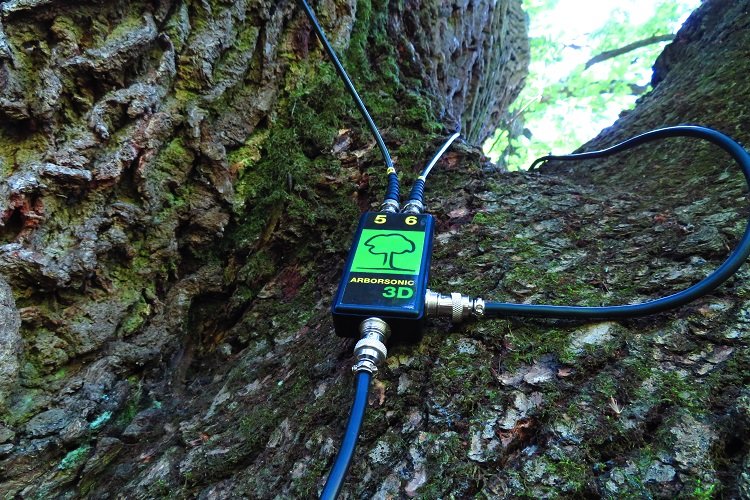

- Drive the transducers through the bark using a rubber hammer with even spacing around the trunk.
- Measure the distances between the transducers with a caliper and enter the measured data to the computer.
- Tap each transducer with a steel hammer to generate sound waves. ArborSonic 3D measures the travel times with microsecond precision to each transducer and transmits the data to the computer.
- The software calculates and displays the internal sound-velocity distribution of the tree.
- Measurements taken at various heights can be assembled into a 3D model.

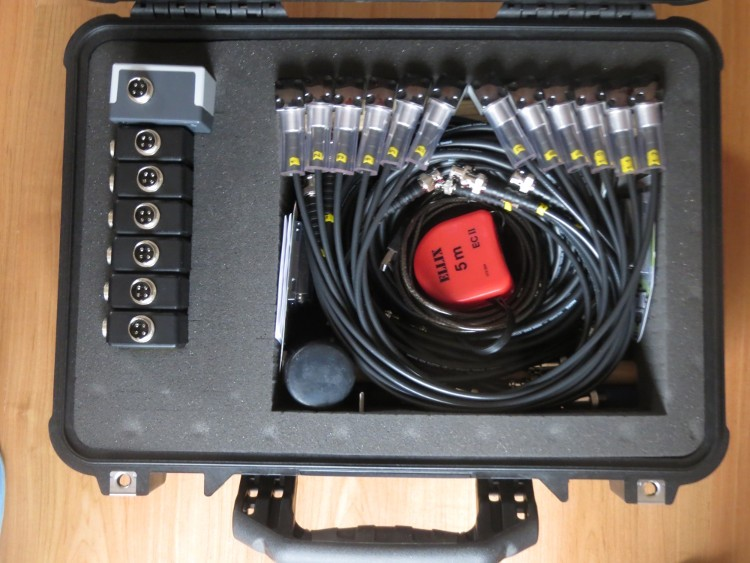

package contents
SD02 Piezo transducers
Amplifier boxes
Battery box
Cables to connect amplifier boxes and battery box
Sensor remover tool
Tape measure
Steel hammer for tapping transducers
Rubber hammer for mounting the transducers
Peli case
2pcs. of rechargeable 9 V block batteries
Battery charger
User’s manual
ArborSonic 3D Software
Caliper for measuring sensor positions (optional)
technical specifications
Measured time precision ± 2 microseconds
Sensor Low noise SD02 piezo sensor
Number of sensors Variable from 8 up to 32
Amplifier box size 127 x 58 x 25 mm
Power consumption 240 mW
Power supply Standard (rechargeable) 9V block battery
Continuous operation time* Approximately 2 hours
Carrying case Peli Case 1500EU
Total weight** 6 kg
PC connection RS232 over cable or Bluetooth
Data transmission time per sensor tap Below one sec
Total measurement time of one tree*** 20 minutes
Operating temperature range0-40 °C
*with one battery
**without PC, including case, hammers and 10 sensors
***one section, including assembly, geometry registration, tapping and disassembly, using 10 sensors
