Description
| Digital Load cell Interface | RS485, Max transmission distance ≤75m |
|---|---|
| Transmission speed rate | 19200bps |
| Digital load cell power supply | DC 12V/750mA |
| Digital load cell connection quantity | 1~4 pcs |
| Digital load cell communication protocol | MK-LUD-P Protocol, MK-SLB-D Protocol |
| Display | 7 LED digital tube with 1.2 inch red light, 7 state instruction |
| Scoreboard interface | Current loop serial output, RS232, 600bps, transmission distance ≤100m |
| Serial communication interface | RS232, 600~1920bps optional |
| Printer interface | Standard parallel print interface, recommend EPSON LQ/300K + II Panasonic |
| Indicator power supply | AC: Switch power supply 110V~200V/AC, 50Hz |
| Operating temperature | 0° C ~ 40° C Humidity: ≤85% (RH) |
| Storage temperature | -10° C ~ 60° C Storage Humidity: ≤95% (RH) |
| Dimension | 293mm (L) x 210mm (W) x 70mm (H) |
ㅤ
| Model | Voltage (V) | Current (mA) | Power Supply | Size (mm) | Characteristic and Application Range |
|---|---|---|---|---|---|

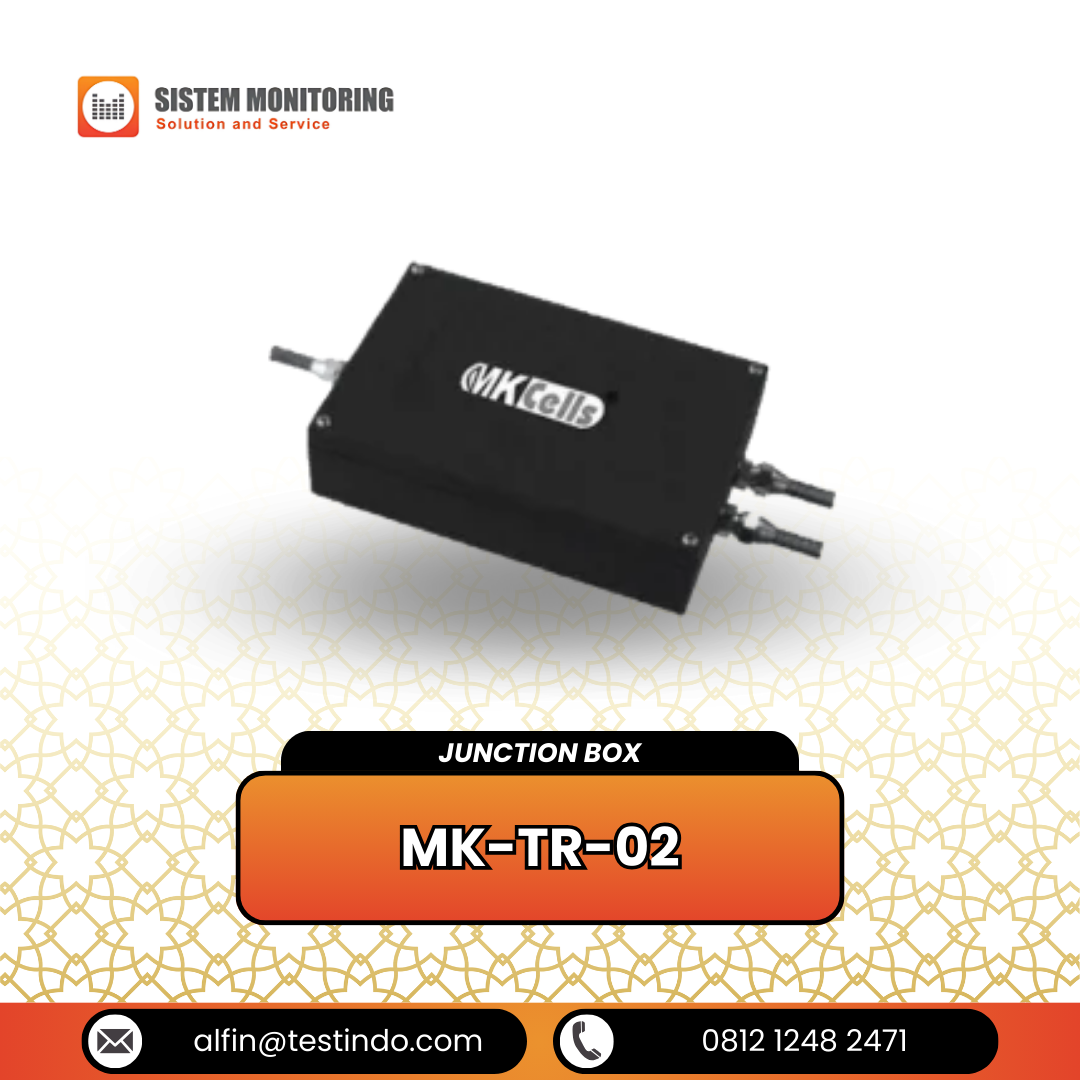

| TR-02 |
0 ~ 5 0 ~ 10 |
0 ~ 20 0 ~ 40 |
DC15-24V | 180 x 120 x 45 (Cast aluminium) | 1. Connect 1 to 2pcs analog load cell. 2. Be applied to industrial process control and tax measuring system in mines. |
| TR-02+ | 0 ~ 5
0 ~ 10 |
0 ~ 20 0 ~ 40 |
DC15-24V | 180 x 120 x 45 (Cast aluminium) | 1. Connect 1 to 2pcs analog load cell. 2. Be applied to industrial process control and tax measuring system in mines. 3. Output by major and auxiliary channels. Auxiliary channel could be connected with direction load cell. |
| TR-02B | – | 4 ~ 20 | DC15-24V | 110 x 80 x 45 (Cast aluminium) | 1. Connect 1 piece analog load cell. 2. Special integrated circuit with limited current protection function is suitable for industrial process control. |
