Alat Pencatat Data Ketinggian Air HOBO Water Level Data Logger MX2001-01-Ti Pencatat data level air pertama di industri ini yang dirancang untuk pengaturan nirkabel yang mudah dan pengunduhan melalui teknologi Bluetooth. Secara drastis menyederhanakan dan menurunkan biaya pengumpulan data lapangan dengan menyediakan akses nirkabel ke data level air dan suhu dengan akurasi tinggi langsung dari ponsel, tablet, atau komputer Windows yang menjalankan aplikasi HOBOconnect gratis kami. Terdiri dari unit teratas dan sensor level air yang dijual sebagai satu set. Kabel baca langsung diperlukan untuk menghubungkannya. Kabel dapat dipesan dalam panjang 0,2 hingga 500m untuk pemasangan di berbagai sumur. Tambahkan kabel dari Item yang Kompatibel di bawah ini atau kunjungi halaman produk Kabel Baca Langsung.

Categories: ,

Description

Features
  • Wireless data offload to mobile devices or Windows computers via Bluetooth
  • Integrated barometric pressure sensor enables direct water level readout
  • Direct-read cable connects sensor to top-end logger/transmitter
    • The cable includes Kevlar strength member
    • Cables are interchangeable so loggers are easy to redeploy in future applications
    • The logger and sensor add 0.39 meters to the length of the cable
    • Cable length can vary up to 3% from the length ordered
    • The 1, 2, 5, 10, 15, 30 and 60 meter cable lengths are in stock; custom cable lengths have a 1 to 2 week lead time
  • Reference water level can be entered at the start of the deployment
  • Use HOBOconnect for setup, data viewing, and data sharing
  • Powered by two user-replaceable AA batteries in the top-end unit
  • Several logging modes: normal, multi-rate logging, and event-triggered burst-logging
  • Durable ceramic sensor

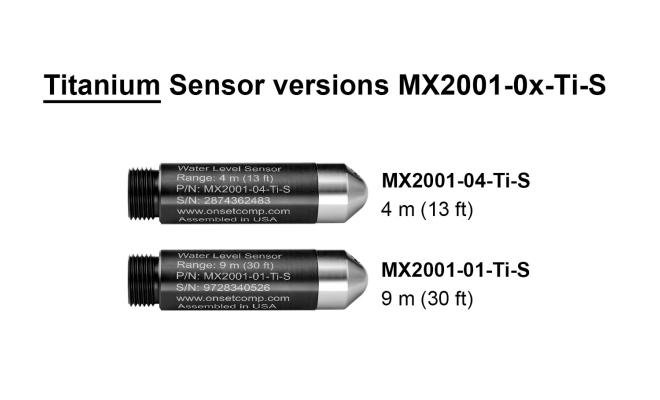

  • Available with stainless steel or titanium sensor ends
  • 3-point NIST-traceable calibration certificate included for the water pressure sensor
Specifications

Pressure (Absolute) and Water Level Measurements MX2001-01-SS-S and MX2001-01-Ti-S

Operation Range:
0 to 207 kPa; approximately 0 to 9 m of water depth at sea level, or 0 to 12 m of water at 3,000 m of altitude
0 to 30 psia; approximately 0 to 30 ft of water depth at sea level, or 0 to 40 ft of water at 10,000 ft of altitude
Factory Calibrated Range:
69 to 207 kPa, 0° to 40°C
10 to 30 psia, 32° to 104°F
Burst Pressure:
310 kPa or 18 m depth
45 psia or 60 ft depth
Water Level Accuracy:
Typical error: ±0.05% FS, 0.5 cm water
Typical error: ±0.05% FS, 0.015 ft water
Maximum error: ±0.1% FS, 1.0 cm water
Maximum error: ±0.1% FS, 0.03 ft water
Raw Pressure Accuracy:
±0.3% FS, 0.62 kPa maximum error
±0.3% FS, 0.09 psi maximum error
Resolution:
<0.02 kPa, 0.21 cm water
<0.003 psi, 0.007 ft water
Pressure Response Time (90%): <1 second at a stable temperature

Pressure (Absolute) and Water Level Measurements MX2001-02-SS-S

Operation Range:
0 to 400 kPa;
0 to 58 psia;
approximately 0 to 30.6 m of water depth at sea level, or 0 to 33.6 m of water at 3,000 m of altitude
approximately 0 to 100 ft of water depth at sea level, or 0 to 111 ft of water at 10,000 ft of altitude
Factory Calibrated Range:
69 to 400 kPa, 0° to 40°C
10 to 58 psia, 32° to 104°F
Burst Pressure:
500 kPa or 40.8 m depth
72.5 psia or 134 ft depth
Water Level Accuracy:
Typical error: ±0.05% FS, 1.5 cm water
Typical error: ±0.05% FS, 0.05 ft water
Maximum error: ±0.1% FS, 3.0 cm water
Maximum error: ±0.1% FS, 0.1 ft water
Raw Pressure Accuracy:
±0.3% FS, 1.20 kPa maximum error
±0.3% FS, 0.17 psi maximum error
Resolution:
<0.04 kPa, 0.41 cm water
<0.006 psi, 0.013 ft water
Pressure Response Time (90%):<1 second at a stable temperature

Pressure (Absolute) and Water Level Measurements MX2001-03-SS-S

Operation Range:
0 to 850 kPa; approximately 0 to 76.5 m of water depth at sea level, or 0 to 79.5 m of water at 3,000 m of altitude
0 to 123.3 psia; approximately 0 to 251 ft of water depth at sea level, or 0 to 262 ft of water at 10,000 ft of altitude
Factory Calibrated Range:
69 to 850 kPa, 0° to 40°C
10 to 123.3 psia, 32° to 104°F
Burst Pressure
1,200 kPa or 112 m depth:
Typical error: ±0.05% FS, 3.8 cm water
Typical error: ±0.05% FS, 0.125 ft water
Maximum error: ±0.1% FS, 7.6 cm water
Maximum error: ±0.1% FS, 0.25 ft water
Raw Pressure Accuracy:
±0.3% FS, 2.55 kPa maximum error
±0.3% FS, 0.37 psi maximum error
Resolution:
<0.085 kPa, 0.87 cm water
<0.012 psi, 0.028 ft water
Pressure Response Time (90%): <1 second at a stable temperature

Pressure (Absolute) and Water Level Measurements MX2001-04-SS-S and MX2001-04-Ti-S

Operation Range:
0 to 145 kPa; approximately 0 to 4 m of water depth at sea level, or 0 to 7 m of water at 3,000 m of altitude
0 to 21 psia; approximately 0 to 13 ft of water depth at sea level, or 0 to 23 ft of water at 10,000 ft of altitude
Factory Calibrated Range:
69 to 145 kPa, 0° to 40°C
10 to 21 psia, 32° to 104°F
Burst Pressure:
310 kPa or 18 m depth
45 psia or 60 ft depth
Water Level Accuracy:
Typical error: ±0.075% FS, 0.3 cm water
Typical error: ±0.075% FS, 0.01 ft water
Maximum error: ±0.15% FS, 0.6 cm water
Maximum error: ±0.15% FS, 0.02 ft water
Raw Pressure Accuracy:
±0.3% FS, 0.43 kPa maximum error
±0.3% FS, 0.063 psi maximum error
Resolution:
           <0.014 kPa, 0.14 cm water
<0.002 psi, 0.005 ft water
Pressure Response Time (90%): <1 second at a stable temperature

Barometric Pressure (MX2001-TOP)

Operation Range:
66 to 107 kPa
9.57 to 15.52 psia
Temperature Calibrated Range:
-20 to 50°C
-4 to 122°F
Accuracy:
±0.2 kPa over full temperature range at fixed pressure; maximum error ±0.5% FS
±0.029 psi over full temperature range at fixed pressure; maximum error ±0.5% FS
Water Level Accuracy:
Typical error: ±0.075% FS, 0.3 cm water
Typical error: ±0.075% FS, 0.01 ft water
Maximum error: ±0.15% FS, 0.6 cm water
Maximum error: ±0.15% FS, 0.02 ft water
Resolution:
<0.01 kPa
<0.0015 psi
Response Time: <1 second at stable temperature
Stability (Drift):
<0.01 kPa per year
<0.0015 psi per year

Temperature Measurements (All Sensor End Models MX2001-0x-SS-S and MX2001-0x-Ti-S)

Operation Range:
-20° to 50°C
-4° to 122°F
Accuracy:
±0.44°C from 0° to 50°C, see manual for plot
±0.79°F from 32° to 122°F, see manual for plot
Resolution:
0.1°C at 25°C, see manual for plot
0.18°F at 77°F, see manual for plot
Response Time (90%): 5 minutes in water (typical)
Stability (Drift):
0.1°C per year
0.18°F per year

Logger

Operating Range:
-20° to 50°C
-4° to 122°F
Radio Power:
1 mW
0 dBm
Transmission Range:
Approximately 30.5 m line-of-sight
Approximately 100 ft line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart®)
Logging Rate: 1 second to 18 hours
Logging Modes:
Fixed interval, multiple intervals with up to 8 user-defined logging intervals and durations, or burst
Memory Modes: Wrap when full or stop when full
Start Modes: Immediate, date & time, or next interval
Stop Modes: When memory full, date & time, or after a set logging period
Time Accuracy:
±1 minute per month 0° to 50°C
±1 minute per month 32° to 122°F
Battery: Two AA, 1.5 V alkaline batteries, user replaceable
Battery Life:
1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, excessive readouts, checking of Full Status Details, and remaining connected with the app will impact battery life.
Memory: 256 KB memory (30,000 sets of measurements)
Full Memory Download Time:
Approximately 2 minutes; may take longer the further the device is from the top end of the logger
Dimensions:
Top end (MX2001-TOP): 2.54 cm (1.0 inches) diameter, 28.9 cm (11.4 inches) length; mounting hole 7.6 mm (0.3 inches) diameter
Sensor end (MX2001-0x-SS-S and MX2001-0x-Ti-S: 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Note: The length of the water level logger cable (CABLE-DR-xxx) can vary -0% to +3% +10 cm (3.9 inches) from the length ordered. The logger adds 38.8 cm (15.3) inches to the length of the cable ordered.
Weight:
Top end (MX2001-TOP): Approximately 136 g (4.78 oz) in air
Stainless sensor end (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 93.4 g (3.3 oz) in fresh water
Titanium sensor end (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water
Wetted Materials:
Top end (MX2001-TOP): PVC housing, Polycarbonate end cap, Viton O-ring
Stainless sensor end (MX2001-0x-SS-S): Stainless steel housing, Viton and Buna-N O-rings, ceramic sensor in stainless steel end cap
Titanium sensor end (MX2001-0x-Ti-S): Acetal housing, Viton and Buna-N O-rings, ceramic sensor in Titanium end cap
Cable (CABLE-DR-XXX): Polycarbonate strain relief (top end connection), PVC end cap (sensor connection), nylon collar nuts, Viton O-rings, polyurethane jacket
Environmental Rating:
Top end: NEMA 6, IP67; Intermittent 100% RH
Sensor end: IP68
What’s in the box:
  • HOBO MX2001 Water Level Data Logger (consisting of a top end and sensor end connected by a cable in desired length – ordered separately)
  • Two AA 1.5 V batteries
  • 2″ well grommet
