Description
Sorotan utama
– Dukungan pita global – CN470, EU868, US915, AS923, AU915, KR920, IN865 (dapat dipilih pengguna)
– 8 saluran uplink simultan, operasi dupleks penuh atau setengah
– Opsi jaringan-server bawaan (iot-vision) atau serah terima yang lancar ke, TTN, ChirpStack, AWS IoT Core, LinkWAN, dll.
– IPv6 & Modbus-TCP siap untuk SCADA dan integrasi TI
– Kandang aluminium IP67, –40 °C hingga +85 °C, PoE+ atau pasokan 12 V DC
– Bersertifikat CE & FCC untuk pengiriman ke seluruh dunia
Kasus penggunaan umum
Parkir pintar | Pemantauan kebakaran & keselamatan | Pelacakan ternak & aset | Penginderaan suhu kabel daya | Kontrol lampu jalan | Pertanian presisi | Pemantauan lingkungan

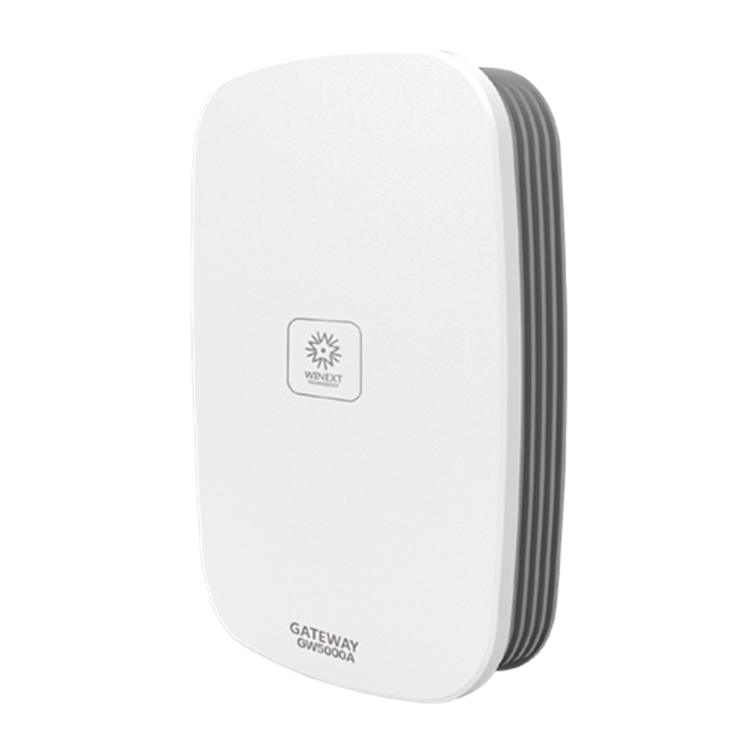

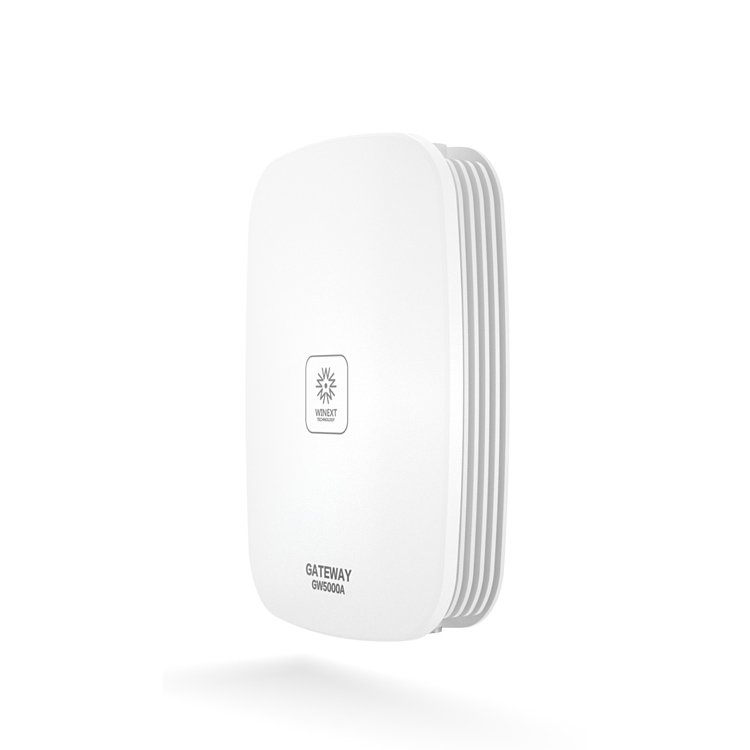

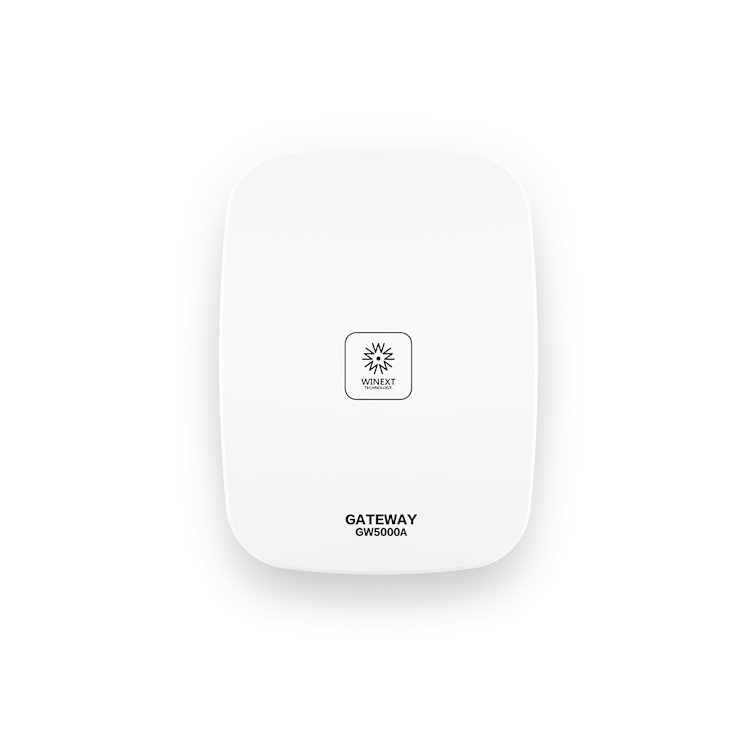

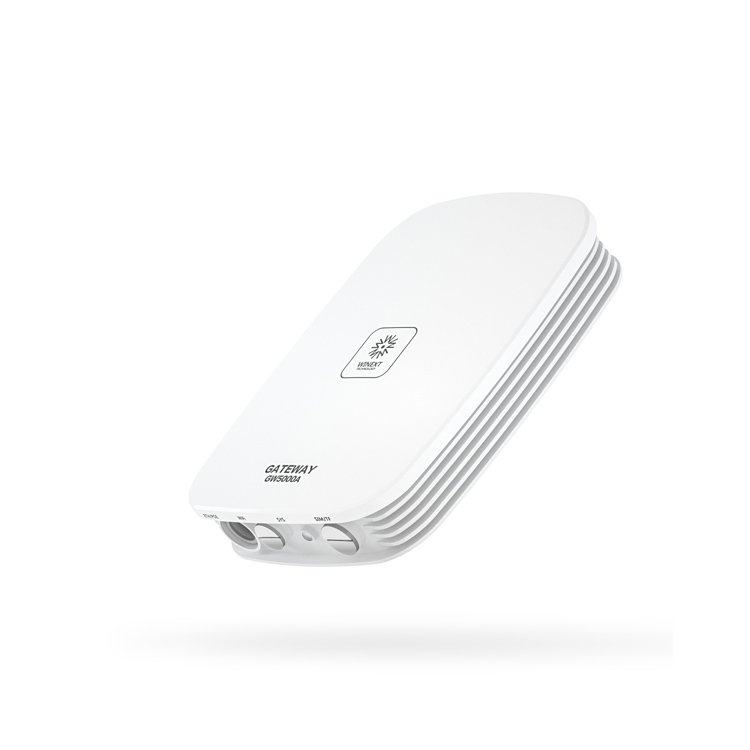

Spesifikasi Teknis GW5000A
| Technical parameter | CPU | Industrial Grade CPU operating at 400MHZ |
| Memory | 64M DDR2 RAM, 16M SPI FLASH | |
| System | Linux-3.18.27 (32-bit system,128kB L2 cache) | |
| Wireless parameter | LoRa data rate | 292bps～5.4Kbps |
| Ethernet communication rate | 100Mbps | |
| LTE communication rate | 50Mbps | |
| Working frequency | CN470~510MHz EU863~870MHz US902~928MHz AS920~925MHz AU915~928MHz KR920~923MHz RU864~870MHz IN865~867MHz |
|
| Max transmission power | 26dBm | |
| Rx sensitivity | -142dBm@SF12 (half-duplex) / -138dBm@SF12 (full-duplex) | |
| Channels | 8 Data Channels, 1 Control Channel | |
| Communication interface | 1*LAN, 1*WAN, 1*WIFI, 1*LTE module | |
| Electrical specification | Input | POE power supply with 48V input (24~48V) |
| Power Consumption | 7W | |
| Working temperature | -40℃～80℃ | |
| Working humidity | 5%～95% (no condensing) | |
| Physical parameter | Ingress Protection | IP67 |
| Dimension | 288mm × 215mm × 59mm | |
| Installation | Wall-mounted or Pole-mounted | |
| Certificate | CE / FCC | |
| Thunder protection | Optional |
Kontak Kami :
Telp/Whatsapp : 0812 1248 2471
Email : alfin@testindo.com
