Description
Features
1. The machine adopts high precision pressure displacement sensor, withhighsensitive digital valve, fast response speed, high resolution.
2. Hydraulic control adopts integrated oil servo control system, easy to operate, stable and reliable.
3. With intelligent prompting working state, servo automatic compensation, positioning, pressure-holding and other functions.
4. The test space can be adjusted at will by moving the beam, and different test
pieces can be tested
5. The range can be automatically switched, and the range is automatically selectedaccording to the load bearing size of the sample.
6. With maximum load peak hold function, overload protection and positionoverlimit protection, safer to use

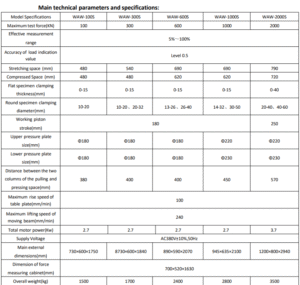

Main technical parameters and specifications:
Model Specifications WAW-100S WAW-300S WAW-600S WAW-1000S WAW-2000SMaximum test force(KN) 100 300 600 1000 2000Effective measurement range 5%～100%
Accuracy of load indication
value
Level 0.5
Stretching space (mm) 480 540 690 690 790Compressed Space (mm) 480 480 620 620 720Flat specimen clamping
thickness(mm)
0-15 0-15 0-15 0-15 0-40Round specimen clamping
diameter(mm)
10-20 10-20、20-32 13-26、26-40 14-32、30-50 20-40、40-60Working piston
stroke(mm)
180 250Upper pressure plate
size(mm)
Φ180 Φ180 Φ180 Φ220 Φ220Lower pressure plate
size(mm)
Φ180 Φ180 Φ180 Φ230 Φ230Distance between the two
columns of the pulling and
pressing space(mm)
380 400 400 450 570Maximum rise speed of
table plate(mm/min)
100
Maximum lifting speed of moving beam(mm/min)
240
Total motor power(Kw) 2.7 2.7 2.7 2.7 3.7Supply Voltage AC380V±10%,50Hz Main external
dimensions(mm)
730×600×1750 8730×600×1840 890×590×2070 945×635×2100 1200×800×2940Dimension of force measuring cabinet(mm)
700×520×1630
Overall weight(kg) 1500 1700 2400 2800 3500
