Alat Pengukur Energi UV (UV Energy Meter) LS136

Description

LS136 UV Energy Meter Features and Operation

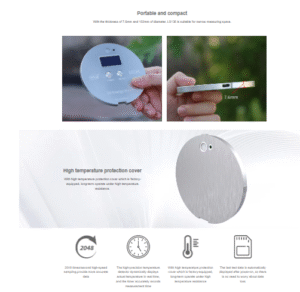

LS136 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and intensity in high pressure mercury lamp, halogen lamp and other light sources. It can be used to measure UV intensity, energy and temperature in a variety of UV curing machine, UV coating machine, exposure machine, dryer, printing machine and other equipment. The UV energy meter can be measured in narrow spaces with 7.6mm thick. Equipped with a high temperature protective cover, still operate in high temperature environment.

LS136 UV energy meter is specialized for high pressure mercury lamp halogen lamp and other light source, if you need to measure UVLED light source, please choose LS137 UV energy meter.

Parameters

Parameter	LS136 UV Meter
Spectral Range	315nm-400nm, λp = 365nm
Power Measuring Range	0-2000mW/cm²
Power Resolution	0.1mW/cm²
Energy Measuring Range	0-999999mJ/cm²
Measuring Accuracy (H is the Standard Value)	H<5mW/cm²：±0.5mW/cm² H>=5mW/cm²：±10%H, ±5% (typical)
Sampling Speed	2048 times/second
Recording Period	32 min
Power Supply	Rechargeable lithium battery 3.7V@400mAh
Display	128X64 Dot matrix OLED
Dimension	Diameter 102mm* thickness 7.6mm
Weight	136g
