Description
Pengukur energi UV ini secara bersamaan mengukur energi UV, intensitas, suhu, dan durasi penyinaran di empat pita (UVA/UVB/UVC/UVV). Alat ini cocok untuk pengujian intensitas UV dalam aplikasi seperti mesin curing, pengering, mesin pelapis, unit paparan, dan peralatan pencetakan. Alat ini juga mendukung deteksi energi UV, intensitas, dan suhu pada sumber cahaya seperti lampu merkuri, halogen, galium, besi, dan xenon.
Parameters
| Parameter | Value |
|---|---|
| Spectral Range | UVC：230nm-280nm λp = 254nm； UVB：280nm-315nm λp = 310nm； UVA：315nm-400nm λp = 365nm； UVV：395nm-445nm λp = 420nm； |
| Power Measuring Range | 0 – 2000 mW/cm² |
| Power Resolution | 0.01 mW/cm² |
| Energy Measuring Range | 0 – 999999mJ/cm² |
| Measuring Accuracy(H is the Standard Value) | H<5mW/cm²: ±0.5mW/cm² H>=5mW/cm²: ±10%H, ±5% (typical) |
| Temperature Measuring Range | -55°C – +125°C |

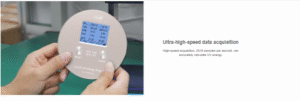

| Sampling Speed | 2048 times/second |
| Power Data Storage Interval | 32 times/second |
| Temperature Data Storage Interval | 2 times/second |
| Recording Period | 32 min |
| Power Supply | 2 AAA alkaline dry batteries |
| Display | Dot matrix LCD |
| Dimension | Diameter 120mm * thickness 13mm |
| Weight | 225g |
Features
Simultaneously measure UVA, UVB, UVC, and UVV
The intelligent UV energy meter automatically identifies the test wavelength range and simultaneously measures UV power and energy across UVA, UVB, UVC, and UVV. It allows users to monitor surface curing (UVC) and penetration curing (UVA/UVV) wavelengths, optimizing the curing process and enhancing product performance and production efficiency.
Large LCD display
The instrument features a large LCD screen to monitor temperature and UV power in real time, displaying test curves with clear maximum and minimum values.
High temperature resistant design
High-precision fast-response temperature probe that dynamically measures the actual temperature in the curing machine.
Quality assured, pass authoritative metrology inspection
Professional-grade UV energy meter, which can accurately analyze various types of UV radiation and ensure passing the inspection of the national authoritative metrology institute.
Provide powerful PC software
The instrument adopts Type-C interface, supports computer software to read detailed record data, generate data curves and print out test reports.

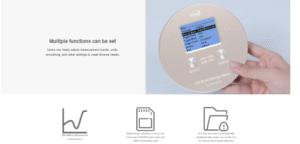

Two measurement modes
Automatic measurement mode and manual measurement mode can be switched, suitable for a variety of detection environments.
Auto Measurement Mode
The auto measurement mode accurately records curing time and displays the corresponding light intensity curve.
Manual Measurement Mode
When multiple light sources are used, the overall distribution of the UV light source can be analyzed through the power curve.
