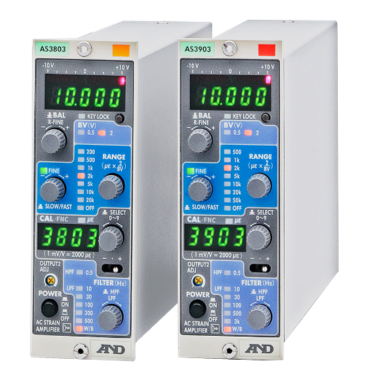

Description
Features
| ■ Sensitivitas tinggi – AS3803 |
| Sensitivitas ±10 V keluaran pada regangan masukan ±200 x 10 -6 (ketika BV = 2 V) |
| ■ Responsivitas tinggi |
| DC hingga 5 kHz – AS3903 |
| ■ Berbagai fungsi dengan pengoperasian yang sangat baik. |
| Pemeriksaan Jembatan, Kompensasi Panjang Kabel, Jangkauan Otomatis, dan Keseimbangan Otomatis dapat dilakukan dengan satu sentuhan tombol. |
| ■ Dapat dioperasikan bahkan dalam kondisi suhu ekstrem. |
| Stabilitas suhu (Titik Nol) Dalam ±0,1×10 -6 regangan/°C Kisaran suhu pengoperasian: -10°C hingga 50°C |
Functions
| ■ Bridge Check function |
|---|
| Fungsi “Bridge Check” secara otomatis mendeteksi pemutusan, hubung singkat, dan kabel putus di setiap sirkuit jembatan. Deteksi kabel yang terputus atau hubung singkat dengan mudah mengurangi waktu persiapan pengukuran dan membantu mencegah masalah pada bagian input.
|
| ■ Cable Length Correction function |
|---|
Jika jarak antara rangkaian jembatan dan penguat jauh, tegangan jembatan akan turun karena resistansi konduktor kabel. Sebelumnya, penginderaan jarak jauh dengan kabel 6 inti dan kompensasi dengan pengaturan numerik (panjang kabel, diameter kawat, dll.) digunakan. (Penginderaan jarak jauh tidak dimungkinkan dengan penguat regangan AC yang menggunakan kabel 6 inti.) Rangkaian produk ini menggunakan rangkaian kompensasi otomatis yang unik untuk mengkompensasi penurunan tegangan jembatan bahkan dengan kabel 4 inti, sehingga memungkinkan pengukuran regangan yang sangat akurat. |
| ■ Auto-range function |
|---|
| Fungsi “Rentang Otomatis” secara otomatis menyesuaikan rentang pengukuran ke tegangan keluaran yang ditentukan ketika nilai kalibrasi yang diatur dalam Kalibrator Internal diterapkan. Tegangan keluaran dapat dipilih dari 5 V, 8 V, dan 10 V. Bahkan mereka yang belum terbiasa dengan penguat regangan pun dapat dengan mudah mempersiapkannya untuk pengukuran. |
| ■ E-terminal Switching function |
|---|
| Fungsi “Pengalihan Terminal-E” mengalihkan potensi pelindung (Terminal-E) kabel sensor ke [Input COM] atau [GND] penguat, dan melakukan tindakan pelindungan yang sesuai untuk lingkungan pemasangan jembatan sensor. Jika Terminal-E tidak terhubung ke sasis transformator, dll., pengaturan sakelar ke [Input COM] akan meningkatkan efek pelindungan dan mengurangi gangguan kebisingan |
Specifications
| Item | AS3803 | AS3903 | |
|---|---|---|---|
| Noise resistant | Input noise suppression circuitry | ||
| Number of channels | 1 channel/unit | ||
| Bridge resistance | 60 to 1,000 Ω | ||
| Gauge factor | 2.00 | ||
| Bridge power supply (BV) | Voltage | 0.5 V, 2 V AC | |
| Frequency | 5 kHz sine wave | 12.5 kHz sine wave | |
| Synchronization input/output signal (OSC) | 2.5 V AC | ||
| E-terminal Connection Switching function | The Shield Wire Potential Switching switch (E-SW) can be used to switch the potential of the E-terminal (Shield Wire) of the input cable to the input common (COM) or GND (casing ground potential via protective element). | ||
| Bridge Check (BRC) function | Detects disconnections and shorts in input bridge circuits with bridge resistance of 120 Ω or more and disconnections in input cables, and displays the results on LEDs. Function can be turned ON/OFF by FNC setting. | ||
| Cable Length Compensation (CLC) function | Automatic compensation for bridge power supply voltage drop due to cable length to bridge circuit (bridge resistance 120 Ω or more). Function can be turned ON/OFF by FNC setting. | ||
| Balancing adjustment range(Auto-balance) | Resistance Deviation: ±2% (±10,000 x 10-6 strain), capacitance imbalance: Approx. 2,000 pF | ||
| Balancing adjustment accuracy | Within ±0.4 ×10-6 strain (RANGE = 200, FINE = x1, BV = 2 V) |
Within ±1.0 ×10-6 strain (RANGE = 500, FINE = x1, BV = 2 V) |
|
| Maximum input range | ±200,000 x 10-6 strain (RANGE = 20k, FINE = x2.5, BV = 0.5 V) |
±500,000 x 10-6 strain (RANGE = 50k, FINE = x2.5, BV = 0.5 V) |
|
| Voltage sensitivity | ±10 V output at ±200 ×10-6 strain (RANGE = 200, FINE = x1, BV = 2 V) | ±10 V output at ±500 ×10-6 strain (RANGE = 500, FINE = x1, BV = 2 V) | |
| Measurement range (RANGE) | 200, 500, 1k, 2k, 5k, 10k, 20k (x10-6 strain × 2/BV value), OFF | 500, 1k, 2k, 5k, 10k, 20k, 50k (x10-6 strain × 2/BV value), OFF | |
| Measuring range fine adjustment (FINE) | Continuously variable within the RANGE and adjustable with the FINE knob. Variation can be changed in two steps. | ||
| Internal Calibrator (+CAL, -CAL) | Calibration value range: ±1 to 9,999 x10-6 strain, calibration value accuracy: ±(0.5% rdg + 0.5 ×10-6 strain) | ||
| Auto-range (ARG) function | Automatic adjustment of RANGE and FINE so that the output voltage becomes the specified value when the calibration value set in the Internal Calibrator is applied. Output voltage value (OFF, 5 V, 8 V, 10 V) can be specified by the FNC setting. |
||
| Non-linearity | ±0.1%/FS | ±0.1%/FS | |
| Frequency characteristic (W/B) | DC to 2 kHz ±10% | DC to 5 kHz ±10% | |
| High-Pass Filter (HPF) | Cutoff frequency: 0.5 Hz, 2-pole Butterworth type (filter drop characteristic -12dB/oct) | ||
| Low-Pass Filter (LPF) | Cutoff frequency: 10, 30, 100, 300, 500 Hz, 4-pole Butterworth type (filter drop characteristics -24dB/oct) | Cutoff frequency: 10, 30, 100, 500, 3 kHz, 4-pole Butterworth type (filter drop characteristics -24dB/oct) | |
| Temperature stability | Sensitivity | Within ±0.05%/°C, Within ±0.2%/24h | |
| Zero-point | Within ±0.1 ×10-6 strain/°C, ±0.5 ×10-6 strain/24h | ||
| Noise | 2.0 ×10-6 strain p-p input conversion (W/B, RANGE = 200, FINE = x1, BV = 2 V, at 120 Ω bridge) |
5.0 ×10-6 strain p-p input conversion (W/B, RANGE = 500, FINE = x1, BV = 2 V, at 120 Ω bridge) |
|
| Output voltage | OUTPUT1 ±10 V ±5 mA (2 kΩ load or more), OUTPUT2 ±10 V ±10 mA (332 kΩ load or more), Operable at output resistance 0.5 Ω or less, capacitive load up to 0.1 µF. | ||
| Output adjustment | OUTPUT2 ADJ (continuously variable from 1 to 1/10 independently) | ||
| Level indication | 17-dot LED display for monitoring OUTPUT1, Green LED in the center lights up within approx. ±100 mV and LEDs on both ends blink at approx. ±10.5V or more | ||
| Digital display | 4 1/2 digit digital display for OUTPUT2 monitor, scaling available with OUTPUT2 ADJ. Decimal point position can be changed by FNC setting.Accuracy: Within ±0.05% rdg ±1 count | ||
| Key Lock function | Key lock ON/OFF of the operation panel is possible by pressing the key lock button for about 1 second (excluding the calibration value application switch (+CAL, -CAL) ) | ||
| Remote function | Rear interface connector: D-SUB, 9P, female, Mounting: #4-40 inch screw +CAL and -CAL input, BAL function [Bridge check (BRC), Line length correction (CLC), Auto range (ARG), Auto balance (resistance balance)], RANGE OFF and KEY LOCK controls are possible by external signal |
||
| Saving of setup values | Save to flash memory | ||
| Vibration resistance | 29.4m/s2 (50 Hz, XYZ each for 10 minutes) and compliant with MIL-STD-810G-514.6 | ||
| Withstand voltage | Between input terminals (A, B, C, D, E) and the output, and the case: 1 kV AC for 1 minute Between AC power input and signal input, output, and the case: 1.5 kV AC for 1 minute Between DC power input and signal input: 1 kV AC for 1 minute Between DC power input and signal output, and the case: 500 V AC for 1 minute |
||
| AC power supply | 100 to 120 V AC / 200 to 240 V AC (switchable with [AC power supply voltage switch] on the bottom) Approx. 9VA when AC100V, Approx. 11VA when AC120V, Approx. 12VA when AC240V |
||
| DC power supply | 10 to 30 V DC, 6 VA or less | ||
| Operating temperature/humidity | -10°C to +50°C, within 20% to 85% RH, with no condensation | ||
| Storage temperature/humidity | -20°C to +70°C, within 10% to 90% RH, with no condensation | ||
| External dimensions | H143 x W49.5 x D252 mm (excluding projection) | ||
| Weight | Approx. 1.4 kg | ||
