Description
Features
- Wireless communication via Bluetooth technology
- Six-month battery life at 5-minute CO2 logging rate
- Easy to deploy and offload using free HOBOconnect app
- Visual and audible high & low alarm thresholds
- Self-calibrating NDIR CO2 sensor technology ensures optimal accuracy and lower maintenance costs
- Patented connectivity technology
Specifications
Temperature Sensor
Range:
-
0° to 50°C32° to 122°F
Accuracy:
-
±0.21°C from 0° to 50°C, see manual for plot±0.38°F from 32° to 122°F, see manual for plot
Resolution:
-
0.024°C at 25°C , see manual for plot0.04°F at 77°F , see manual for plot
Drift:
-
<0.1°C per year0.18°F per year
RH Sensor*
Range: 1% to 90% RH (non-condensing)
Accuracy
-
±2% from 20% to 80% typical to a maximum of ±4.5% including hysteresis at 25°C (77°F); below 20% and above 80% ±6% typical
Resolution; 0.01%
Drift; <1% per year typical
CO2 Sensor:
Range: 0 to 5,000 ppm
Accuracy: ±50 ppm ±5% of reading at 25°C (77°F), less than 90% RH (non-condensing) and 1,013 mbar
Warm-up Time: 15 seconds
Calibration: Auto or manual to 400 ppm
Non-linearity: <1% of FS
Pressure Dependence:
-
0.13% of reading per mm Hg (corrected via user input for elevation/altitude)
Operating Pressure Range:
-
950 to 1,050 mbar (use Altitude Compensation for outside of this range)
Compensated Pressure Range:
-
-305 to 5,486 m-1,000 to 18,000 ft
Sensing Method: Non-dispersive infrared (NDIR) absorption
Response Time
Temperature:
-
12 minutes to 90% in airflow of 1 m/s12 minutes to 90% in airflow of 2.2 mph
RH:
-
1 minute to 90% in airflow of 1 m/s1 minute to 90% in airflow of 2.2 mph
CO2:
-
1 minute to 90% in airflow of 1 m/s1 minute to 90% in airflow of 2.2 mph
Logger
Radio Power:
-
1 mW0 dBm
Transmission Range:
-
Approximately 30.5 m line-of-sightApproximately 100 ft line-of-sight
Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range:
-
0° to 50°C ; 0 to 95% RH (non-condensing)32° to 122°F ; 0 to 95% RH (non-condensing)
Logging Rate: 1 second to 18 hours
Logging Modes: Fixed interval (normal, statistics) or burst
Memory Modes: Wrap when full or stop when full
Start Modes: Immediate, push button, date & time, or next interval
Stop Modes: When memory full, push button, date & time, or after a set logging period
Time Accuracy:
-
±1 minute per month at 25°C±1 minute per month at 77°F
Power Source:
-
4 AA 1.5 Volt batteries (user replaceable) or USB power source (5 V DC, 2 Watts)
Battery Life:
-
6 months, typical with logging and sampling intervals of 5 minutes or slower; 6 months or less with logging and sampling intervals faster than 5 minutes while logging CO2. Entering burst logging mode will impact battery life. With app use, battery life can be reduced by remaining connected, excessive readouts, audible alarms, and paging. Visual/audible alarms and other events can have a marginal impact on battery life.
Memor: 128 KB (84,650 measurements, maximum)

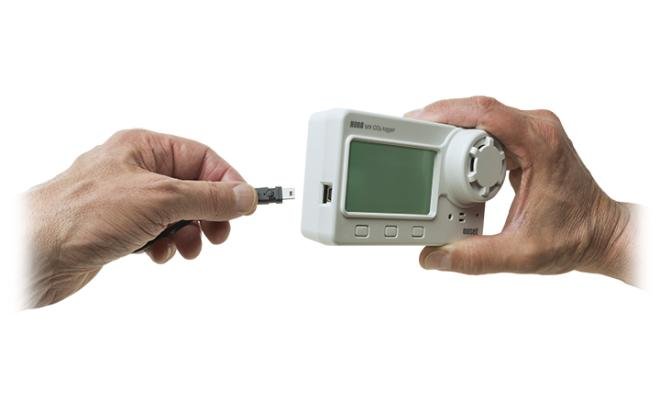

Download Type: USB 2.0 interface or via Bluetooth Smart
Full Memory Download Time:
-
20 seconds via USB; approximately 60 seconds via Bluetooth Smart, may take longer the further the device is from the logger
LCD:
-
LCD is visible from 0° to 50°C;LCD is visible from 32° to 122°F;the LCD may react slowly or go blank in temperatures outside this range
Size:
-
7.62 x 12.95 x 4.78 cm3.0 x 5.1 x 1.88 inches
Weight:
-
267.4 g9.43 oz
Environmental Rating: IP50
Notices: Per RH sensor manufacturer data sheet
What’s in the box:

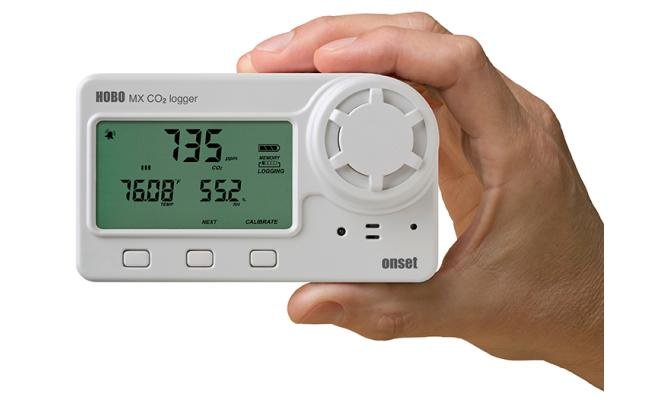

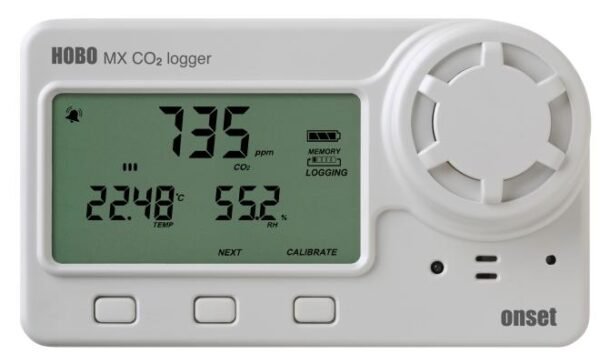

- HOBO MX1102 CO2 Data Logger
- Four AA 1.5 V alkaline batteries
