Alat Perekam Data MicroRX Station RX2106-900

Description

Features

Compact size for easy deployment
Robust, weatherproof IP66/NEMA 4X enclosure
Two power options:

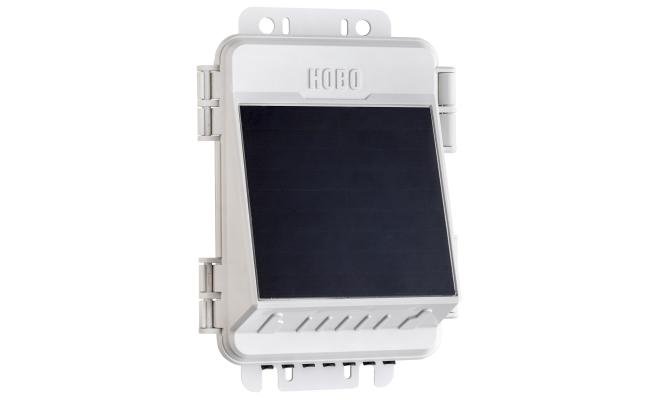

- Integrated 1.7 W solar panel with rechargeable battery pack
  - 5 W and 15 W external solar panels can be added to MicroRX Station (RX2102), MicroRX Water Level Station (RX2104) or MicroRX Station for HOBOnet (RX2106)
- User-replaceable AA lithium batteries
Inputs for five plug-and-play sensors
Option for wireless sensors using HOBOnet (RX2106 only)
Optional water level sensor input included in MicroRX Water Level Station, battery-powered (RX2103) and MicroRX Water Level Station, solar-powered (RX2104)
Built-in LCD confirms proper setup and operation

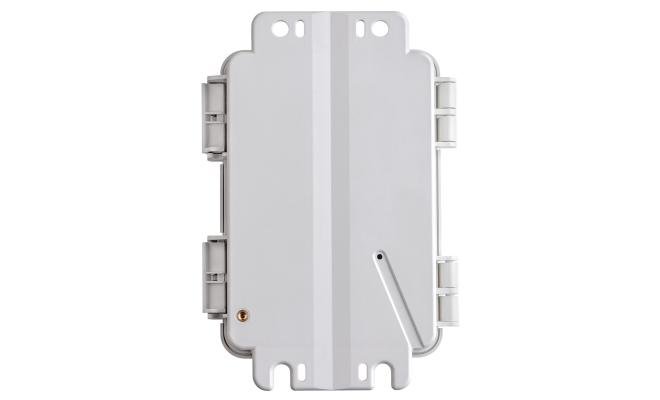

Integrated mounting tabs for use with screws, zip ties, or U-bolts
Station-side alarms, including water flow and accumulated rainfall
Up to 10-minute connection rates via 4G cellular data plans
Cloud-based monitoring and data access through HOBOlink

Specifications

Operating Range:

MicroRX Station, battery-powered (RX2101 and RX2105) and Micro RX Water Level Station, battery-powered (RX2103): -40° to 60°C (-40° to 140°F)
MicroRX Station, solar-powered (RX2102), MicroRX Water Level Station, solar-powered (RX2104) and MicroRX Station for HOBOnet, solar-powered (RX2106): -20° to 60°C (-4° to 140°F)

Smart Sensor Connectors:5

Smart Sensor Network Cable Length:100 m (328 ft) maximum

Smart Sensor Data Channels:

Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)

Logging Rate: 1 minute to 18 hours

Time Accuracy:

±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range

Battery Type/Power Source:

RX2102, RX2104 and RX2106: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
RX2101, RX2103 and RX2105: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)

Battery Life

RX2102, RX2104 and RX2106 Battery Life:

Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life.

Maximum connection rates with built-in solar panel, in full sun:

10 minute connections year round for latitudes less than ±40°
10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter

Maximum connection rates with external 5W or 15W solar panels:

10 minute connections year round, in full sun
Connection rate with external solar panels may be less if deployed in partial sun

Battery life without solar recharging, with hourly connections and
1 minute logging:

RX2102: 3 months
RX2104: 2 months
RX2106: 3 months

RX2101 and RX2103 Battery Life:

Battery life with daily connections:

RX2101: 1 year with 1 minute logging
RX2103: 1 year with 2 minute logging

Battery life with hourly connections and 1 minute logging:

RX2101: 3 months
RX2103: 2 months

Note: Deployments in areas with weak cellular strength could reduce battery life.

RX2105 Battery Life:

Runs continuously with the included AC adapter. Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes. Note: Deployments in areas with weak cellular strength could reduce battery life.

Memory: 16 MB, 1 million measurements, continuous logging

Alarm Notification Latency: Logging interval plus 2-4 minutes, typical

Enclosure Access:

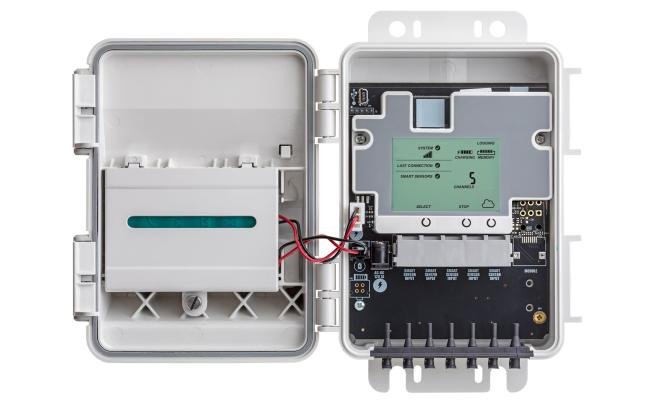

Hinged door secured by two latches with eyelets for use with user-supplied padlocks

LCD::

LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Materials:

Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish

Dimensions: 19.95 x 13.68 x 7.49 cm, 7.85 x 5.39 x 2.95 in.

Weight:

678 g

23.9 oz

Mounting:

Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws

Environmental Rating:

Weatherproof enclosure, NEMA 4X and IP66

requires proper installation of cable channel system

Wireless Radio:

GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz

Antenna: 4G LTE
