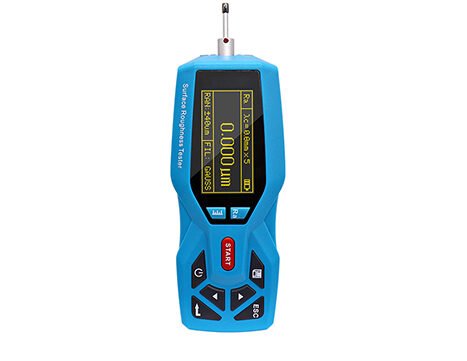

Description
Main feature
-
Desain terintegrasi elektro-mekanik: ringkas, ringan, mudah dibawa.
-
Prosesor DSP berkecepatan tinggi: pemrosesan & kalkulasi data lebih cepat, konsumsi daya rendah.
-
Rentang pengukuran luas untuk berbagai material permesinan.
-
Mendukung 14 parameter kekasaran (Ra, Rq, Rz, Rt, Rp, Rv, R3z, R3y, RzJIS, Rs, Rsk, Rku, Rsm, Rmr).
-
Layar OLED 128×64: tampilan digital atau grafik, sudut pandang bebas, mudah dibaca.
-
Tampilkan semua parameter secara intuitif — termasuk nilai, bentuk gelombang profil, dan status pengukuran.
-
Kompatibel multi-standar internasional: ISO, DIN, ANSI, JIS.
-
Baterai lithium-ion isi ulang internal, kapasitas tinggi, tanpa efek memori.
-
Indikator sisa baterai & status pengisian; dapat bekerja >20 jam per pengisian (tergantung penggunaan).
-
Penyimpanan internal besar: hingga 100 item data mentah + bentuk gelombang.
-
Jam waktu nyata (RTC): cap waktu otomatis untuk rekam & pelacakan data.
-
Hemat daya: auto-sleep & auto-shutdown.
-
Proteksi motor macet: desain perangkat keras & perangkat lunak andal.
-
Casing logam tahan industri: kokoh, portabel, andal di lingkungan keras (getaran, benturan, interferensi elektromagnetik).
-
Konektivitas ke PC & printer: cetak semua parameter atau parameter pilihan pengguna.
-
Aksesori opsional (sensor permukaan lengkung, sensor lubang, stand ukur, pelindung sensor, batang ekstensi, printer, software analisis).
Technical Parameters
| Name | Content | ||
| Measurement Range | The Z axis (vertical) | 160μm | |
| The X axis (horizontal) | 17.5mm | ||
| Resolution ratio | The Z axis (vertical) | 0.01μm/±20μm | |
| 0.02μm/±40μm | |||
| 0.04μm/±80μm | |||
| Measurement item | Parameter | Ra Rz==Ry(JIS) Rq Rt==RmaxRp Rv R3z R3y Rz(JIS)
Rs Rsk Rku Rsm Rmr |
|
| Standard | ISO,ANSI,DIN,JIS | ||
| Graphic | Material ratio curve | ||
| Filter | RC,PC-RC,Gauss,D-P | ||
| The sampling length(lr) | 0.25,0.8,2.5mm | ||
| Assessment length（ln） | Ln= lr×n n=1~5 | ||
| Sensor | Principle | The displacement differential inductance | |
| Stylus | Natural Diamond, 90B cone angle, 5μm tip radius | ||
| Force | <4mN | ||
| Skid | Ruby,Longitudinal radius 40mm | ||
| Traversing speed | lr=0.25, Vt=0.135mm/s | ||
| lr=0.8, Vt=0. 5mm/s | |||
| lr=2. 5, Vt=1mm/s | |||
| Return, Vt=1mm/s | |||
| Accuracy | No more than±10% | ||
| Repeatability | No more than 6% | ||
| Power supply | Built-in3.7VLithium ion battery,Charger :DC5V,800mA/3hour | ||
| Working Time | More than 20 hours | ||

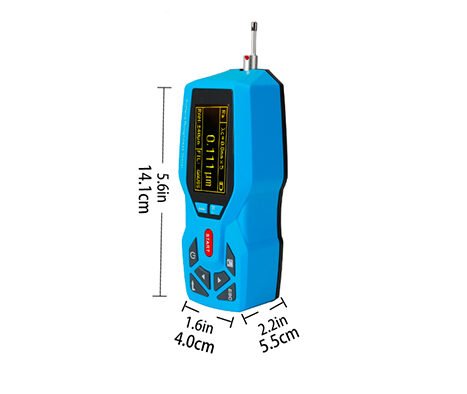

| Outline dimension L*W*H | 158*63.5*46mm | ||
| Weight | About 400g | ||
| Working Environment | Temperature:- 20℃ ~ 40℃Humidity:< 90% RH | ||
| Store and Transportation | Temperature:- 40℃ ~60℃Humidity:< 90% RH | ||
Standard Configuration
| Number | Name | Quantity | Remarks |
| 1 | Main Unit | 1 | |
| 2 | Sensor | 1 | Precision parts |
| 3 | Adjustable Support | 1 | |
| 4 | Calibration block | 1 | |
| 5 | Block bracket | 1 | |
| 6 | Charger | 1 | |
| 7 | USB charging cable | 1 | |
| 8 | Operating manual | 1 | |
| 9 | Certificate | 1 | |
| 10 | Guarantee card | 1 | |
| 11 | Instrument container | 1 | |
| 12 | Software | 1 |
Optional configuration

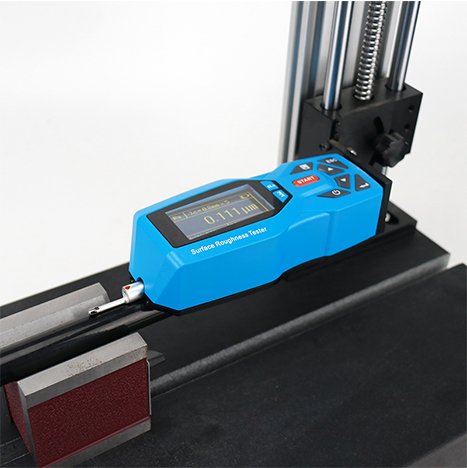

| JITAI55 | -Extension rod. Used to extend length of sensor when testing deep hole (55mm) |
| JITAI90 | –Right angle measuring mechanism. |
| JITAI100 | –standard sensor, plane & shaft & inner surface of hole>6mm, depth <22mm |
| JITAI120 | –small hole sensor, cylindrical& plane &inner surface of hole>2 mm, depth <9mm |
| JITAI110 | –sensor for curved surface & plane, cylindrical, curvature radius>3 mm |
| JITAI131 | –sensor for deep groove, cylindrical & plane & groove width>3 mm, depth<10mm |
| JITAI520 | -Metal(Al)working platform, elevating, convenient and stable for test process. |
| JITAI620 | -Marble substrate working platform, elevating, V groove, high accuracy to test tiny work piece. |
| Roughness comparison block | High quality comparison block of surface roughness
Strict anti-rust treatment process 27 comparison block/set |
| Mini Pinter | External printer |
Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 37 × 30 × 12 cm |
