Description
Features
- Portabel & Tahan Kondisi Berat – Casing plastik kompak, cocok untuk lingkungan kerja keras
- Pengujian di Segala Arah (360°) – Termasuk posisi terbalik
- Rentang Pengukuran Luas – Semua material logam, dengan konversi langsung ke berbagai skala:
HL • HB • HV • HRA • HRB • HRC • HS - Layar LCD Besar + Backlight EL – Tampilkan semua fungsi dan parameter
- Memori Kapasitas Besar – Simpan hingga 100 grup data
- Kalibrasi Perangkat Lunak – Mudah dan cepat
- Komunikasi Data – RS232 ke PC + dukungan printer mikro
- Software PC (DataPro) – Untuk manajemen data dan laporan
Technical Specifications
| Parameter | Nilai |
|---|---|
| Metode | Leeb (HL) |
| Rentang Ukur | 170–960 HLD |
| Konversi Skala | HL, HB (19–651), HV (80–1042), HRC (17.9–69.5), HRB (13.5–101.7), HRA (59.1–88), HS (30.6–102.6) |
| Akurasi | ±6 HLD |
| Arah Pengujian | 360° (segala posisi) |
| Memori Data | 100 grup (32 kali benturan per grup) |
| Display | LCD segmen + backlight |
| Catu Daya | 2 baterai AA (3V) |
| Durasi Operasi | ±100 jam (tanpa backlight) |
| Antarmuka | RS232 |
| Printer Mikro | Didukung (opsional) |
Main Application
-
Rongga cetakan (die cavity)
-
Bearing dan komponen presisi
-
Analisis kegagalan bejana tekan & steam generator
-
Benda kerja besar dan berat
-
Mesin yang telah terpasang permanen
-
Permukaan ruang sempit (hollow space)
-
Identifikasi material di gudang logam
-
Pengujian cepat pada area luas & multi-titik

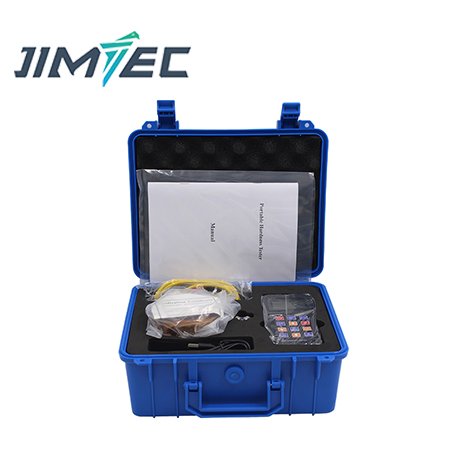

Standard Configuration
| No. | Item | Quantity | Remarks | |
| Confi. | 1 | Main unit | 1 | |
| 2 | D type impact device | 1 | With cable | |
| 3 | Standard test block | 1 | ||
| 4 | Cleaning brush (I) | 1 | ||
| 5 | Small support ring | 1 | ||
| 6 | Alkaline battery | 2 | will not put in the package | |
| 7 | Manual | 1 | ||
| 8 | Package case | 1 |
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 33 × 27 × 18 cm |
| Measuring range | (170-960)HLD,(17.9-69.5)HRC,(19-651)HB,(80-1042)HV,(30.6-102.6)HS,(59.1-88)HRA,(13.5-101.7)HRB,also can customized |
| Measuring direction | 360° |
| Accuracy | ±6HLD |
| Hardness Scale | HL、HB、HRB、HRC、HRA、HV、HS |
| Display | segment LCD |
| Data memory | max. 100 groups(relative to impact times 32~1) |
| Working voltage | 3V(2 AA size alkaline battery) |
| Communication interface | RS232 |
| Continuous working period | about 100 hours(With backlight off) |
