Description
Features
- LCD 128×64 – Tampilan jelas dengan menu berbahasa Inggris
- Konversi Multi-Skala – HV, HB, HRC, HRB, HRA, HS
- Konektivitas USB 2.0 – Transfer data, pengaturan parameter, dan pencetakan laporan
- Casing Logam Tertutup – Tahan getaran, guncangan, & interferensi elektromagnetik
- Kompatibel dengan 7 Jenis Probe – Tanpa kalibrasi ulang, identifikasi otomatis jenis probe
- Penyimpanan Besar – Hingga 600 grup data (32–1 kali benturan per grup)
- Alarm Batas Atas & Bawah – Untuk pengujian batch
- Lampu Latar (Backlight) – Memudahkan penggunaan di kondisi cahaya redup
- Kalibrasi Perangkat Lunak – Untuk akurasi hasil uji
- Tambahan Material “Cast Steel” – HB dapat langsung terbaca dengan probe D/DC
- Printer Eksternal (Opsional) – Cetak hasil uji sesuai kebutuhan
- Software PC – Analisis data lanjutan untuk kontrol kualitas dan manajemen
Main Application
- Rongga cetakan (die cavity)
- Bearing & komponen presisi
- Analisis kegagalan bejana tekan, turbin uap
- Benda kerja besar & berat
- Mesin yang terpasang permanen
- Permukaan ruang sempit (hollow space)
- Identifikasi material di gudang logam
- Pengujian cepat multi-titik untuk benda besar
Technical Specifications
| MeasuringRange | (170-960)HLD ,(19-651)HB,(13.5-101.7)HRB,(17.9-69.5)HRC,(59.1-88)HRA,(80-1042)HV,(30.6~102.6)HS,also can customized |
| Impact Directions | Up, down, horizontal, slanting up, slanting down |
| Tensile Strenght | 374 to 2652 N/m 2 |
| MeasuringMaterials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel |
| Hardness Scales | HL, HB, HRB, HRC, HRA, HV,HS. |
| Standards | ASTM A956,DIN50156-1,GB/T17394-1998 |
| Display | 128*64 digital matrix LCD |
| Memory | 600group(32 every group) |
| Work Voltage | 3V( 2 AA alkaline batteries) |
| Interface Port | USB2.0 |

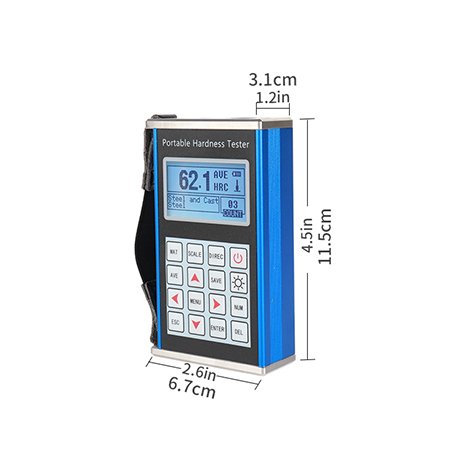

| Dimensions | 125mm*71mm*27mm |
| Weight | 0.3KG |
| ContinuousWorking Period | 200 hours (with backlight off) |
Standard Configuration
| No. | Item | Qty. | |
| Standard Configuration |
1 | Main body | 1 |
| 2 | D type impact device | 1 | |
| 3 | Test block with HLD value | 1 | |
| 4 | Cleaning brush (I) | 1 | |
| 5 | Instruction manual | 1 | |
| 6 | Warranty card | 1 | |
| 7 | Small supporting ring | 1 | |
| 8 | Screwdriver | 1 | |
| 9 | Certificate of conformity | 1 | |
| 10 | Instrument box | 1 |
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 30 × 26 × 16 cm |
| Measuring Range (mm) | (170-960)HLD ,(19-651)HB,(13.5-101.7)HRB,(17.9-69.5)HRC,(59.1-88)HRA,(80-1042)HV,(30.6~102.6)HS,also can customized |
| Impact Directions | Up, down, horizontal, slanting up, slanting down |
| Tensile Strenght | 374 to 2652 N/m 2 |
| Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel |
| Hardness Scales | HL, HB, HRB, HRC, HRA, HV,HS |
| Display | 128*64 digital matrix LCD |
| Work Voltage | 3V( 2 AA alkaline batteries) |
