Description
Features:
1. Safety position and experimental position height arbitrary lock.
2. Automatic protection when exceeding the maximum load, software limit andelectronic limit double protection.

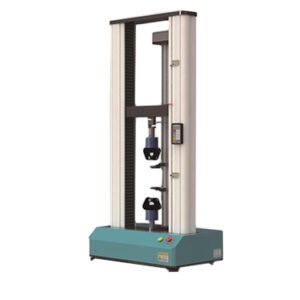

Specification Model WDW-10 WDW-20
Control method Microcomputer computer control
Maximum test force (KN) 10 20
Accuracy grade Level 1 (can be customized to 0.5 on request)
Test force measurement range 1% to 100% FS throughout without graduation
Relative error of test force value ±1% or less
Test force resolution 1/±300000 of the maximum test force with constant
resolution throughout
Deformation measurement range
(FS)
0.2%～100%
Relative error of deformation value Within ±0.5% of indicated value
Deformation resolution 1/±300000 of the maximum deformation
Relative Error of Displacement
Value
Within ±0.5% of indicated value
Displacement resolution (µm) 0.025
Force control rate adjustment range
(FS/S) 0.01～5%
Relative error of force control rate Within ±1% of the set value
Deformation rate adjustment range
(FS/S) 0.02～5%
Relative error of deformation
control rate
Within ±1% of the set value
Crossbar speed adjustment range
(mm/min) 0.01～500
Constant force, constant
deformation, constant
displacement control range (FS)
1%～100%
Constant force, constant
deformation, constant
displacement control accuracy
Within ±1% of the set value when the set value is
<10%FS; within ±0.1% of the set value when the set
value is ≥10%FS
Effective stretching space (without
clamps) (mm)
800
Effective test width mm 400
Power supply power kW 0.4
Supply Voltage AC220V±10% ，50Hz
Dimension (mm) 800×450×1600
Weight (kg) 190
