Description

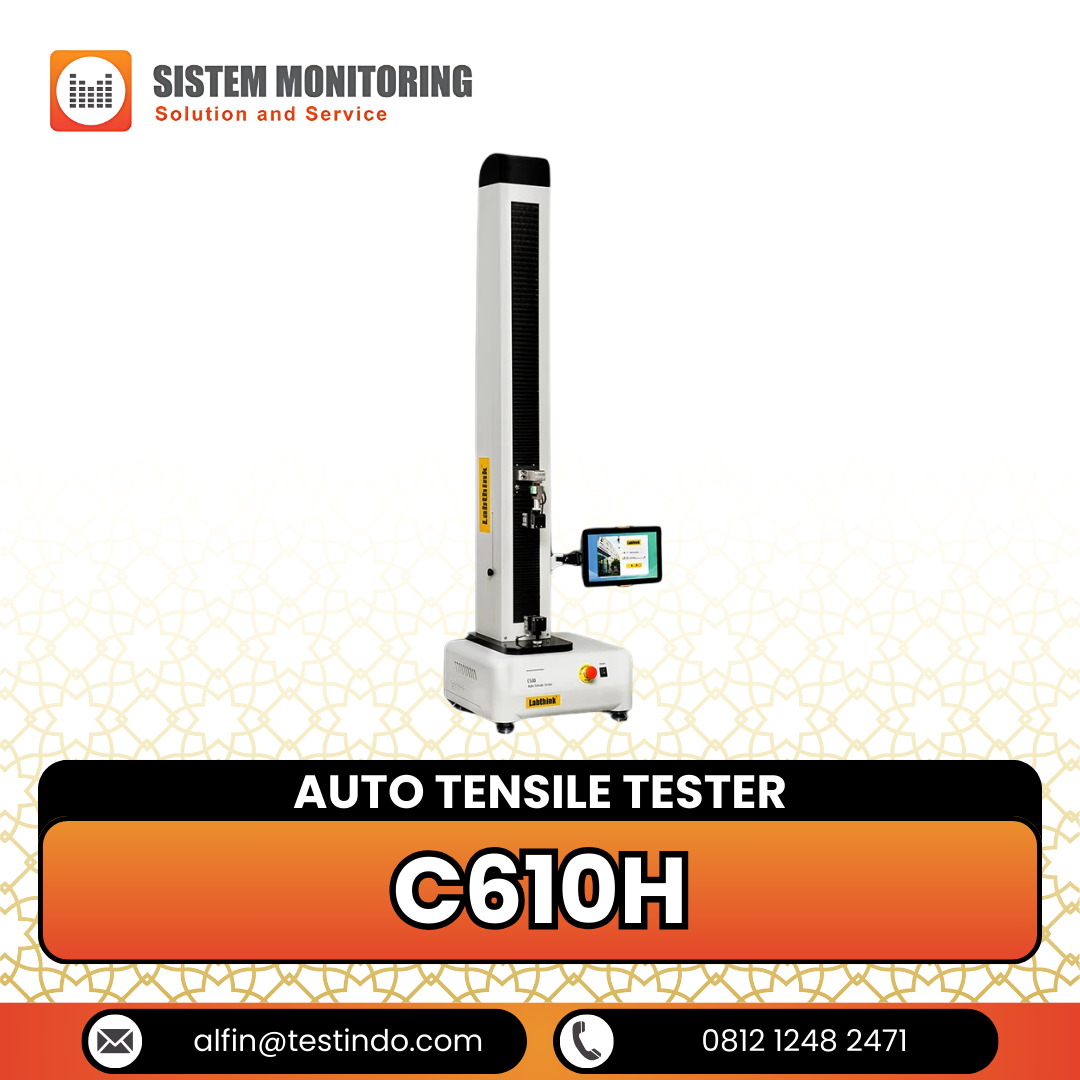

C610H Auto Tensile Tester secara profesional dapat digunakan untuk pengukuran tarik, pengelupasan, deformasi, robek, penyegelan panas, perekat, gaya tusukan, gaya bukaan, gaya tarik, dan gaya pembuka kecepatan rendah serta sifat-sifat lain dari film plastik, bahan komposit, bahan kemasan lunak, tabung fleksibel plastik, perekat, pita perekat, stiker label, plester medis, kertas pelepas, film pelindung, tutup gabungan, aluminium foil, diafragma, lembaran belakang, kain bukan tenunan, karet dan kertas, dll.
Product FeaturesNote1
Professional Test Modes to Meet Various Testing Demands
- Multiple independent test modes including tensile test, peel test, tearing test, heat seal test, tensile test at fixed elongation, and compression test, etc. at users’ choice
- The instrument supports bidirectional testing modes and test speed can be adjusted freely
- Intelligent designs of over-travel protection, overload protect and automatic position reset guarantee safe test operation of the users
Excellent Testing Mechanism & Improved Test Accuracy
- Force measuring system is supplied by top global supplier, which ensures the testing accuracy of better than 0.5% of full scale and guarantees accurate test results and good repeatability. Multiple test ranges can be selected freely.
- Servo control system powered by top global supplier and the patented high-precision ball screw multi-point positioning technology provide displacement accuracy of better than 0.5% of full scale and infinitely variable speed, facilitate the instrument with simplified and stable operation.
- Global renowned brand pneumatic control system supports pneumatic specimen clamping, which avoids the specimen slipping and guarantees the accuracy of test data
High-end, Secure and Easy-to-Use Embedded Computer-controlled System
- Large size touch screen tablet for better viewing and easy operation
- Brand new software and system provide smooth and simplified operating experience
- The system supports displaying and comparison analysis of group of test data as well as unit conversions of test results.
- Labthink’s unique data security design by separating the test data from the computer, totally avoids the system software malfunctions caused by computer virus or faulty operations, conforms to the requirements for data traceability of China GMP (optional).
- The instrument is equipped with USB ports and Internet ports for convenient data transmission.
- Unique DataShieldTM system supports centralized management of test data and can be connected to other information management system.
Test StandardNote1
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, QB/T 2358, QB/T 1130
Applications
C610H is equipped with more than 100 grips for tests of more than 1000 materials. Customization is available for special material tests. Examples of instrument applications:
| Basic Applications | |
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Extended Applications (Additional Accessories Required) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical SpecificationsNote2
| Specifications | C610H Auto Tensile Tester |
|---|---|
| Load Cell Capacity | 500 N (standard) 50 N, 100 N, 250 N, 1000 N (optional) |
| Accuracy | ±0.5% of indicated value (2%FS~100%FS) ±0.01%FS (0% ~ 2%FS) |
| Resolution | 0.001 N |
| Test Speed | 0.05 ~ 500 mm/min |
| Speed Accuracy | ±0.5% of indicated value (1%~100% of maximum speed) |
| Number of Specimens | 1 |
| Specimen Width | 30 mm (Standard Grip) |
| 50 mm (Optional Grip) | |
| Clamping Way | Pneumatic Specimen Clamp |
| Gas Supply | Air (outside of supply scope) |
| Gas Supply Pressure | 0.5 MPa~ 0.7 Mpa (72.5psi～101.5psi) |
| Stroke | 1000 mm |
| Instrument Dimension | 500 mm (L) × 520 mm (W) × 1900 mm (H) |
| Power Supply | 220VAC±10% 50Hz / 120VAC±10% 60Hz |
| Net Weight | 110 kg |
Configurations
- Standard Configurations
- Instrument, Professional Software, Tablet, Pneumatic Sample Grips
- Optional Parts
- Standard Pressure Roller, Test Plate, Sample Cutter, Customized Grips, Laser Printer, Air Compressor, Computer System required by GMP, DataShieldTM Note3
- Note
- 1. The gas supply port of this instrument is Φ4mm PU Tubing;
2. Customers need to prepare gas supply.
Note 1: The described test standard, applications and product features should be in line with Technical Specifications.
Note 2: The parameters in the table are measured by professional operators in Labthink laboratory under strictly controlled laboratory conditions.
Note 3: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be configured as required.
