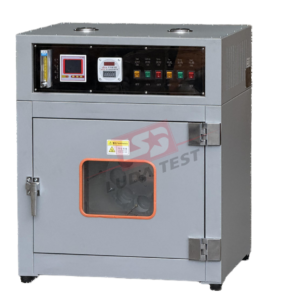

Alat Uji Oven Film Aspal Rotary Asphalt Rotary Film Oven Type 85

Alat Uji Oven Film Aspal Rotary Asphalt Rotary Film Oven Type 85 Instrumen ini cocok untuk mengukur perubahan kinerja aspal semipadat di bawah pengaruh pemanasan dan udara, dan dapat memeriksa kinerja penuaan aspal dalam waktu singkat. Produk ini sesuai dengan standar JTJ052-2000 dari Kementerian Komunikasi Republik Rakyat Tiongkok, dan dirancang dan diproduksi dengan mengacu pada standar JIS Jepang untuk oven film putar.

Description

Features:
The controller adopts integral saturation circuit, digital display temperatureandtime control, and the temperature time can be adjusted accordingtorequirements. The most advanced permanent magnet synchronous motor and speedchangerare installed at the rear of the whole machine, so that the working turntablecanrotate reliably under the technical requirement of 15 revolutions per minute.

Technical Parameters:
Heating wire power kW: 2
Number of heating wires: 2
Working temperature °C: 163±0.5
Maximum temperature ℃: 200
Fan: Squirrel cage
Fan speed r/min: 2800±5%
Air volume L/min: 4
Nozzle diameter mm: 1
Sample bottle size (diameter × diameter × height) mm: Φ32×Φ63×140
Rotary brick number r/min: 15±0.2
The number of sample bottles that can be loaded: 8
Total power kW: 2.5
Power supply voltage: AC220V±10%
Studio size mm: 450×450×420
Dimensions mm: 680×800×1270
Weight kg: 120
