Description
Features:

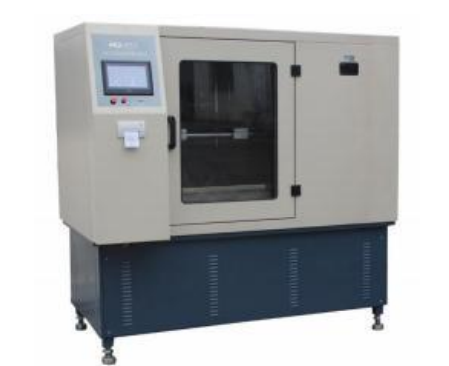

This machine adopts the rutting tester produced by international contemporarytechnology, which has reliable performance, high measurement andcontrol
precision, and convenient operation; it can be used for water immersionexperiments.
Technical Parameters:
Rolling speed of roller: 42±1 times/min (one way)
Test trolley movement distance mm: 230±10
Roller and rubber hardness (international standard hardness): 78±2 (60°C)
Contact pressure Mpa between roller and test mold: 0.7±0.05 (60°C), adjustableto0.8-0.9
Die size mm: 300×300×50 (standard), which can be used for rutting test onspecimens with a thickness of 30- 100mm. Measuring range of displacement mm: 0-30
Displacement measurement accuracy mm: less than ±0.01
Rutting test time min: usually 60
The temperature control range in the incubator (can be set arbitrarily) ℃: roomtemperature 60, control accuracy ± 0.5
Overall dimensions of the whole machine mm: 1330×815×1430
