Description
Indikasi alarm tekanan tinggi
Alarm lampu merah jika terjadi kelainan tekanan tinggi positif atau negatif; katup gas masuk Φ8.
Fungsi IO
Proses mulai-berhenti dilakukan dengan menghubungkan kabel input eksternal ke ground.
Mencegah ESD dan ESA saat menangani pencetakan.
Mencegah bagian resin.
Instalasi mudah
Sudut pemasangan baja tahan karat disediakan untuk mengakomodasi berbagai macam lingkungan pemasangan.

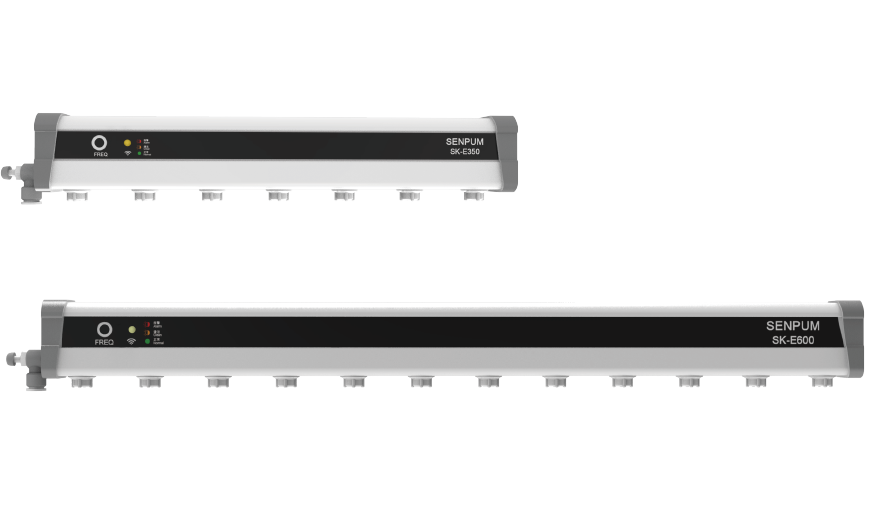

Products Lineup
| Model | SK-E350 | SK-E400 | SK-E500 | SK-E600 | SK-E800 | SK-E1000 | SK-E1100 | SK-E1200 | SK-E1300 | SK-E1500 | SK-E1800 | SK-E2000 | SK-E2200 | SK-E2500 | SK-E2800 | SK-E3000 |
| Effective length (mm) | 250 | 300 | 400 | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1400 | 1700 | 1900 | 2100 | 2400 | 2700 | 2900 |
| Pin spacing (mm) | 50 | |||||||||||||||
Catatan: Panjang batang udara eliminasi statis dapat disesuaikan sesuai kebutuhan
POE power supply + power cord
| Appearance | Cable length | Model |
 |
1.8 m | OW-SKE1800 |
| 3 m | OW-SKE3000 | |
| 5 m | OW-SKE5000 | |
| 10 m | OW-SKE10M | |
| 15 m | OW-SKE15M |
Network port communication cable (sold separately)
| Appearance | Cable length | Model |
 |
2.5 m | OW-SKE-TP2500 |
| 5 m | OW-SKE-TP5000 | |
| 10 m | OW-SKE-TP10M |
Nozzle (sold separately)
| Appearance | Model |
 |
OW-SKE001 |
Bracket
| Appearance | Model |
 |
OW-SKE101 |
 |
OW-SKE102 |
Technical Specifications
Main unit general specifications
| Ionic balance | ±30 V |
| De-static speed | ≤2 s |
| Input voltage | DC 24 V |
| Output voltage | ±4000 V to ±7000 V |
| Rated power | 10 W |
| Rated current | ＜600 mA |
| Voltage operating mode | Pulse AC |
| Transmitter electrode | Tungsten |
| Discharge structure | Resistance coupling |
| Frequency setting | 55 Hz |
| Recommended installation distance | 100-1000 mm |
| Operating air pressure | ≤0.6 MPa |
| Deactivation range | *300*1000 mm |
| Alarm indication | Available |
| Communication function | RS485 |
| Signal output | Collector open circuit 50 V/100 mA |
| Airflow pressure | ≤0.6 MPa |
| With throttle valve gas source connector | G1/8 for Φ8 pipe diameter |
| Ambient temperature | 0 to 50 °C |
| Ambient humidity | ＜70 % |
| Bar material | Flame retardant PVC, AL, SUS |
| Cable | OW-SKE1800 (standard) |
