Description
Features:
1. Single-arm design, cementitious sand special models.
2. Safety position and experimental position height arbitrary lock.
3. Automatic protection when exceeding the maximum load, software limit andelectronic limit double protection.
4. One button automatic operation, full touch screen control, can realizepositioning and automatic return.
Main technical parameters and specifications:

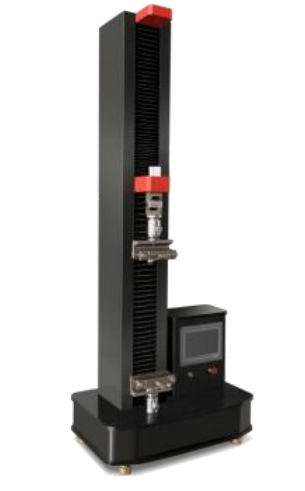

1. Model: WDW-S10
2. Control mode:screen control
3. Maximum load (KN): 10
4. Precision grade: 1 grade
5. Relative error of the test force value: ±1% or less
6. Test force resolution: 1/±300000 of the test force
7. Deformation measurement range:0.5%-100%FS
8. Cross-beam speed adjustment range (mm/min)：0.01～500
9. Effective tensile space (mm)：800
10. Effective test width (mm)：100
11. Power supply: 220V±10%,0.4kW
