Description

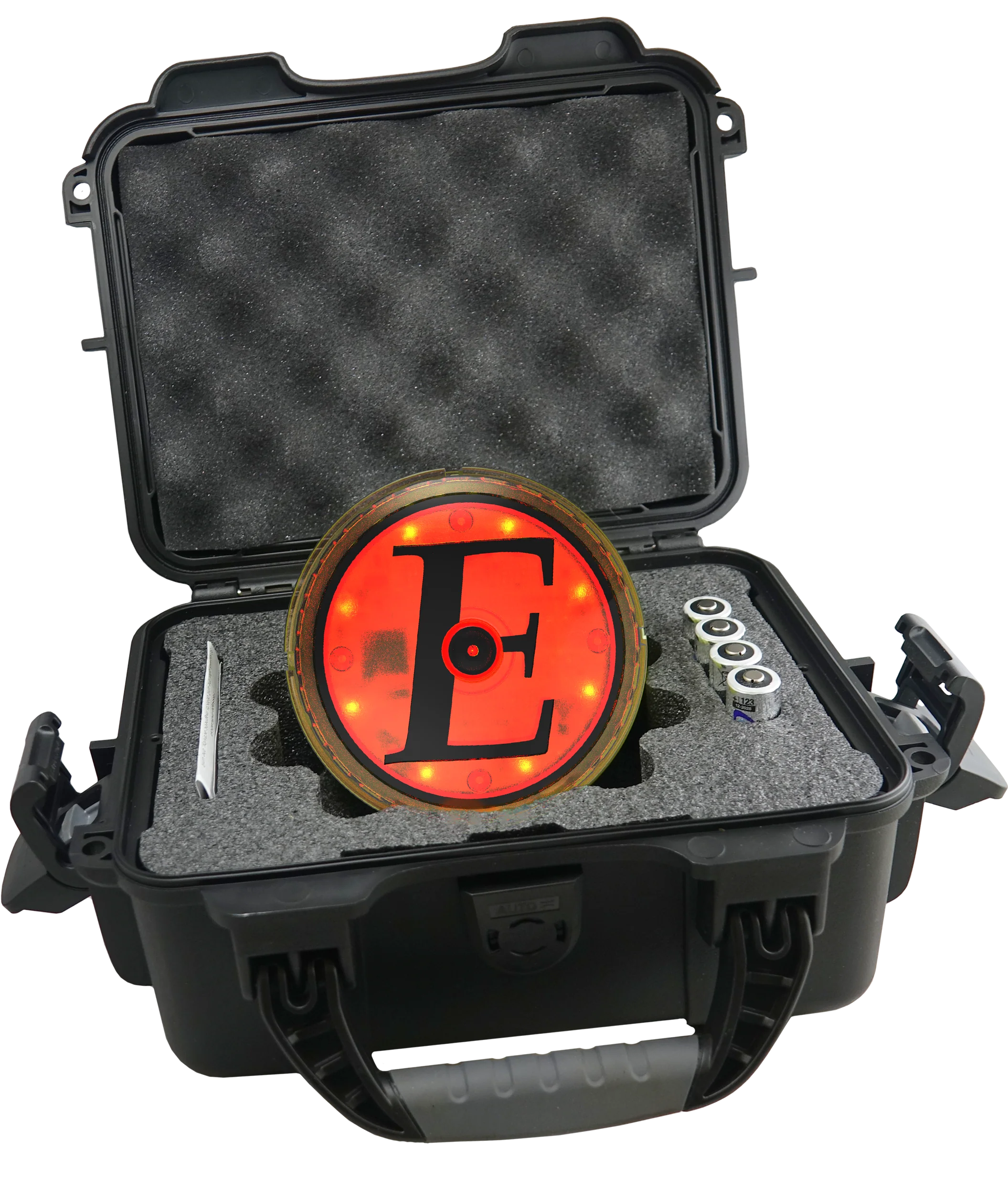

NIPS Unit Includes:
- N.I.P.S. unit
- (2) sets of lithium CR123 batteries
- Instruction card
- High impact, O-Ring sealed watertight carrying case
Purpose
The purpose of the NIP S is to be able to get an indication when the pig passes
a particular point inside the line. Generally used at launchers, receivers and
valve sites where the pipe is exposed. The pig will require magnets to trigger
the N.I.P.S. Mfl tools would be easily seen, as they already have very strong
magnets. For other types of tools, a signaling magnet (provided by Enduro or
others) would be installed in the pig.
Placement
The unit should be mounted directly to the pipe at any clock position with the
highest visibility. Note: Keep the unit as far away as possible from external magnetic
and electric fields. Failure to do so will cause a false passage indication on the unit
Operation
• To turn on the unit, depress the power button. It will light up to indicate it is
on and will go into idle mode.
• When a pig passage is detected, the unit will flash for 30 seconds and then
blink once every 3 seconds until it is reset or turned off. Note: The pig must
be equipped with a strong enough magnet to trip the unit’s sensor.
• Cycle power to reset.
Battery Life
Batteries should last 36 hours.There is a low battery indicator that lets you
know when there are 2-3 hours of remaining battery life.
