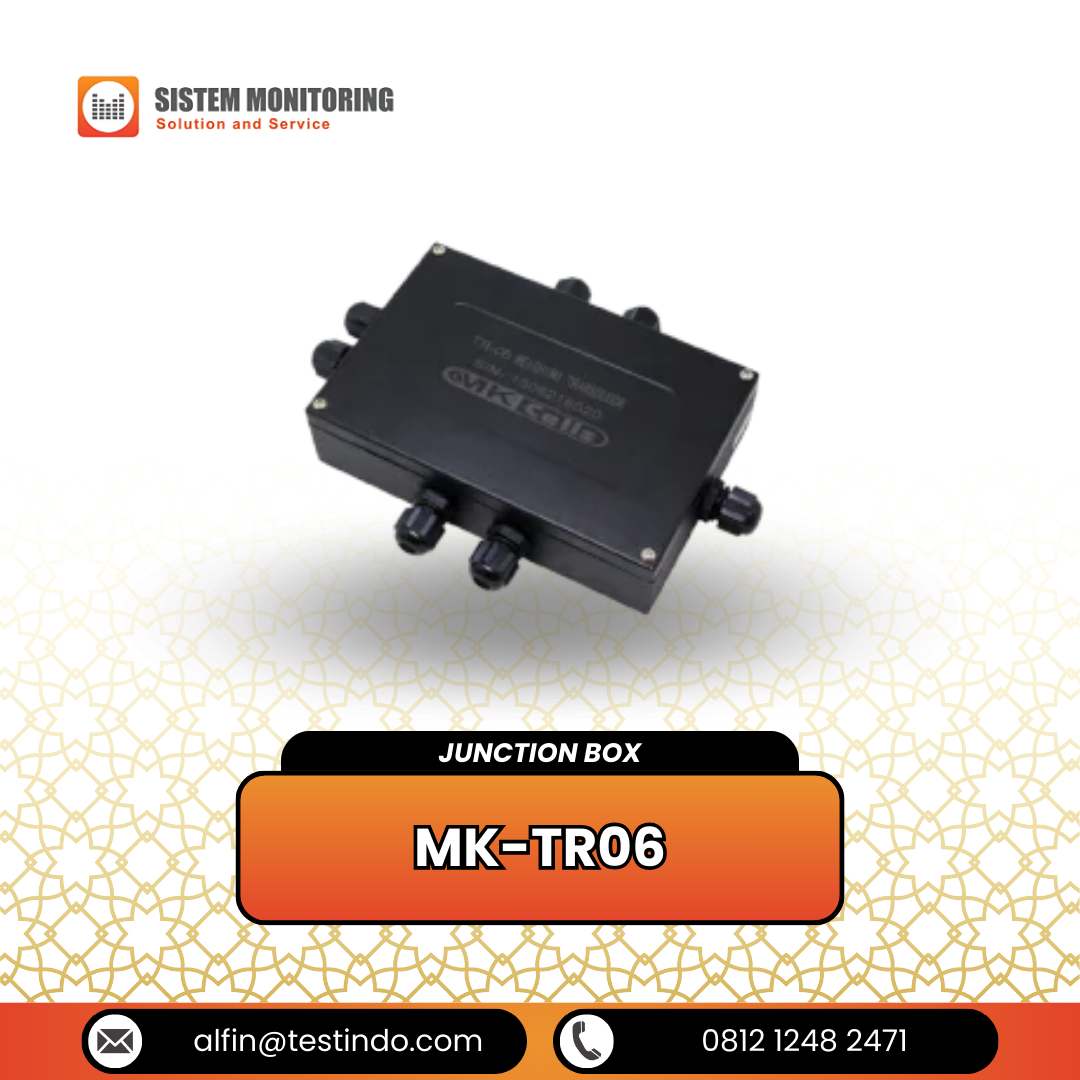

Junction Box MK-TR06

Junction Box MK-TR06

The MK-TR 06 Type Weight Transmitter is a newly launched product for industrial control or other applications that require an analog output. Its design takes into account practical applications, ensuring long-term stability and a wide operating temperature range.

FEATURES:

  • Can drive 6 Ge 350 Ω analog sensors
  • Maximum A/D pulses: 1,000,000
  • Update rate: 15 times per second
  • Selectable analog output types: 4~20 mA, 0~20 mA, 0~24 mA, 0~5 V, 0~10 V
  • High precision, high resolution [sigma-type A/D converter]
Category:

Description

Rated capacities 30 t Temperature effect sensitivity ±0.02%F.S10°C
Rated output 30000 Temperature operating -30°C~+70°C
Combine error ±0.02%F.S Maximum safe overload 150%F.S
Creep (30min) ± 0.02%F.S Excitation, recommended 9-12V DC
Zero balance ±0.1%F.S Excitation, maximum 20V DC
Communication baud rate 9600 BPS Protection class IP 68
Insulation resistance ≥ 2000MΩ Digital refurbishing Frequency : 15
TC SPAN ± 0.02%F.S/10°C Material Alloy steel

ㅤ

Parameter Specification
Sensor excitation voltage DC 5V
Maximum number of sensors Can drive 6 Ge 350Ω analog sensors
Range signal range 40mV
Minimum dynamic range 2mV
Current Output Maximum load resistance 500 ohms
Output voltage Minimum load resistance of 10,000 ohms
Analog Output Resolution 1/10000
Nonlinear <0.1 the FS
Weight Transmitter supply voltage range 15-24VDC, maximum power consumption of 5 watts
Use temperature -30°C ~ 60°C, humidity of 10% RH ~ 95% RH, non-condensing
Storage temperature -40°C ~ 85°C, humidity of 10% RH ~ 95% RH, non-condensing
ㅤ
