Description
ㅤ
ㅤ
Specification |
Details |
|---|---|
| Rated capacities (Emax) | 30t |
| Rated Output | 1.8004 mV/V |
| Accuracy class | C3 |
| Zero balance | ±1%F.S |
| TC ZERO | ±0.02%F.S/10°C |
| TC SPAN | ±0.02%F.S/10°C |
| Input resistance | 752.2 Ω |
| Output resistance | 701.2 Ω |
| Insulation resistance | ≥5000MΩ |
| Temperature, compensated | -10°C ~ +40°C |
| Temperature, operating | -30°C ~ +70°C |
| Maximum safe overload | 120%F.S |
| Ultimate overload | 200%F.S |
| Excitation, recommended | 10-12V DC |
| Excitation, maximum | 15V DC |
| Protection class | IP68 |
| Construction | Alloy Steel |
| Cable – Length | 16m |
| Cable – Diameter | Φ 6mm |
ㅤ

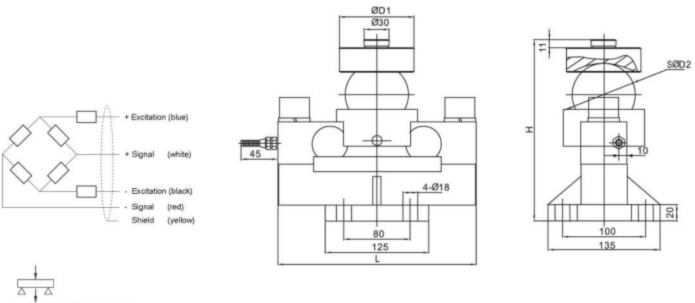

Rated Load (t) |
5 |
10, 15, 20, 25, 30 |
40 |
|---|---|---|---|
| D1 | 68 | 85-88 | 88 |
| D2 | 50.8 | 76.2 | 76.2 |
| H | 168.8 | 224.7 | 230.7 |
| L | 224 | 240 | 240 |
