Description
ㅤ
ㅤ

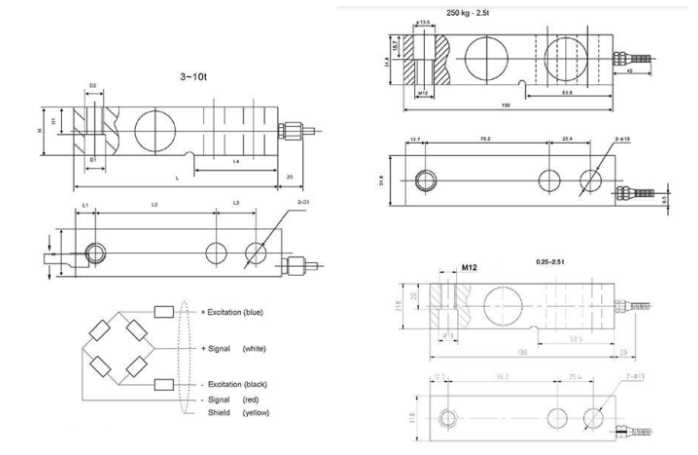

| Rated Load (t) | L | L1 | L2 | L3 | L4 | H/B | H1 | D1 | D2 | D3 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3.5 | 171.5 | 19 | 95.3 | 38.1 | 72.5 | 38.1 | 26 | Φ20 | M18×1.5 | Φ20 |
| 7.5~10 | 225.5 | 25.3 | 124 | 50.8 | 102 | 50.8 | 25.4 | Φ27 | M24×2 | Φ27 |
ㅤ
| Specification | Details |
|---|---|
| Rated capacities (Emax) | 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 7.5, 10t |
| Temperature, compensated | -10°C ~ +40°C |
| Rated Output | 3.0±0.003mV/V (0.5-10t); ≥0.002mV/V (0.25-0.3t) |
| Temperature, operating | -30°C ~ +70°C |
| Accuracy class | C5 |
| Maximum safe overload | 150% F.S |
| Ultimate overload | 180% F.S |
| Zero balance | ±1%F.S |
| Excitation, recommended | 10-12V DC |
| TC ZERO | ±0.02%F.S/10°C |
| Excitation, maximum | 15V DC |
| TC SPAN | ±0.02%F.S/10°C |
| Protection class | IP67 (0.2-0.75t); IP68 (1-10t) |
| Input resistance | 400±2Ω |
| Construction | Stainless Steel |
| Output resistance | 352±3Ω |
| Cable Length | 3m (0.25-2.5t), 4.2m (3-5t), 5m (7.5-10t) |
| Insulation resistance | ≥5000MΩ |
| Diameter | φ6mm (0.25-5t, 0.25-0.3t); φ8mm (7.5-10t, 5-10t) |
