Description
Meter transmisi film surya LS101 mengadopsi desain jalur cahaya paralel, yang sangat cocok untuk pengujian sifat optik film otomotif, film tahan ledakan, film arsitektur, film insulasi termal, kaca film, dan material lainnya. Alat ini dapat mengukur laju penolakan ultraviolet, laju penolakan inframerah, dan transmitansi cahaya tampak secara bersamaan. Layar LCD layar lebar memudahkan pembacaan.
LS101 solar film transmission tests solar film
LS101 solar film transmission tests glasses
LS101 solar film transmission tests film glasses
LS101 solar film transmission tests thick glasses
Parameter
| Parameter | Value |
|---|---|
| Size | 175mm*120mm*30mm (L*W*H) |
| Test slot | 20mm * 70 mm (W*H) |
| Weight | 360g |
| Resolution | 0.1% |
| Accuracy | ±2% (Colorless and transparent material) |
| UV Peak wavelength | 365nm |
| Visible light | 380-760nm, conforming to the CIE photopic luminosity function |
| IR Peak wavelength | 940nm |
| Display | Segment LCD |

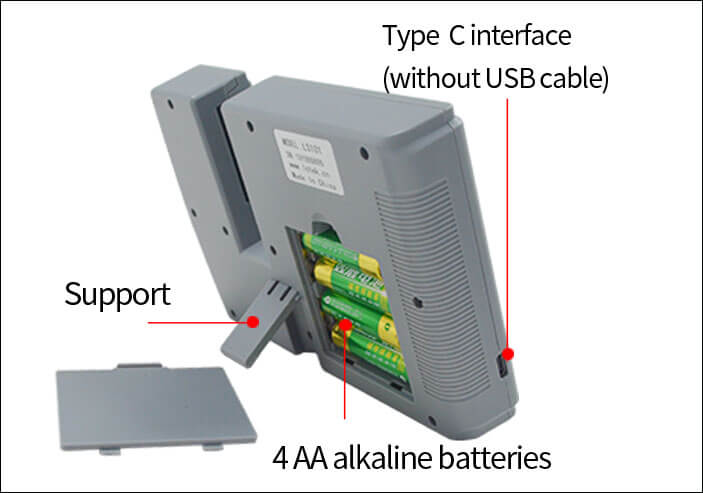

| Power Supply | 4*AA alkaline batteries or 5V AC/DC power supply |
