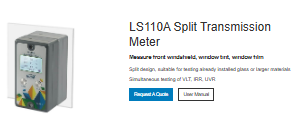

LS110A Split Transmission Meter Features and Operation

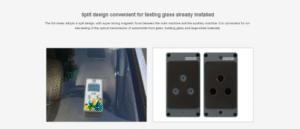

Linshang LS110A split automotive window tint meter is an instrument that can simultaneously test the transmittance, infrared rejection rate and ultraviolet rejection rate. The tint meter is suitable for testing materials such as automotive solar film, automotive glass and architectural glass. The instrument is composed of two parts: the main part (PARTⅠ) and the auxiliary part (PARTⅡ). It adopts a split structure, which is especially suitable for testing installed glass or large-sized materials.
Parameters
| Parameter | Value |
|---|---|
| UV peak wavelength | 365nm |
| IR peak wavelength | 940nm |
| Visible light | 380-760nm, conform to CIE photopic luminosity function |
| Resolution | 0%—10%: 0.1% 10%—100%: 1% |
| Measurement accuracy | ± 2% (colorless and uniform transparent materials) |
| Test sample size | Great than 40mm * 40mm |
| Weight | 630 g |
| Dimension | 130mm * 70mm * 84mm |
| Power supply | Built-in lithium rechargeable battery |
Three parameters can be measured at the same time
The LS110A split tint meter can test the transmittance, ultraviolet and infrared rejection rate at the same time
Data lock
With data lock function, the data remain on the interface after taking away the materials
Qualifications and Standards
