Description

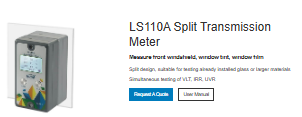

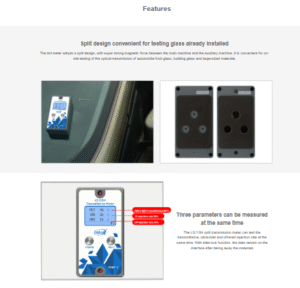

Linshang LS110H split transmission meter uses a split design. The instrument consists of a main part (PART I) and an auxiliary part (PART II). It is suitable for testing various solar films, automobile glass and installed door and window glass. The window tint checker can measure visible light transmittance, infrared and ultraviolet rejection rate at the same time. The split transmission meter is easy to operate and easy to read.
Parameters
| Parameter | Value |
|---|---|
| UV peak wavelength | 365nm |
| Visible light | 380-760nm (conform to CIE photopic luminosity function) |
| IR peak wavelength | 1400nm |
| Resolution | 0%—10%: 0.1% 10%—100%: 1% |
| Measurement accuracy | ± 2% (colorless and uniform transparent materials) |
| Test sample size | Great than 40mm * 40mm |
| Weight | 630 g |
| Dimension | 130mm * 70mm * 84mm(L*W*H) |

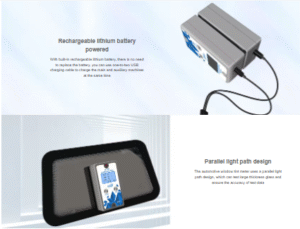

| Power supply | Built-in lithium rechargeable battery |
Data locking
With a data lock function, the data can be kept on the display screen when the test sample is removed, making it easy to read the data
Laser alignment to ensure accurate testing
The laser alignment function can ensure the precise alignment of the main and auxiliary machines during the measurement process. The accuracy of the instrument can be ensured
Qualifications and Standards
