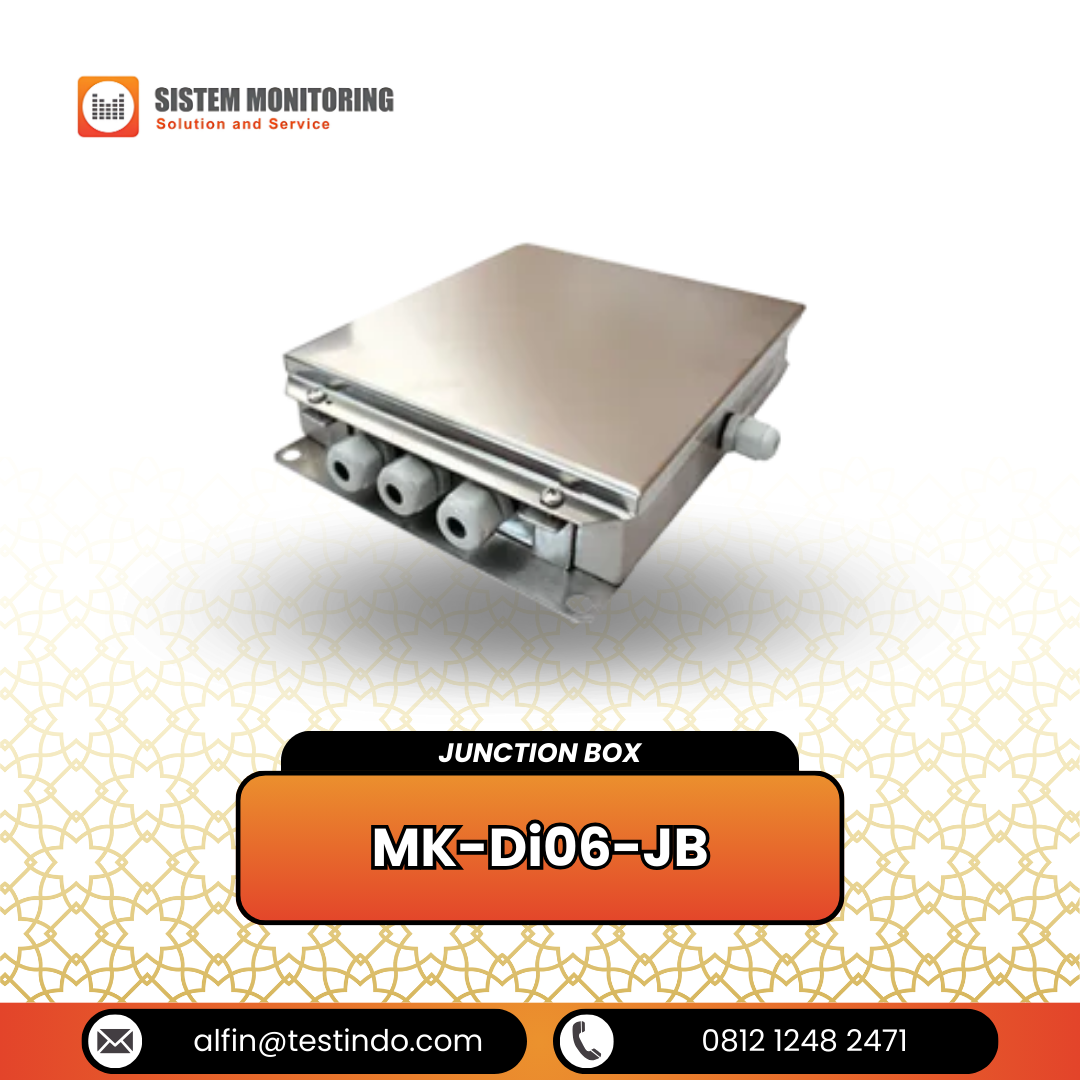

Junction Box MK-Di06-JB

Converter load cell fromanalogto digital
Connect the analog load cell directly to the D106 junction box to D105 display without indicator
Display can be treat us indicator
Auto adjust/setting corner, from Di05 display
Auto check load cell error from Di05 display
Real time info sent vla hardware cable/wireless transmission from external signal device to Di05 fr instance and online display with or without other pre – determined Info7.
DI05 contain 18 display modules, each module is made of 8×18 matrix super bright LED

Description

Provide high visibilty 9x full size (6 x 12 cm) or 18x halfsize (6 x6сm) simultaneously
Databank up to 20 user programmable text message, each message up to 31 characters
Auto baud rate detection function
Free software driver
Baud rate: 1200, 2400, 4800, 9600, 19200,38400
Supported clock and calender function
3 model of date format
Power supply: External dual voltage output power adaptor 5V, 1.5A/7.5-12V, 0.5A
Power consumption:
• 5V=1A
• 7.5-12V=200mA
Built in double RS-232 communication port:
• To connect from PC to Di05 display for set up from PC
• To cconnect from Di06-JB to Di05 display
Uploading company name, logo, letter, In DI05 to set from PC
Can communicate to PC with USB interface (Optional).
Windows 2000 and XP avallable
Calibration fromD105 by remote controller
Optional wireless available
