Description

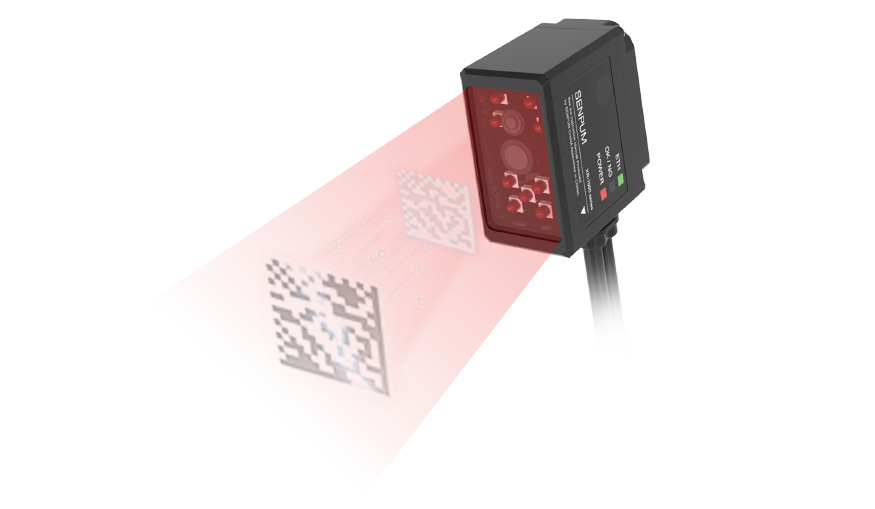

Pembacaan kode 1D dan 2D yang andal
Kode batang 1D/2D, pembacaan stabil terlepas dari status kode batang
Prosesor 1 megapiksel untuk resolusi minimum 0,12 mm
Prosesor 1 megapiksel dengan teknologi terkini untuk memastikan pembacaan yang stabil
Pembacaan dinamis berkecepatan tinggi dengan kecepatan hingga 100 kode/detik
Dilengkapi dengan algoritma pembacaan baru, dapat secara efisien membaca berbagai kode batang sistem kode dan kode DPM, kecepatan membaca hingga 100 kode/detik, kode batang miniatur 2*2mm juga dapat dengan mudah dibaca.
Technical Specifications
XR-1000 Series
| Model | XR-1000S | XR-1000M | XR-1000L | |
| Operating distance | 70mm | 100mm | 150mm | |
| Pixel count | 1280 p(H)×800 p(v) | |||
| Vision | 52*32 | 76*47 | 116*72 | |
| Minimum decode | 1D:0.06mm(2.39mil) | 1D:0.14mm(5.51mil) | 1D:0.13mm(5.11mil) | |
| 2D:0.12mm(4.79mil) | 2D:0.19mm(7.48mil) | 2D:0.27mm(10.62mil) | ||
| Depth of field | Bar code | 3*3mm, 9.17mil(depth: ±10mm) 5*5mm, 15.83mil(depth: ±20mm) 10*10mm, 29.17mil(depth: ±30mm) |
5*5mm, 15.83mil(depth: ±30mm) 10*10mm, 29.17mil(depth: ±50mm) |
5*5mm, 15.83mil(depth: ±20mm) 10*10mm, 29.17mil(depth: ±80mm) |
| QR code | ||||
| Light source | High-brightness red light source | |||
| Angle of view | 40° | |||
| Sensitivity | Tilt/Pitch ±65° swivel/Yaw 360° deflection/ROII ±60° | |||
| Motion tolerance | 2M/s | |||
| Area decode | Supports multiple ROI area decode | |||
| Communication specification | RS232, ethernet（TCP/UDP/Modbus/Ethernet） | |||
| Read specification | Bar code | UPC, EAN, IAN, Code 128, Code 39, Code 93, Interleaved 2 of 5, industrial 2 of 5 | ||
| QR code | QR Code, PDF 417, data matrix, aztec. | |||
| External input | 1 opto-isolated input, connectable to NPN/PNP/Relay | |||
| External output | 1 opto-isolated output | |||
| Ambient temperature | Operating temperature: 0℃~50℃, storage temperature: -20℃~70℃ | |||
| Protection class | IP54 | |||
| Vibration resistance | 1.2 meter concrete floor, free fall, 6 sides x 5 times/=30 times | |||
| Ambient light | 100000Lux | |||
| Case material | Aluminum | |||
| Consumption current | 2W max | |||
| Supply voltage | 5-30VDC | |||
| Dimension（L×W×H mm） | 45 × 25 × 48 | |||
| Weight | 80g | |||
| Communication line length | Standard 3M，extendable | |||
| Power cable length | Standard 2M，non-extendable | |||
