Description
Penerapan ukuran ultra-kecil yang lebih luas
Instalasi sangat hemat ruang

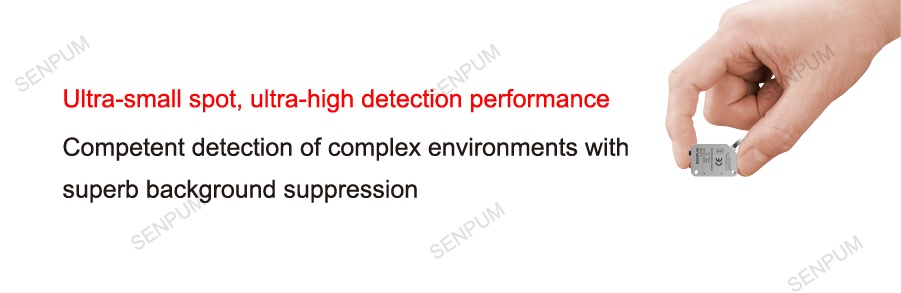

Titik ultra-kecil, kinerja deteksi ultra-tinggi
Titik laser ultra-kecil untuk deteksi berbagai target yang stabil
Deteksi lingkungan kompleks yang kompeten dengan penekanan latar belakang yang luar biasa
Mendeteksi celah kecil bahkan ketika targetnya sama atau mirip dengan warna latar belakang.
Technical Specification
| Model | NPN | LA-X300N | LA-X100N |
| PNP | LA-X300P | LA-X100P | |
| Type | Reflective | ||
| Small light point type | |||
| Detection distance | 300mm | 100mm | |
| Spot diameter | About Ф2.2mm at 300mm | About Ф1.0mm at 100mm | |
| light source | Category | Red laser (wavelength 660nm) | |
| Laser Classification | Class 1 laser products (IEC60825-1) | ||
| Response time | 1.5ms | ||
| Output type | NPN or PNP open collector output N.O./N.C. switching type | ||
| Control output | NPN Outputs | Maximum load current: 100mA; residual voltage: less than 1.5V | |
| PNP Outputs | Maximum load current: 100mA; residual voltage: less than 1.5V | ||
| Supply Voltage | 12 -30VDC +10%, Ripple Voltage (P-P): 10% max. | ||
| Power consumption | 250mW or less (10mA or less at 24V, 15mA or less at 12V) | ||
| Circuit protection | Power reverse connection protection, power surge protection, output short circuit protection | ||
| Protection class | IP67 (IEC60529) | ||
| Ambient light | Incandescent light: max. 10,000 lux ;Daylight: max. 10,000 lux | ||
| Environmental temperature | -20°C to +55°C (non-freezing) | ||
| Environmental humidity | 35 to 85% RH (non-condensing) | ||
| vibration resistance | 10-55 Hz, compound amplitude 1.5 mm, 2 hours each in the X, Y, and Z axis directions | ||
| impact resistance | 1000 m/s², 3 times each in the X, Y, and Z axis directions | ||
| Housings | Housing: zinc alloy Indicator cover: PC Lens cap: PMMA Buttons: ABS Cable (2m cable type only): PPVC | ||
| Housing size (H*W*L mm) | 33.13 x11.4×23.33 | ||
| Weights | Approx. 59g (including cable) | ||
