Description

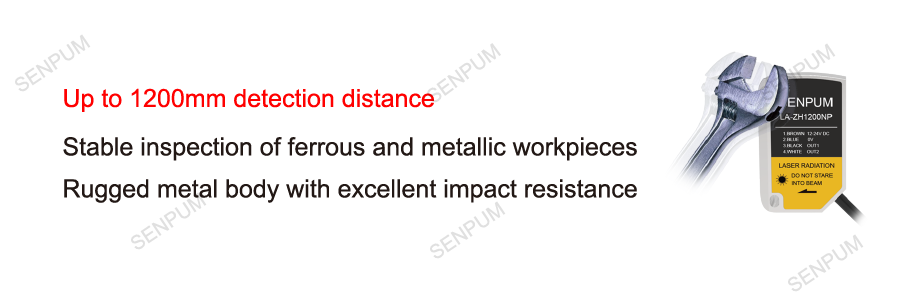

Laser penekan latar belakang jarak jauh, jarak deteksi hingga 1200mm
Jarak deteksi sangat jauh, solusi sempurna untuk kebutuhan deteksi jarak sangat jauh di lingkungan yang kompleks.
Pemeriksaan stabil benda kerja besi dan logam
Penekanan latar belakang yang unggul untuk deteksi akurat benda kerja besi dan logam.
Bodi logam kokoh dengan ketahanan benturan yang sangat baik
Bahan die-casting seng impor, sangat kokoh dan tahan korosi.
Products Lineup
| Appearances | Detection distance | Spot size | Output type | Model |
 |
 |
Approx. 2mm (at 600mm) Approx. 3.5mm (at 1200mm) |
NPN / PNP | LA-ZH1200NP |
 |
Approx. 4mm (at 2.5mm) Approx. 5mm (at 4m) |
LA-ZH4000UNP |
Technical Specifications
| Model | LA-ZH1200NP | LA-ZH4000UNP |
| Type | Reflective | |
| Small light point type | ||
| Detection distance | 150mm~1200mm | 4m |
| Spot diameter | Approx. 2mm (at 600mm) | 9cm*5.5cm(at 2.5m) |
| Approx. 3.5mm (at 1200mm) | 13cm*8.5cm(at 4m) | |
| Indicator spot size | – | Approx. 4mm(at 2.5m); Approx. 5mm(at 4m) |
| Supply voltage | 10-30V DC | 10-30V DC |
| Ripple voltage | ≤10% | ≤10% |
| Load current | ≤150mA | ≤150mA |
| Power | ＜0.8W | ＜1W |
| Switching output | 2 x Push-Pull | NPN/PNP can be set up |
| Light source type | 655nm laser light source | 650nm laser light source (TOF-type ranging indication light source); |
| 940nm Vcsel laser (TOF-type ranging detection light source) | ||
| Protection circuit | Reverse polarity protection, short circuit protection, overload protection | – |
| Response frequency | 100Hz | 15Hz |
| Measurement accuracy | – | ±30mm |
| Repeatability | 2mm(150mm~600mm);5mm(600mm~800mm);10mm(800mm~1200mm) | 5mm |
| Case material | Die-casting zinc | |
| Ambient temperature | -10°C~ 50°C | |
| Withstanding voltage | 1000V / AC / 50 / 60Hz 60s | |
| Insulation impedance | ≥50MΩ(500VDC) | |
| Withstanding vibration | Compound Amplitude 1.5mm 10~50Hz (2 hours each in X, Y, Z direction) | |
| Impact resistance | 500m/s²(50G) 3 times each in X, Y, Z | |
| Protection level | IP67 | |
| Overall dimensions (H*W*L mm) | 46.1*20*29 | 45.7*26.5*20 |
| Cable length | 2m | |
