Description
LS125 digital UV light meter is a smart host that can support 12 different types of probes. The main function of the host is data display. The UVALED-X0 probe is one of 12 probes equipped with the LS125 host. The spectral response range of the probe is 340nm-420nm and it is calibrated at 395nm, which is suitable for the intensity and energy detection of UVA LED light sources.
If you want to know about other types of probes supported by the LS125 UV light meter host
Parameters
| Parameters | UVALED-X0 Probe |
|---|---|

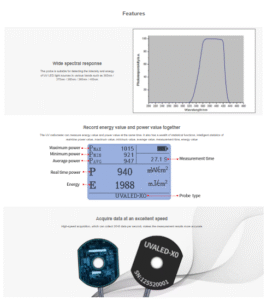

| Spectral response | 340nm-420nm, calibrated with 395nm UV LED |
| Power measuring range | 0 – 200,000mW / cm² |
| Resolution | 1mW / cm² |
| Energy measuring range | 0-9999999mJ/ cm² |
| Record time | 0-99999s |
| Measuring accuracy(H is the standard value) | H<50mW/cm²：±5mW/cm² H>=50mW/cm²：±10%H |
| Sampling speed | 2048 times/second |

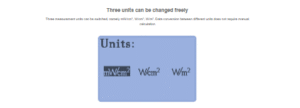

| Unit | mW / cm²(default), W / cm², W / m² |
| Test Hole Diameter | Φ=10mm |
| Probe size | 39mm × 32mm × 15mm (L*W*H) |
| Packing box demension | 24 * 6 * 5 cm (L * W * H) |
Application
Compared with mercury lamps, UVA LED light sources have the characteristics of long service life, no heat radiation, high energy, uniform irradiation. It is safer and more environmentally friendly. This kind of light source has been widely used in UV ink curing, UV adhesive curing, PCB exposure, optical communications and many other industries. For places that adopt UVA LED light source, they need to use LS125 UV light meter equipped with the UVALED-X0 probe to detect the radiation intensity and energy of its light source.
UV ink curing
UV adhesive curing
PCB Exposure
