Description

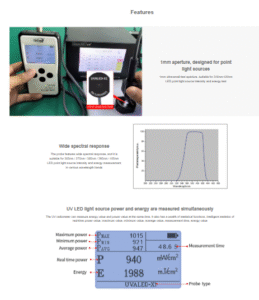

The LS125 UV light meter is a smart host that can support 12 different types of probes. Its main function is data display. The UVALED-X1 probe is one of the 12 probes equipped with the LS125 host. The probe’s spectral response range is 340nm-420nm, calibrated at 395nm. The light hole diameter is 1mm, which is suitable for the intensity and energy detection of LED point light sources.
If you want to know about other types of probes supported by the LS125 UV light meter host
Parameters
| Parameters | UVALED-X1 Probe |
|---|---|
| Spectral Response | 340nm-420nm, calibrated with 395nm UV LED |
| Power Measuring Range | 0 – 200,000mW / cm² |
| Resolution | 1mW / cm² |
| Energy Measuring Range | 0-9999999mJ/ cm² |
| Record Time | 0-99999s |
| Measuring Accuracy(H is the Standard Value) | H<50mW/cm²：±5mW/cm² H>=50mW/cm²：±10%H |

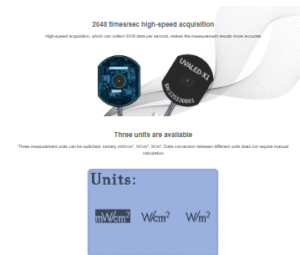

| Sampling Speed | 2048 times/second |
| Unit | mW / cm² (default), W / cm², W / m² |
| Test Hole Diameter | Φ=1mm |
| Probe Size | 39mm* 32mm*15mm(L*W*H) |
| Packing Box Dimension | 24 * 6 * 5 cm (L * W * H) |
