Description
Pengukur daya inframerah LS122, juga disebut penerima energi inframerah, merupakan instrumen dengan jangkauan penerimaan yang luas. Alat ini terutama digunakan untuk mengukur tingkat penolakan inframerah suatu material. Alat ini cocok untuk menampilkan efek insulasi termal dari kaca insulasi termal, film surya, dan material lainnya. Alat ini juga dapat digunakan untuk mengukur kerapatan daya energi radiasi berbagai sumber cahaya, yaitu daya energi radiasi per meter persegi dengan satuan W/m².
Parameters
| Parameter | LS122 IR Power Meter |
|---|---|
| Power Range | 0-40000 W / m² |
| Accuracy (H is the Standard Value) |
H<50W/m²：±5W/m² H>=50W/m²：±10%H |
| Infrared Rejection Rate | -999%-100% |
| Spectral Response | 1000nm-1700nm |
| Photosensitive Aperture | 10mm |

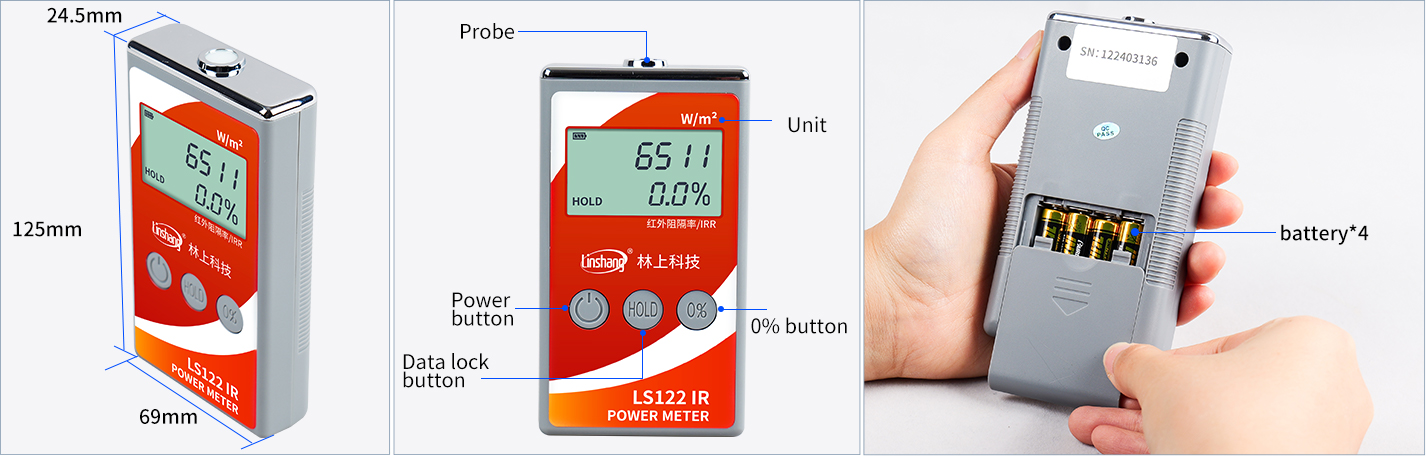

| Dimension | 125mm * 69mm * 24.5mm (L*W*H) |
| Weight | About 140 g (including battery) |
| Working Temperature | -20 ° C-+ 70 ° C |
| Power Supply | AAA alkaline dry batteries |
Features
Applicable for a wide range of materials

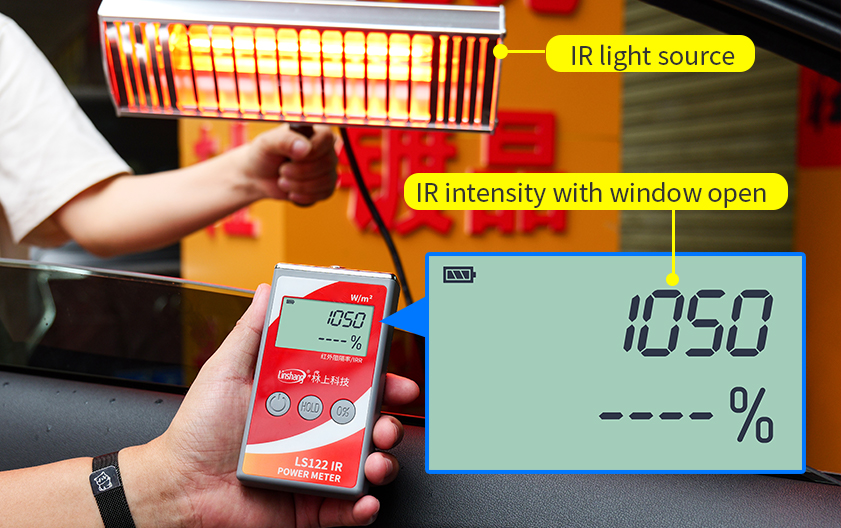

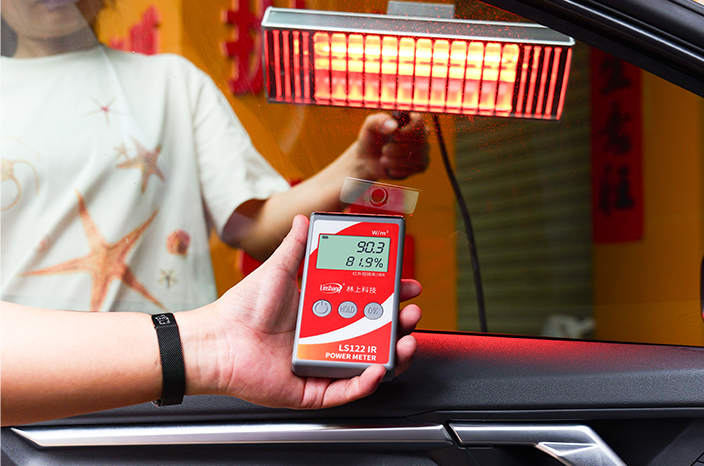

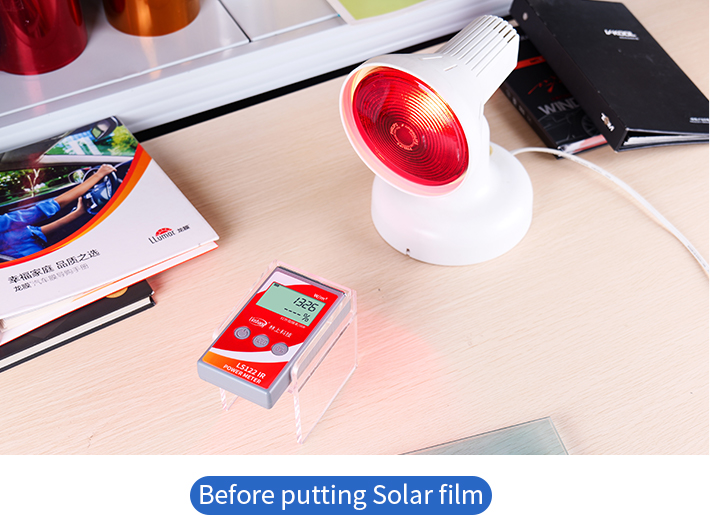

The LS122 solar power meter is suitable for testing the infrared rejection performance of architectural film, automobile thermal insulation film, solar film, thermal insulation glass and solar equipment

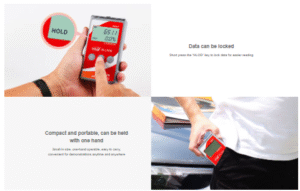

Simple operation, infrared intensity can be measured upon startup
The device is easy to operate, no complex calibration required, measures infrared irradiance upon startup
The demonstration effect is intuitive and easy to understand

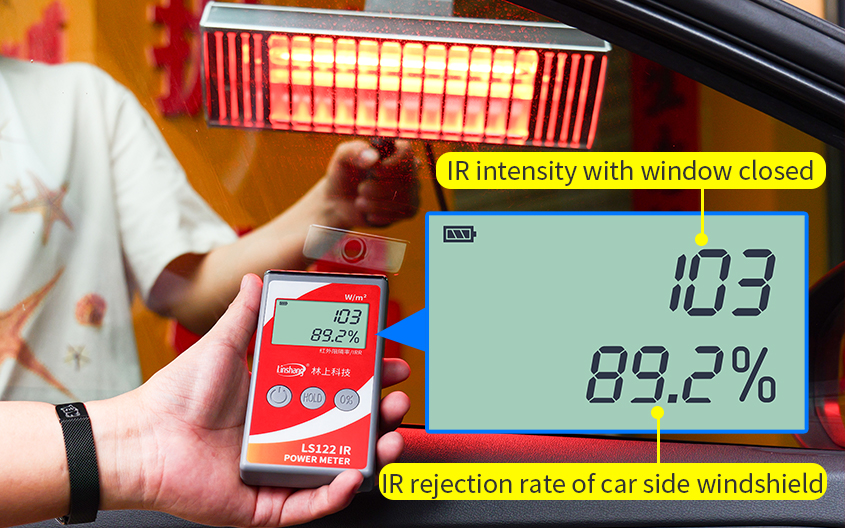

Directly displays the blocking rate, no manual calculation needed; the higher the rate, the better the blocking effect

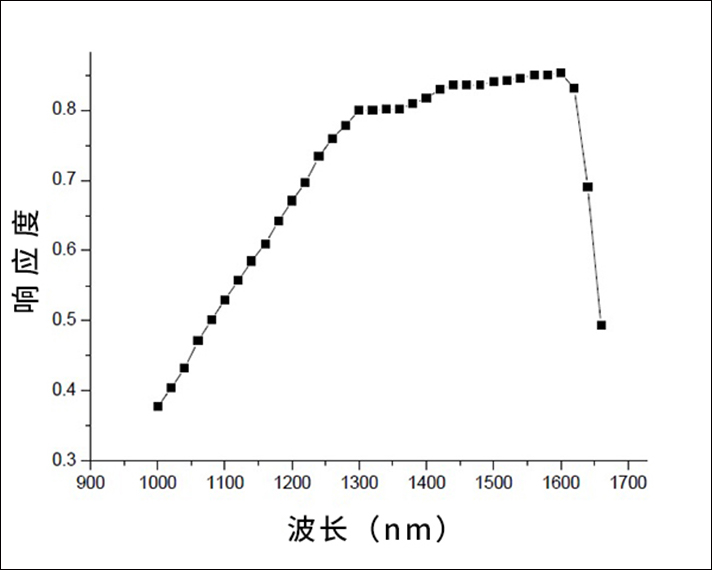

Wide spectral response
Capable of measuring infrared intensity in the 1000nm to 1700nm wavelength range

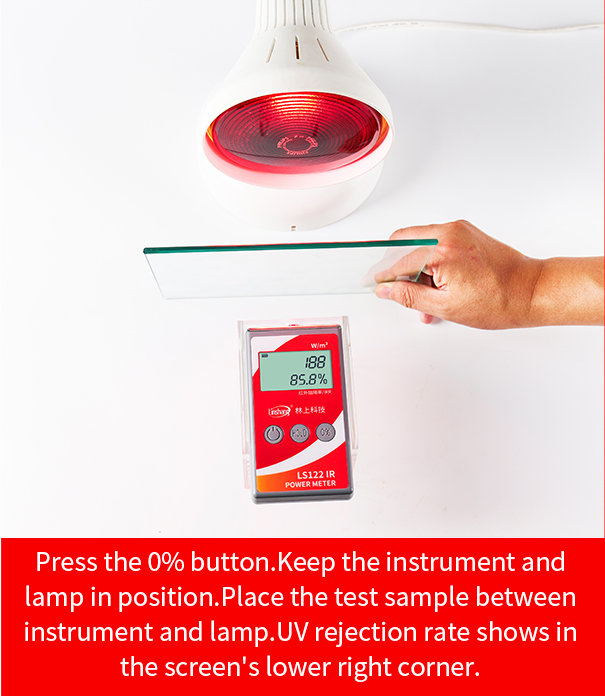

Infrared power meter measurement steps
