Description
Pengukur daya UV portabel LS123, juga dikenal sebagai pengukur intensitas lampu UV. Instrumen ini memiliki jangkauan penerimaan spektrum yang luas. Alat ini terutama digunakan untuk mengukur tingkat penolakan UV pada material. Alat ini cocok untuk menampilkan kinerja penolakan UV pada material seperti film tahan ledakan, film surya, dan kaca isolasi. Pengukur daya ultraviolet ini juga digunakan untuk mengukur kerapatan daya energi radiasi, yaitu daya energi radiasi per meter persegi, dalam mikrowatt per sentimeter persegi (uW/cm2).
Test front windshield of the car
Test side windshield of the car
Test solar film
Test filmed glass
Parameters
| Parameter | LS123 UV Power Meter |
|---|---|
| Power Range | 0-40000 μW / cm² |
| Accuracy (H is the Standard Value) |
H<50μW/cm²：±5μW/cm² H>=50μW/cm²：±10%H |
| Ultraviolet Rejection Rate | -999%-100% |
| Spectral Response | 260nm-380nm, λp=365nm |
| Photosensitive Aperture | 10mm |
| Dimension | 125mm * 69mm * 24.5mm (L*W*H) |
| Weight | about 140 g (including battery) |
| Working Temperature | -20 ° C ~ + 70 ° C |
| Power Supply | AAA alkaline dry batteries |
Features
Demonstrate the UV rejection performance
Applicable to the UV rejection performance test of explosion-proof film, automotive heat insulation film, solar film, heat insulation glass and other materials.
Before inserting the solar film
After inserting the solar film

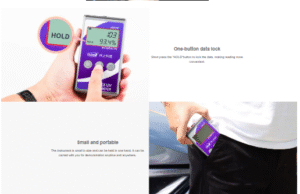

Easy to operate
The instrument is easy to operate and can measure the UV radiation intensity as soon as it is turned on.
Simple and effective display
Directly display the rejection rate without manual calculation. The higher the blocking rate, the better the blocking effect.
Wide spectral response
The UV lamp intensity meter has wide spectral response which can test the ultraviolet intensity from 260nm-380nm wavelength
UV power meter measurement steps
