Description
Pengukur transmisi film jendela LS163 adalah instrumen untuk mengukur sifat optik material seragam dan transparan seperti film surya, kaca film, kaca insulasi panas, dan kaca depan mobil. Antarmuka pengukuran dapat dipilih untuk menampilkan penolakan dan transmitansi inframerah dan ultraviolet.
Application
LS163 Transmission Meter is widely used in solar film, glass industry, automobile 4S shops, car beauty shops, etc. It is suitable for display, production, quality inspection, inspection and other occasions. It can test optical properties of solar film, stick-film glass, PC material and window glass.
LS163 transmission meter tests film
LS163 transmission meter tests film glass
LS163 transmission meter tests PC material
LS163 transmission meter tests car side glass
Parameters
| Parameter | Value |
|---|---|
| UV Peak Wavelength | 365nm |
| IR Peak Wavelength | 940nm |
| Visible Light | 380-760nm, conform to the CIE photopic luminosity function |
| Accuracy | ±2% (Colorless and transparent material) |
| Resolution | 0.1% |
| Test Slot | 6mm * 58mm (W*D) |
| Dimension | 146 mm ×73 mm ×24 mm (L*W*H) |
| Display | 128*128 Dot matrix LCD |
| Weight | 187g (Include batteries) |
| Power Supply | 4*AAA alkaline batteries |
LS163 transmission meter appearance
Real-time automatic calibration function
The LS163 solar film transmission meter has real time dynamic calibration function , the meter will conduct self-calibration after turning on

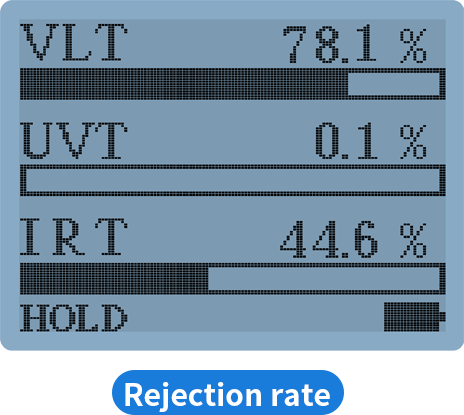

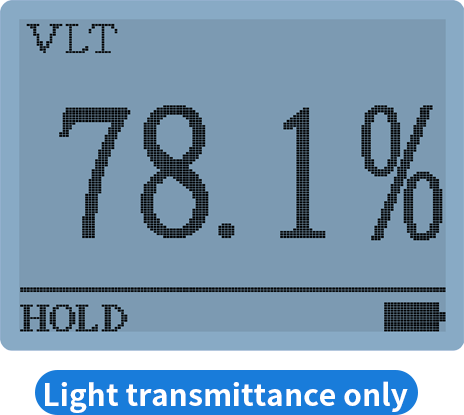

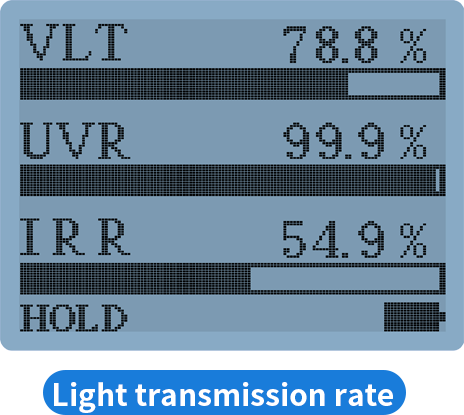

Three display interfaces available
We can set the display interface as rejection rate, transmittance or light transmission
Lock testing datas by pressing “Hold” button
The window tint detector has data lock function. Press the hold button after testing, the data will remain on the interface after taking away the tested materials
