Description
DESKRIPSI PRODUK

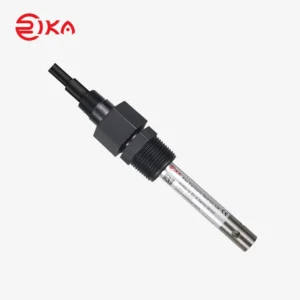

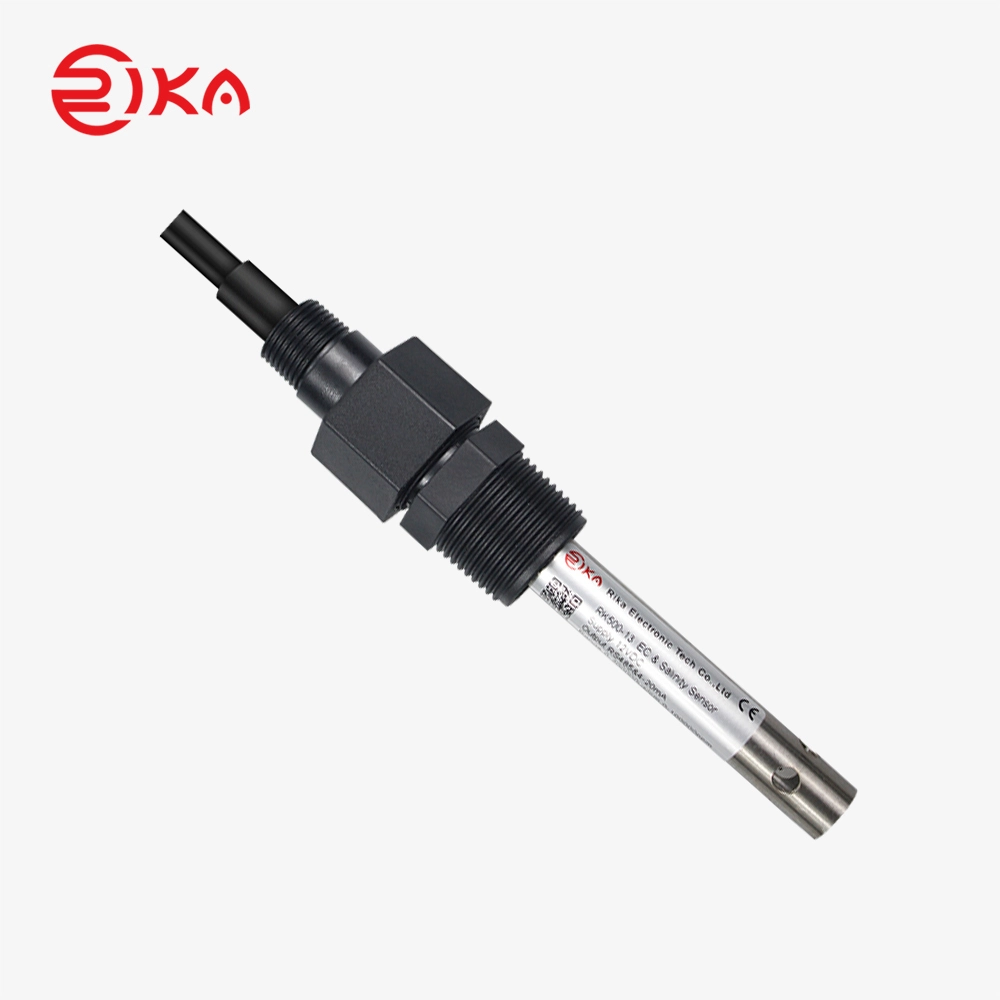

RK500-13 EC Sensor menggunakan teknologi anti-polarisasi canggih dan teknologi isolasi sinyal internal, sehingga memiliki kemampuan anti-interferensi yang kuat. Pengukuran yang stabil, akurat, bebas perawatan, dan mudah dipasang.
Sensor ini menghasilkan kualitas data yang luar biasa dengan akurasi ±1%FS dan waktu respons cepat hanya 1 detik, memastikan kamu dapat menangkap perubahan kualitas air secara real-time.
EC conductivity meter ini terutama digunakan dalam bidang akuakultur, pengujian sumber air, pengolahan air limbah, pemantauan lingkungan, dan berbagai aplikasi lainnya.
SPECIFICATIONS
| Technical Parameter | Details |
|---|---|
| Type | RK500-13-B (Conventional type) |
| Main Material | Nylon fiber + 316 electrode |
| Screw Thread | Bottom: NPT3/4 |
| Pressure Resistance | 1.0 MPa |
| Temperature Compensation | Automatic (0–60℃) |
| Output Signal | 4–20mA & RS485 simultaneously |
| Supply Voltage | 7–30VDC |
| EC Range | 0–2000 μs/cm, 0–5000 μs/cm, 0–10000 μs/cm, 0–20000 μs/cm (customizable up to 0–300 mS/cm, 1 mS/cm = 1000 μs/cm) |
| Accuracy | ±1% FS |
| Resolution | 0.01 mS/cm |
| Power Consumption | <0.2 W |
| Measurement Principle | Frequency conversion method |
| Response Time | 1 second |
| Drift | ≤0.3% FS / 24h |
| Measurement Environment | 0–60℃ (high-temperature electrode available) |
| Ingress Protection | IP68 |
| Storage Conditions | 10–60℃, 20%–90% RH |
| Cable Length | 5 m (default, customizable) |
| Application | General freshwater testing, high-pressure environments |
Installation & Usage
- Put directly into the liquid
- Adopt submersible mounting bracket (showin the below figure)
