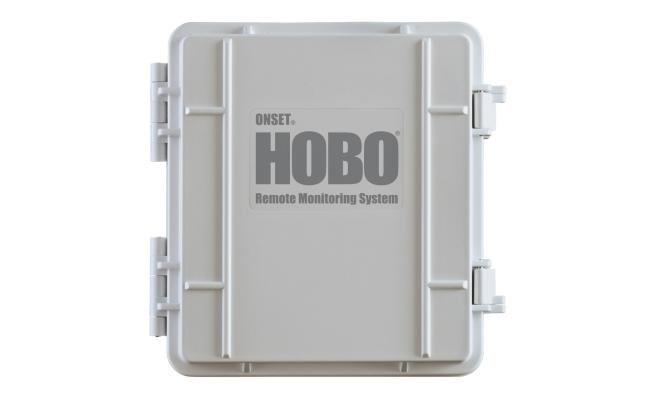

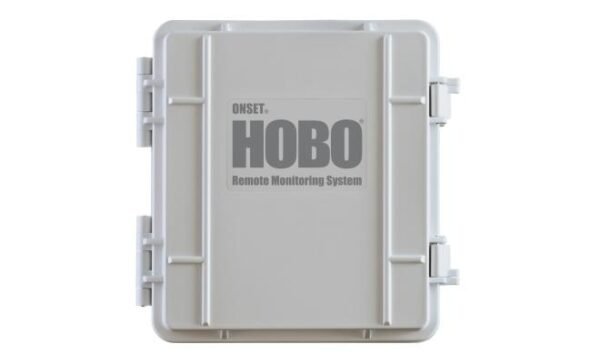

Alat Stasiun Pemantauan Jarak Jauh Dalam Ruangan RX3000 Indoor Remote Monitoring Station RX3000-INDOOR
Alat Stasiun Pemantauan Jarak Jauh Dalam Ruangan RX3000 Indoor Remote Monitoring Station RX3000-INDOOR - Image 2

Alat Stasiun Pemantauan Jarak Jauh Dalam Ruangan RX3000 Indoor Remote Monitoring Station RX3000-INDOOR

Alat Stasiun Pemantauan Jarak Jauh Dalam Ruangan RX3000 Indoor Remote Monitoring Station RX3000-INDOOR Stasiun pencatatan data jarak jauh yang paling fleksibel, stasiun seluler ini menyediakan akses instan ke data lingkungan dalam ruangan khusus lokasi di mana saja, kapan saja, melalui internet dan paket data RX yang memberi Anda akses ke perangkat lunak LI-COR Cloud (sebelumnya HOBOlink) yang canggih. Stasiun yang dapat dikonfigurasi ini menggabungkan fleksibilitas dan kualitas sensor dari sistem yang lebih mahal, layar LCD internal, dan kemudahan pengoperasian plug-and-play.

Categories: ,

Description

Features
  • Flexible support for a broad range of sensors
  • LCD display for easy deployment
  • Cloud-based data access through HOBOlink
    • Get 24/7 web access to your data via web browser
    • Verify RX3000 system status remotely
    • Set up and manage alarm notifications over the web
    • Schedule automated delivery of data
  • Plug-and-play operation
  • Alarm notifications via text, email
  • Configurable from your mobile device
  • Optional analog input, relay, and water level sensor modules
Specifications
Operating Range;
-40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC
Smart Sensor Connectors; 10
Smart Sensor Network Cable Length; 100 m (328 ft) maximum
Smart Sensor Data Channels;
Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Module Slots; 2
Logging Rate;
1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours
Time Accuracy;
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source;
4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR)
Rechargeable Battery Service Life;
Typical 3-5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life
Memory; 32 MB, 2 million measurements, continuous logging
Alarm Notification Latency; Logging interval plus 2-4 minutes, typical
Enclosure Access;
Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD;
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials;
Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish
Size; 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page
Weight;
2.2 kg
4.85 lb
Mounting; 3.8 cm (1.5 inch) mast or wall mount
Environmental Rating:
Weatherproof enclosure, NEMA 4X
requires proper installation of cable channel system
Compliance Symbols:
RX3002: FCC ID R68XPICOW, IC ID 3867A-XPICOW
RX3003: FCC ID QIPEHS6, IC ID 7830A-EHS6; approved for use in Taiwan and Japan
RX3004: FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
Wireless Radio:
RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz
RX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna:
RX3003: Penta band
RX3004: 4G LTE

Ethernet (RX3001)

Connector: One RJ45/100BaseT

Wi-Fi (RX3002)

Network Standards: IEEE 802.11b/g/n
Frequency Range: 2.412-2.484 GHz
Antenna Connector: 1, no diversity supported
Data Rates:
1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)
Number of Selectable Radio Subchannels:
Up to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries)
Radio Modulations: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
Security:
WEP 64/128, WPA-PSK, AES end-to-end encryption, WPA2, protocols not listed are not supported
Maximum Receive Level: -10 dBm (with PER <8%)
Receiver Sensitivity:
-72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps, -90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps

Cellular (RX3003 and RX3004)

Wireless Radio:
RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz
RX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna:
RX3003: Penta band
RX3004: 4G LTE
