Description
Features
- Flexible support for a broad range of sensors
- LCD display for easy field deployment
- Cloud-based data access through HOBOlink
- Get 24/7 web access to your data via web browser
- Verify RX3000 system status remotely
- Set up and manage alarm notifications over the web
- Schedule automated delivery of data
- Plug-and-play operation
- Alarm notifications via text, email
- Rugged double-weatherproof enclosure
- Configurable from your mobile device

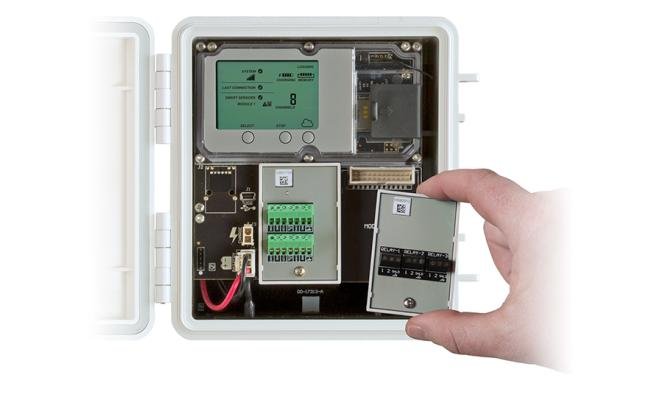

- Optional Analog Input, Relay, and Water Level Sensor Modules
- Remote water level and water flow monitoring with Onset’s water level module (RXMOD-W1)
- Access to NEWA plant disease risk and insect pest models
Specifications
Operating Range:
-
-40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC

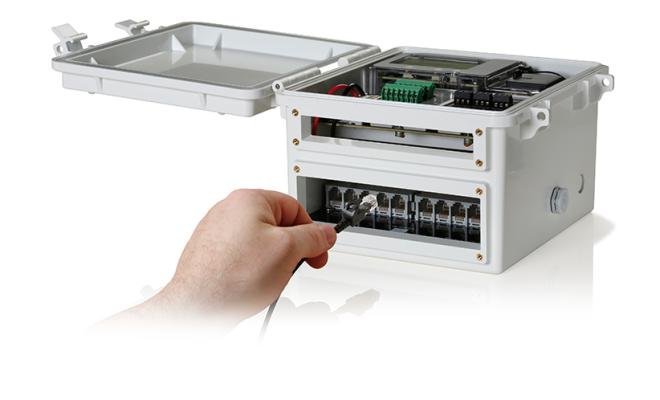

Smart Sensor Connectors: 10
Smart Sensor Network Cable Length: 100 m (328 ft) maximum
Smart Sensor Data Channels:
-
Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Module Slots: 2
Logging Rate: 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours
Time Accuracy:
-
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source:
-
4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR)
Rechargeable Battery Service Life:
-
Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life
Memory: 32 MB, 2 million measurements, continuous logging
Alarm Notification Latency: Logging interval plus 2–4 minutes, typical
Enclosure Access:
-
Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD:
-
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials:
-
Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish
Size:
-
18.6 x 18.1 x 11.8 cm7.3 x 7.1 x 4.7 in.
Weight:
-
2.2 kg4.85 lb
Mounting: 3.8 cm (1.5 inch) mast or wall mount
Environmental Rating:
-
Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system)
Wireless Radio:
-
RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHzRX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna:
-
RX3003: Penta band
RX3004: 4G LTE
Ethernet (RX3001)
Connector: One RJ45/100BaseT
Wi-Fi (RX3002)
Network Standards: IEEE 802.11b/g/n
Frequency Range: 2.412–2.484 GHz
Antenna Connector: 1, no diversity supported
Data Rates:
-
1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)
Number of Selectable Radio Subchannels:
-
Up to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries)
Radio Modulations: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
Security:
-
WEP 64/128, WPA-PSK, AES end-to-end encryption, WPA2, protocols not listed are not supported
Maximum Receive Level: -10 dBm (with PER <8%)
Receiver Sensitivity:
-
-72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps, -90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps
Cellular (RX3003 and RX3004)
Wireless Radio:
-
RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100 MHzRX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna:
-
RX3003: Penta band
RX3004: 4G LT
What’s in the box:
- HOBO RX3000 Remote Monitoring Station
- Two plates for cable access openings with eight thumbscrews and one wrench
- Two rubber cable channels
- Rubber plugs
- Grease packet
- Two mounting plates with four screws
- Grounding wire
- Two U-bolts
