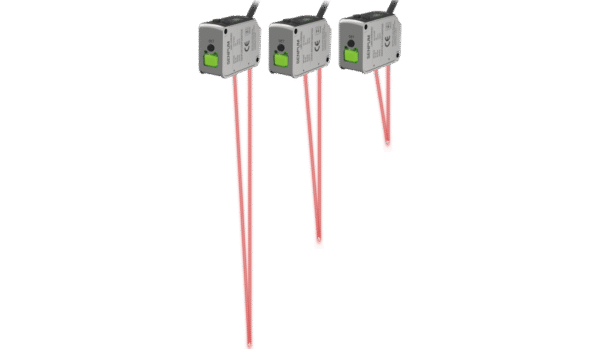

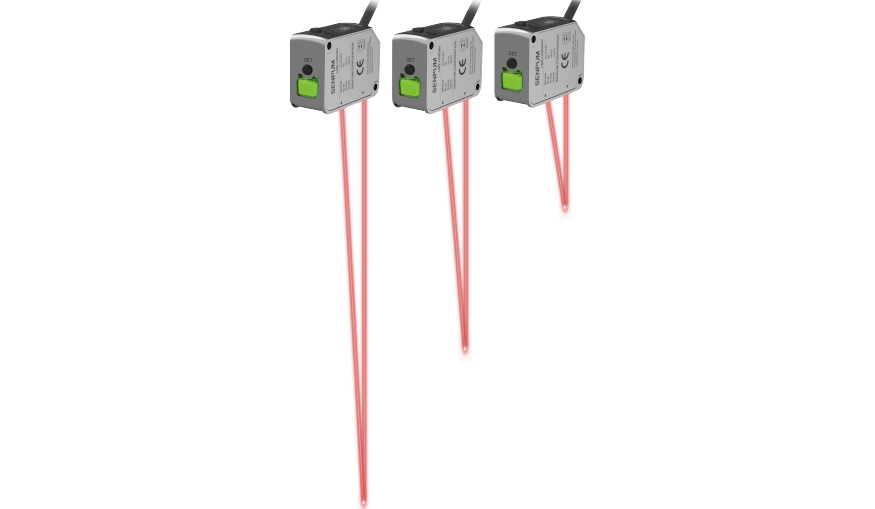

Sensor Perpindahan Laser Jarak Menengah-Jarak Presisi Tinggi High-Precision Medium-Long Range Laser Displacement Sensor LM2-H Series

Sensor Perpindahan Laser Jarak Menengah-Jarak Presisi Tinggi High-Precision Medium-Long Range Laser Displacement Sensor LM2-H Series

Penguat kepala sensor dalam satu badan, presisi sangat tinggi, deteksi berbagai kesempatan akurat dan stabil; tampilan digital, ekonomis.

Presisi sangat tinggi, mendeteksi secara akurat dan stabil pada berbagai kesempatan; Pemeriksaan stabil bahkan saat warna benda kerja berubah.

Categories: , , ,

Description

Presisi sangat tinggi, mendeteksi secara akurat dan stabil pada berbagai kesempatan

Akurasi linear hingga ±0,1% F.S., pengulangan maksimum hingga 1 μm.



Pemeriksaan stabil bahkan ketika warna benda kerja berubah

Deteksi penghitungan dan penumpukan perangkat kotak susun.



Jarak deteksi hingga 400 mm, mendukung berbagai aplikasi



Tampilan digital definisi tinggi dan indikator status

Dengan tampilan digital definisi tinggi dan indikator status, nilai pengukuran dan proses penyesuaian mode terlihat jelas.

IP67 rating

Products Lineup

Cable type

Diffuse
reflective		 Appear-ance Schematics Detection
distance
(mm)		 Repeat-

ability

 Output
method		 Model
Short-
range
type		 30±5 mm 1 μm NPN/PNP
Analog voltage/
current		 LM2-H030SAV
NPN/PNP
RS-485		 LM2-H030ST
30±4 mm 2 μm NPN/PNP
Analog voltage/
current		 LM2-H030AV
NPN/PNP
RS-485		 LM2-H030T
Medium-
range
type		 50±10 mm 5 μm NPN/PNP
Analog voltage/
current		 LM2-H050AV
NPN/PNP
RS-485		 LM2-H050T
85±20 mm 10 μm NPN/PNP
Analog voltage/
current		 LM2-H085AV
NPN/PNP
RS-485		 LM2-H085T
120±60 mm 40 μm NPN/PNP
Analog voltage/
current		 LM2-H120AV
NPN/PNP
RS-485		 LM2-H120T
Long-
range
type		 200±105 mm 50 μm NPN/PNP
Analog voltage/
current		 LM2-H200AV
NPN/PNP
RS-485		 LM2-H200T
250±150 mm 70 μm NPN/PNP
Analog voltage/
current		 LM2-H250AV
NPN/PNP
RS-485		 LM2-H250T





Relay type

Diffuse
reflective		 Appear-

ance

 Schematics Detection
distance
(mm)		 Repeat-

ability

 Output
method		 Model
Short-
range
type		 30±5 mm 1 μm NPN/PNP
Analog voltage/
current		 LM2-H030SCAAV
NPN/PNP
RS-485		 LM2-H030SCAT
30±4 mm 2 μm NPN/PNP
Analog voltage/
current		 LM2-H030CAAV
NPN/PNP
RS-485		 LM2-H030CAT
Medium-
range
type		 50±10 mm 5 μm NPN/PNP
Analog voltage/
current		 LM2-H050CAAV
NPN/PNP
RS-485		 LM2-H050CAT
85±20 mm 10 μm NPN/PNP
Analog voltage/
current		 LM2-H085CAAV
NPN/PNP
RS-485		 LM2-H085CAT
120±60 mm 40 μm NPN/PNP
Analog voltage/
current		 LM2-H120CAAV
NPN/PNP
RS-485		 LM2-H120CAT
Long-
range
type		 200±105 mm 50 μm NPN/PNP
Analog voltage/
current		 LM2-H200CAAV
NPN/PNP
RS-485		 LM2-H200CAT
250±150 mm 70 μm NPN/PNP
Analog voltage/
current		 LM2-H250CAAV
NPN/PNP
RS-485		 LM2-H250CAT





Cable (sold separately)

Appearance Sensor side Cable termination Material Output method Cable length Model

Straight type

 M8 6PIN Loose wire PVC Analog 2 m OW-LM2H2000
RS-485 OW-LM2HT2000
Analog 5 m OW-LM2H5000
RS-485 OW-LM2HT5000
Analog 10 m OW-LM2H10M
RS-485 OW-LM2HT10M



Technical Specifications

Cable type, Analog

Model NPN/PNP
Analog voltage/current		 LM2-H030SAV LM2-H030AV LM2-H050AV LM2-H085AV LM2-H120AV LM2-H200AV LM2-H250AV
Type Diffuse reflective
Short-range type Medium-range type Long-range type
Detection distance 30 mm 30 mm 50 mm 85 mm 120 mm 200 mm 250 mm
Range ±5 mm ±4 mm ±10 mm ±20 mm ±60 mm ±105 mm ±150 mm
Light sensor Linear image sensor CMOS
Spot size Close range ø150 μm ø150 μm 250*700 μm 250*700 μm ø500 μm ø600 μm ø600 μm
Reference distance ø120 μm ø120 μm 150*350 μm 150*150 μm ø250 μm ø400 μm ø400 μm
Long range ø120 μm ø120 μm 100*100 μm 250*500 μm ø500 μm ø600 μm ø700 μm
Light source 655 nm red laser, 1 mW max.
Laser class IEC/JIS (class2); FDA (class Ⅱ)
Linear accuracy ±0,1 % F.S.*1*2
Repeatability 1 μm*1*2 2 μm*1*2 5 μm*1*2 10 μm*1*2 40 μm*1*2 50 μm*1*2 70 μm*1*2
Sampling period 1 time/1 ms; 16 times/8.5 ms; 64 times/32.5 ms max. 1 time/1.5 ms; 16 times/13 ms; 64 times/49 ms max.
Temperature drift ±0,08 % F.S./℃
Analog output 0-20 mA; 4-20 mA; 0-5 V; 0-10 V; ±5 V; ±10 V
Switching output NPN or PNP open collector output, Q1/Q2: Max 100 mA/DC 30 V, residual voltage 1.8 V
External input NPN contactless input, valid: 0 to +1.2 VDC, input impedance: approx. 10 kΩ
Power voltage 12 to 30 VDC ±10 % including fluctuations of 10 % (p-p)
Current consumption 35 mA or less (at 24 VDC), 60 mA or less (at 12 VDC)
Protection class IP67
Ambient illumination Incandescent lamp: 3,000 lux or less
Operating ambient temperature -10 to +40 °C (no freezing)
Operating ambient humidity 35 to 85 % RH (no condensation)
Power cord 2 m highly flexible drag chain type cable
Material Enclosure: Zinc alloy, Indicator cover: PC, Lens: Glass, Buttons: ABS, Cable: PVC
Weight Approx. 150 g (including cable)

*Catatan:
1. Ini adalah data dari pengukuran SENPUM target standar (objek difusi putih).
2. Data uji dengan jumlah rata-rata 128 sampel (Mode Resolusi Tinggi) digunakan sebagai standar, dan akurasi pengulangan bervariasi dalam berbagai mode.
3. Waktu pengukuran untuk nilai uji optimal terdiri dari dua bagian: waktu pengambilan sampel dan waktu perhitungan penyesuaian.


Cable type, RS-485

Model NPN/PNP
RS-485		 LM2-H030ST LM2-H030T LM2-H050T LM2-H085T LM2-H120T LM2-H200T LM2-H250T
Type Diffuse reflective
Short-range type Medium-range type Long-range type
Detection distance 30 mm 30 mm 50 mm 85 mm 120 mm 200 mm 250 mm
Range ±5 mm ±4 mm ±10 mm ±20 mm ±60 mm ±105 mm ±150 mm
Light sensor Linear image sensor CMOS
Spot size Close range ø150 μm ø150 μm 250*700 μm 250*700 μm ø500 μm ø600 μm ø600 μm
Reference distance ø120 μm ø120 μm 150*350 μm 150*150 μm ø250 μm ø400 μm ø400 μm
Long range ø120 μm ø120 μm 100*100 μm 250*500 μm ø500 μm ø600 μm ø700 μm
Light source 655 nm red laser, 1 mW max.
Laser class IEC/JIS (class2); FDA (class Ⅱ)
Linear accuracy ±0,1 % F.S.*1*2
Repeatability 1  μm*1*2 2  μm*1*2 5  μm*1*2 10  μm*1*2 40  μm*1*2 50  μm*1*2 70  μm*1*2
Sampling period 1 time/1 ms; 16 times/8.5 ms; 64 times/32.5 ms max. 1 time/1.5 ms; 16 times/13 ms; 64 times/49 ms max.
Temperature drift ±0,08 % F.S./℃
Analog output 0-20 mA; 4-20 mA; 0-5 V; 0-10 V; ±5 V; ±10 V
Switching output NPN or PNP open collector output, Q1/Q2: Max 100 mA/DC 30 V, residual voltage 1.8 V
External input NPN contactless input, valid: 0 to +1.2 VDC, input impedance: approx. 10 kΩ
Power voltage 12 to 30 VDC ±10 % including fluctuations of 10 % (p-p)
Current consumption 35 mA or less (at 24 VDC), 60 mA or less (at 12 VDC)
Protection class IP67
Ambient illumination Incandescent lamp: 3,000 lux or less
Operating ambient temperature -10 to +40 °C (no freezing)
Operating ambient humidity 35 to 85 % RH (no condensation)
Power cord 2 m highly flexible drag chain type cable
Material Enclosure: Zinc alloy, Indicator cover: PC, Lens: Glass, Buttons: ABS, Cable: PVC
Weight Approx. 150 g (including cable)

*Catatan:
1. Ini adalah data dari pengukuran SENPUM target standar (objek difusi putih).
2. Data uji dengan jumlah rata-rata 128 sampel (Mode Resolusi Tinggi) digunakan sebagai standar, dan akurasi pengulangan bervariasi dalam berbagai mode.
3. Waktu pengukuran untuk nilai uji optimal terdiri dari dua bagian: waktu pengambilan sampel dan waktu perhitungan penyesuaian.


Relay type, Analog

Model NPN/PNP
Analog voltage/current		 LM2-H030SCAAV LM2-H030CAAV LM2-H050CAAV LM2-H085CAAV LM2-H120CAAV LM2-H200CAAV LM2-H250CAAV
Type Diffuse reflective
Short-range type Medium-range type Long-range type
Detection distance 30 mm 30 mm 50 mm 85 mm 120 mm 200 mm 250 mm
Range ±5 mm ±4 mm ±10 mm ±20 mm ±60 mm ±105 mm ±150 mm
Light sensor Linear image sensor CMOS
Spot size Close range ø150 μm ø150 μm 250*700 μm 250*700 μm ø500 μm ø600 μm ø600 μm
Reference distance ø120 μm ø120 μm 150*350 μm 150*150 μm ø250 μm ø400 μm ø400 μm
Long range ø120 μm ø120 μm 100*100 μm 250*500 μm ø500 μm ø600 μm ø700 μm
Light source 655 nm red laser, 1 mW max.
Laser class IEC/JIS (class2); FDA (class Ⅱ)
Linear accuracy ±0,1 % F.S.*1*2
Repeatability 1  μm*1*2 2  μm*1*2 5  μm*1*2 10  μm*1*2 40  μm*1*2 50  μm*1*2 70  μm*1*2
Sampling period 1 time/1 ms; 16 times/8.5 ms; 64 times/32.5 ms max. 1 time/1.5 ms; 16 times/13 ms; 64 times/49 ms max.
Temperature drift ±0,08 % F.S./℃
Analog output 0-20 mA; 4-20 mA; 0-5 V; 0-10 V; ±5 V; ±10 V
Switching output NPN or PNP open collector output, Q1/Q2: Max 100 mA/DC 30 V, residual voltage 1.8 V
External input NPN contactless input, valid: 0 to +1.2 VDC, input impedance: approx. 10 kΩ
Power voltage 12 to 30 VDC ±10 % including fluctuations of 10 % (p-p)
Current consumption 35 mA or less (at 24 VDC), 60 mA or less (at 12 VDC)
Protection class IP67
Ambient illumination Incandescent lamp: 3,000 lux or less
Operating ambient temperature -10 to +40 °C (no freezing)
Operating ambient humidity 35 to 85 % RH (no condensation)
Power cord 15 cm highly flexible drag chain type cable M8 6PIN
Material Enclosure: Zinc alloy, Indicator cover: PC, Lens: Glass, Buttons: ABS, Cable: PVC
Weight Approx. 150 g (including cable)

*Catatan:
1. Ini adalah data dari pengukuran SENPUM target standar (objek difusi putih).
2. Data uji dengan jumlah rata-rata 128 sampel (Mode Resolusi Tinggi) digunakan sebagai standar, dan akurasi pengulangan bervariasi dalam berbagai mode.
3. Waktu pengukuran untuk nilai uji optimal terdiri dari dua bagian: waktu pengambilan sampel dan waktu perhitungan penyesuaian.


Relay type, RS-485

Model NPN/PNP
RS-485		 LM2-H030SCAT LM2-H030CAT LM2-H050CAT LM2-H085CAT LM2-H120CAT LM2-H200CAT LM2-H250CAT
Type Diffuse reflective
Short-range type Medium-range type Long-range type
Detection distance 30 mm 30 mm 50 mm 85 mm 120 mm 200 mm 250 mm
Range ±5 mm ±4 mm ±10 mm ±20 mm ±60 mm ±105 mm ±150 mm
Light sensor Linear image sensor CMOS
Spot size Close range ø150 μm ø150 μm 250*700 μm 250*700 μm ø500 μm ø600 μm ø600 μm
Reference distance ø120 μm ø120 μm 150*350 μm 150*150 μm ø250 μm ø400 μm ø400 μm
Long range ø120 μm ø120 μm 100*100 μm 250*500 μm ø500 μm ø600 μm ø700 μm
Light source 655 nm red laser, 1 mW max.
Laser class IEC/JIS (class2); FDA (class Ⅱ)
Linear accuracy ±0,1 % F.S.*1*2
Repeatability 1  μm*1*2 2  μm*1*2 5  μm*1*2 10  μm*1*2 40  μm*1*2 50  μm*1*2 70  μm*1*2
Sampling period 1 time/1 ms; 16 times/8.5 ms; 64 times/32.5 ms max. 1 time/1.5 ms; 16 times/13 ms; 64 times/49 ms max.
Temperature drift ±0,08 % F.S./℃
Analog output 0-20 mA; 4-20 mA; 0-5 V; 0-10 V; ±5 V; ±10 V
Switching output NPN or PNP open collector output, Q1/Q2: Max 100 mA/DC 30 V, residual voltage 1.8 V
External input NPN contactless input, valid: 0 to +1.2 VDC, input impedance: approx. 10 kΩ
Power voltage 12 to 30 VDC ±10 % including fluctuations of 10 % (p-p)
Current consumption 35 mA or less (at 24 VDC), 60 mA or less (at 12 VDC)
Protection class IP67
Ambient illumination Incandescent lamp: 3,000 lux or less
Operating ambient temperature -10 to +40 °C (no freezing)
Operating ambient humidity 35 to 85 % RH (no condensation)
Power cord 15 cm highly flexible drag chain type cable M8 6PIN
Material Enclosure: Zinc alloy, Indicator cover: PC, Lens: Glass, Buttons: ABS, Cable: PVC
Weight Approx. 150 g (including cable)

*Catatan:
1. Ini adalah data dari pengukuran SENPUM target standar (objek difusi putih).
2. Data uji dengan jumlah rata-rata 128 sampel (Mode Resolusi Tinggi) digunakan sebagai standar, dan akurasi pengulangan bervariasi dalam berbagai mode.
3. Waktu pengukuran untuk nilai uji optimal terdiri dari dua bagian: waktu pengambilan sampel dan waktu perhitungan penyesuaian.
