Description
Rentang suhu pengukuran -40 hingga +600 °C
Probe tahan suhu tinggi
Desainnya yang unik memungkinkan probe menembus lingkungan suhu tinggi hingga 180 °C, membantu Anda mengendalikan setiap titik suhu kritis.
Kepala sensor ultra-kompak untuk pemasangan di ruang sempit
Kepala sensor berukuran ringkas untuk penggunaan yang lebih luas.
Parameter yang dapat disesuaikan, pengontrol dengan tombol dan tampilan suhu
Pengontrol memiliki tombol untuk memudahkan penyesuaian parameter dan tampilan suhu.
Keluaran RS485, kompatibel dengan protokol MODBUSRTU
Mode keluaran RS485, kompatibel dengan protokol MODBUSRTU, nyaman untuk jaringan di tempat.
Products Lineup
Main unit
| Measuring temperature | -40 to +600 °C | |
| Spectral response | 8-14 μm | |
| Response time (90 %) | 150 ms | |

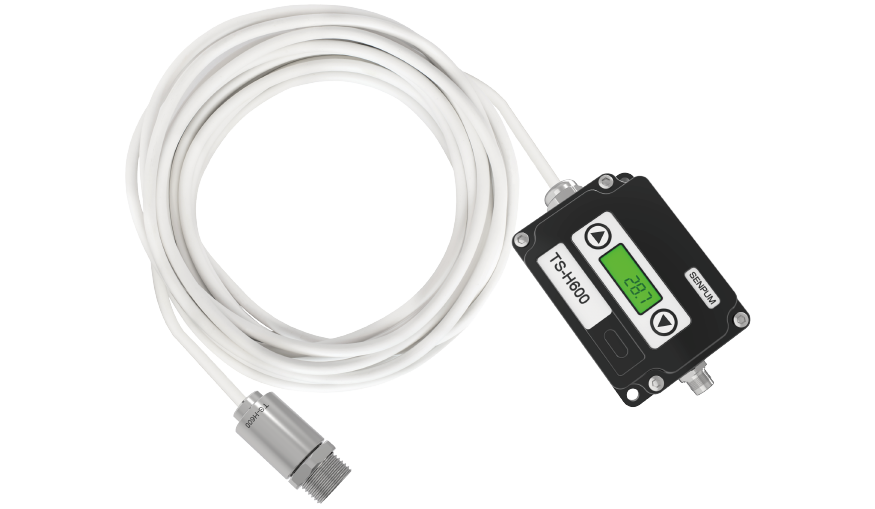

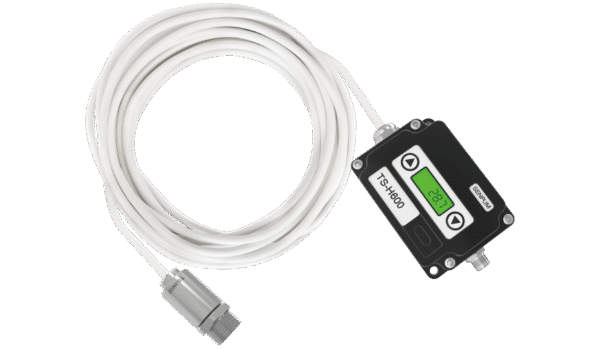

| Model | TS-H600 | TS-H600L |
| Appearance |  |
|
Bracket (sold separately)
| Model | OW-TSH001 |
| Appearance |  |
Cable (sold separately)
| Appearance | Cable length | Model |
 |
3 m | OW-TSH3000 |
| 5 m | OW-TSH5000 | |
| 10 m | OW-TSH10M |
Technical Specifications
| Model | TS-H600 | TS-H600L |
| Temperature measurement range | -40 to +600 °C | |
| Temperature measurement accuracy | ±1.5 % of reading or ±1.5 °C take the maximum value*¹ | |
| Repeatability | ±0.5 °C of reading or ±1 °C take the maximum value*¹ | |
| Spectral response | 8 to14 μm | |
| Optical resolution D:S (90 %) | 15:1 | |
| Temperature resolution | 0.1 °C | |
| Response time (95 %) | 150 ms | |
| Emissivity | 0.100 to 1.100 (software adjustable), preset 0.950 | |
| Transmission rate | 0.100 to 1.100 (software adjustable), preset 1.000 | |
| Display | 6-digit backlit LCD | |
| Analog output | 4-wire 4 to 20 mA | |
| Digital output | RS485 (supports Modbus RTU communication protocol) | |
| Operating voltage | 24 VDC ± 20 % | |
| Protection class | IP65 | |
| Operating temperature | Probe: -10 to +180 °C Controller: -10 to +70 °C |
Probe: -10 to +120 °C Controller: -10 to +70 °C |
| Storage temperature | -20 to +80 °C | |
| Operating humidity | 10 to 95 % (no condensation) | |
| Cable withstand temperature | Probe to electronics box: -20 to +200 °C Teflon Electronics box connection cable: -20 to +80 °C CPVC |
|
| Cable length (probe to controller) | 3 m | |
| Cable length (controller connection cable) | 0.5 m | |
| Material | Probe: Stainless steel 304, Controller: Die-cast zinc alloy | |
| Weight (standard cable length) | Probe: 40 g, Controller: 290 g | |
*1: Suhu sekitar 23 °C ± 5 °C, emisivitas 0,950
