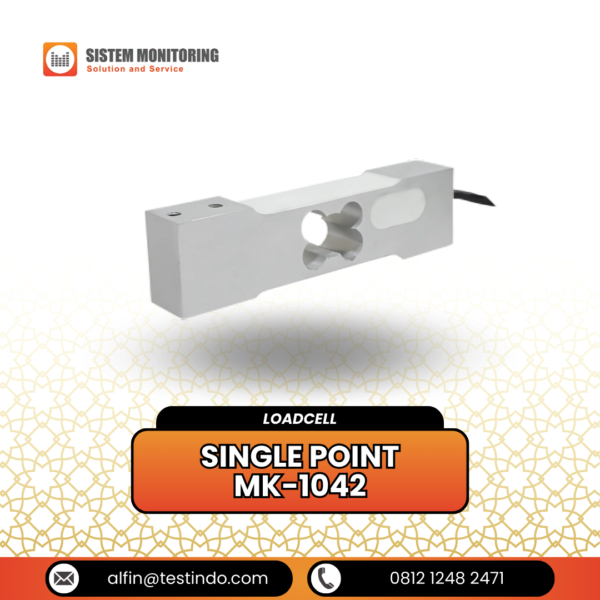

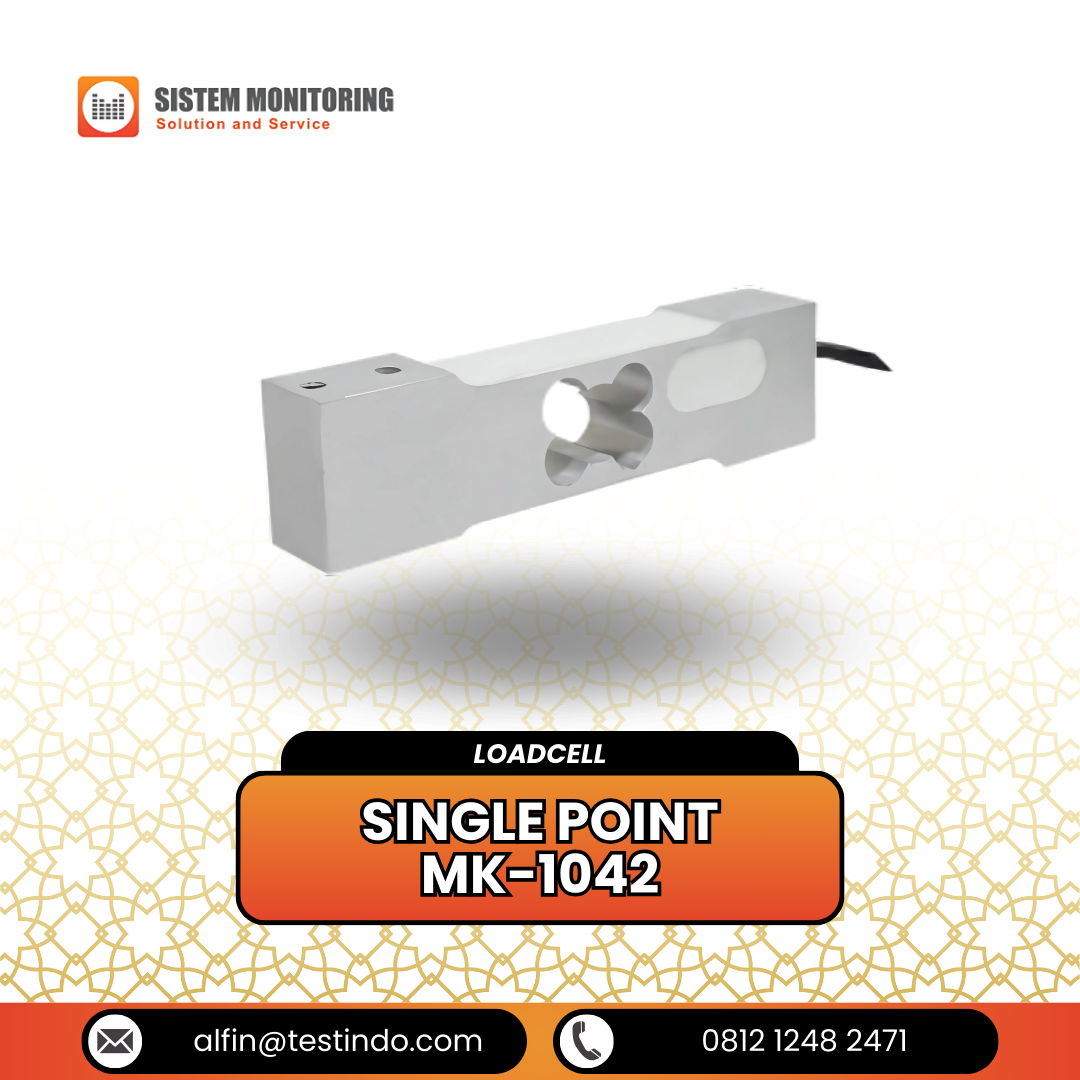

Loadcell Single Point MK-1042

FEATURE:

Small capacity versatile single point load cell
Unique design, Only 2 hole for tightening
Suitable for most simple weighing scale in industrial use
Typical applications often include bench scale, packaging machines, filling machines, industrial process control
Use high quality anodize aluminium

Description

ㅤ

Specification	Details
Rated capacities (Emax)	8, 10, 15, 20, 30, 50, 60, 75, 100, 200kg
Temperature, compensated	-10°C ~ +40°C
Rated Output	2.0±0.2mV/V
Temperature, operating	-20°C ~ +50°C
Accuracy class	OIML C3
Maximum safe overload	150% Emax
Creep error (30 min)	±166ppm
Ultimate overload	300% Emax
Zero balance	±3% Emax
Excitation, recommended	10V DC
TC ZERO	±17.5ppm/°C
Excitation, maximum	15V DC
TC SPAN	+20°C ~ +40°C, ±17.5ppm/°C
	-10°C ~ +20°C, ±11.67ppm/°C
Protection class	IP65
Input resistance	404±15Ω
Construction	Anodized Aluminium
Output resistance	350±3Ω
Cable	Length: 1.8m
Insulation resistance	≥2000MΩ (50V DC)
Installation torque, recommended	10N·m
Max platform size	300×400mm
Diameter	φ5mm
