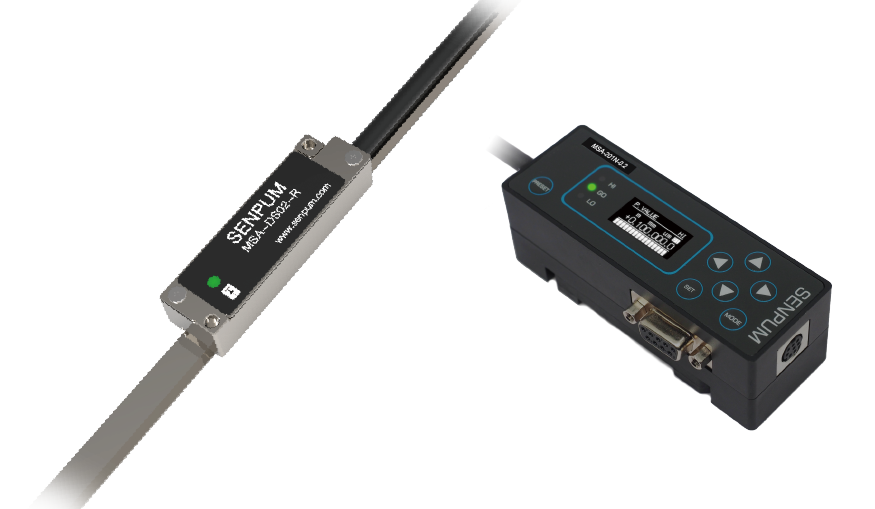

Description
Pengulangan ultra-tinggi 2 μm
Umpan balik posisi pengulangan ultra-tinggi 2 μm.
Deteksi akurat di lingkungan yang keras
Bahkan ketika timbangan magnetik mengembun dan terkontaminasi minyak, air, atau debu, timbangan tersebut dapat diposisikan secara akurat untuk digunakan dalam lingkungan yang sangat keras dan tahan terhadap kontaminasi oleh berbagai bahan kimia industri umum.
Pengontrol multifungsi untuk modul utama dan ekspansi bertingkat
Pembacaan data gerak secara serentak dalam 16 arah, secara akurat memperoleh posisi tiga dimensi mekanisme objek pada saat yang sama saat menghidupkan mesin.
Products Lineup
Encoder
| Type | Mounting gap | Resolution | Model |
Extra-large gap type |
0.45 ± 0.2 mm | 0.2 μm | MSA-DS02-R |
| 0.5 μm | MSA-DS05-R | ||
| 1.0 μm | MSA-DS10-R | ||
Mini-gap type |
0.25 ± 0.1 mm | 0.2 μm | MSA-DZ02-R |
| 0.5 μm | MSA-DZ05-R | ||
| 1.0 μm | MSA-DZ10-R |
*Catatan: Untuk keluaran ABZ yang disesuaikan, silakan berkonsultasi dengan teknisi penjualan SENPUM. Misalnya, MSA-DS02-R untuk model keluaran ABZ yang disesuaikan adalah MSA-DS02-F.
Linear Scale
| Type | Physical origin spacing | Effective length | Model |
Extra-large gap type |
96 mm | 1 m | MSA-DSL1000 |
| 5 m | MSA-DSL5000 | ||
| 10 m | MSA-DSL10M | ||
| 20 m | MSA-DSL20M | ||
Mini-gap type |
40 mm | 1 m | MSA-DZL1000 |
| 5 m | MSA-DZL5000 | ||
| 10 m | MSA-DZL10M | ||
| 20 m | MSA-DZL20M |
Controller
| Controller types | Resolution | Model | |
| NPN | PNP | ||
Main module |
0.2 μm | MSA-201N-0.2 | MSA-201P-0.2 |
| 0.5 μm | MSA-201N-0.5 | MSA-201P-0.5 | |
| 1.0 μm | MSA-201N-1.0 | MSA-201P-1.0 | |
Expansion module |
0.2 μm | MSA-202N-0.2 | MSA-202P-0.2 |
| 0.5 μm | MSA-202N-0.5 | MSA-202P-0.5 | |
| 1.0 μm | MSA-202N-1.0 | MSA-202P-1.0 | |
Cable (connection cable between encoder and controller)
| Cable length | Model |
| 1 m | MSA-OW1000 |
| 3 m | MSA-OW3000 |
| 5 m | MSA-OW5000 |
| 10 m | MSA-OW10M |
Technical Specifications
Encoder
| Model | Resolution | 0.2 μm | MSA-DS02-R | MSA-DZ02-R |
| 0.5 μm | MSA-DS05-R | MSA-DZ05-R | ||
| 1.0 μm | MSA-DS10-R | MSA-DZ10-R | ||
| Type | Extra-large gap type | Mini-gap type | ||
| Mounting gap | 0.45 ± 0.2 mm | 0.25 ± 0.1 mm | ||
| Linear Scale Series | MSA-DS Series | MSA-DZ Series | ||
| Current consumption | max. 250 mA | |||
| Output method | RS-232 | |||
| Fastest response time | 2 m/s (at 0.2 μm resolution); 3 m/s (at 0.5 μm resolution); 5 m/s (at 1 μm resolution) | |||
| Linear scale length | Within 20 m | Within 2.4 m | ||
| Positioning accuracy | ±5 μm/m (23 °C) | |||
| Linear expansion coefficient (scale) | Iron: 11.0 × 10⁻⁶/°C | |||
| Operating temperature range | 0 to 65 °C | |||
| Cable length | 0.5 m | |||
| Protection class | IP67 | |||
*Catatan: Untuk keluaran ABZ yang disesuaikan, silakan berkonsultasi dengan teknisi penjualan SENPUM. Misalnya, MSA-DS02-R untuk model keluaran ABZ yang disesuaikan adalah MSA-DS02-F.
Linear Scale
| Linear scale effective length | MSA-DS Series | MSA-DZ Series |
| Physical origin spacing | 96 mm | 40 mm |
| 1 m | MSA-DSL1000 | MSA-DZL1000 |
| 5 m | MSA-DSL5000 | MSA-DZL5000 |
| 10 m | MSA-DSL10M | MSA-DZL10M |
| 20 m | MSA-DSL20M | MSA-DZL20M |
Controller, NPN
| Model | NPN | MSA-201N-0.2 | MSA-201N-0.5 | MSA-201N-1.0 | MSA-202N-0.2 | MSA-202N-0.5 | MSA-202N-1.0 |
| Main module/Expansion module | Main module | Expansion module | |||||
| Display resolution | 0.2 μm | 0.5 μm | 1.0 μm | 0.2 μm | 0.5 μm | 1.0 μm | |
| Mounting method | DIN rail mounting | ||||||
| Type | Amplifier module | ||||||
| Power consumption | At 12 V: max. 1440 mW (120 mA); At 24 V: max. 1680 mW (70 mA) | ||||||
| Measurement value display | OLED | ||||||
| Display range | -99999,9999 to 99999,9999 | ||||||
| Main function | Current measured value display, original value display, upper limit/lower limit threshold manual setting, tolerance manual setting, upper limit/lower limit threshold automatic teach-in, tolerance automatic teach-in, display inversion, measurement plus or minus direction, preset value, initialization, key lock. | ||||||
| Control output | HI/GO/LOW NPN/PNP open collector; 100 mA 30 V max; Residual voltage 1 V max; N.O./N.C. switchable | ||||||
| Response time | 200 μs | ||||||
| Communication method | RS-232 (can convert to RS-485 or USB output) | None*1 | |||||
| Sampling rate | 5,000 times/sec | ||||||
| Control input | No voltage input | ||||||
| Indicator | Output indicators: HIGH (red), GO (green), LOW (orange) | ||||||
| Rated supply voltage | 12 to 24 VDC, Ripple (P-P) 10 % or less | ||||||
| Ambient temperature | -10 to +55 °C (no freezing) | ||||||
| Relative humidity | 35 to 85 % RH (no condensation) | ||||||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions | ||||||
| Connection method | Cable lead type (standard cable length 2 m) | ||||||
| Material | Main unit enclosure: Alloy aluminum; Membrane key switch: PET plastic; Cable: PVC | ||||||
*1. Bila modul ekspansi digunakan secara bertingkat dengan modul utama, modul ekspansi dilengkapi dengan fungsi komunikasi.
Controller, PNP output
| Model | PNP | MSA-201P-0.2 | MSA-201P-0.5 | MSA-201P-1.0 | MSA-202P-0.2 | MSA-202P-0.5 | MSA-202P-1.0 |
| Main module/Expansion module | Main module | Expansion module | |||||
| Display resolution | 0.2 μm | 0.5 μm | 1.0 μm | 0.2 μm | 0.5 μm | 1.0 μm | |
| Mounting method | DIN rail mounting | ||||||
| Type | Amplifier module | ||||||
| Power consumption | At 12 V: max. 1440 mW (120 mA); At 24 V: max. 1680 mW (70 mA) | ||||||
| Measurement value display | OLED | ||||||
| Display range | -99999,9999 to 99999,9999 | ||||||
| Main function | Current measured value display, original value display, upper limit/lower limit threshold manual setting, tolerance manual setting, upper limit/lower limit threshold automatic teach-in, tolerance automatic teach-in, display inversion, measurement plus or minus direction, preset value, initialization, key lock. | ||||||
| Control output | HI/GO/LOW NPN/PNP open collector; 100 mA 30 V max; Residual voltage 1 V max; N.O./N.C. switchable | ||||||
| Response time | 200 μs | ||||||
| Communication method | RS-232 (can convert to RS-485 or USB output) | None*1 | |||||
| Sampling rate | 5,000 times/sec | ||||||
| Control input | No voltage input | ||||||
| Indicator | Output indicators: HIGH (red), GO (green), LOW (orange) | ||||||
| Rated supply voltage | 12 to 24 VDC, Ripple (P-P) 10 % or less | ||||||
| Ambient temperature | -10 to +55 °C (no freezing) | ||||||
| Relative humidity | 35 to 85 % RH (no condensation) | ||||||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions | ||||||
| Connection method | Cable lead type (standard cable length 2 m) | ||||||
| Material | Main unit enclosure: Alloy aluminum; Membrane key switch: PET plastic; Cable: PVC | ||||||
*1. Bila modul ekspansi digunakan secara bertingkat dengan modul utama, modul ekspansi dilengkapi dengan fungsi komunikasi.
