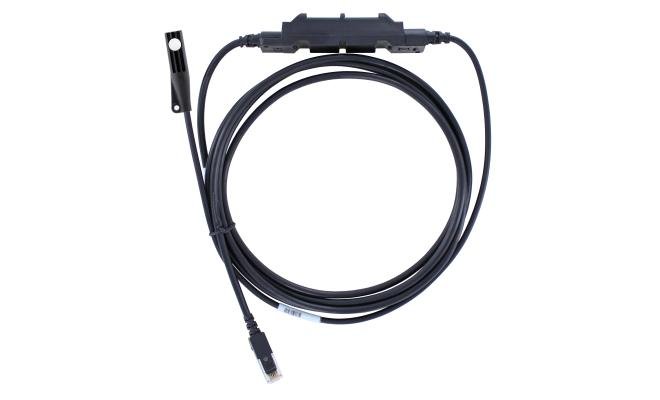

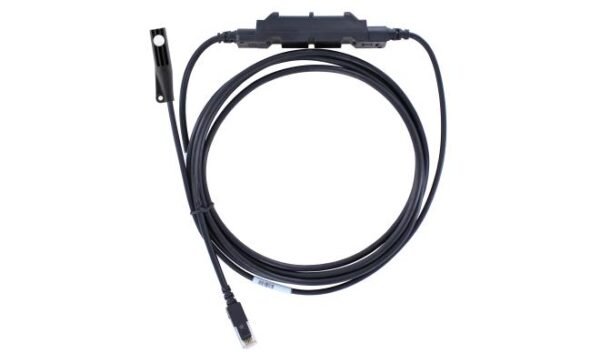

Alat Sensor Cerdas Suhu/Kelembapan Relatif (kabel 2m) Temperature/Relative Humidity (2m cable) Smart Sensor S-THC-M002

Measurement Range

-40°C to 75°C

-40°F to 167°F

0-100%* RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%

Accuracy

±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F); ±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F); ±0.25°C from 70° to 75°C (±0.45°F from 158° to 167°F)

±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical

Resolution

Bits Per Sample

Drift

Response Time (typical, to 90% of change)

Without solar radiation shield: 3 minutes, 45 seconds in air moving 1 m/s; With RS3-B solar radiation shield: 6 minutes, 30 seconds in air moving 1 m/s

Without solar radiation shield: 15 seconds in air moving 1 m/s; With RS3-B solar radiation shield: 30 seconds in air moving 1 m/s

Sensor

-40°C to 75°C

-40°F to 167°F

Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, protect the Temp/RH sensor from sunlight and direct splashing by mounting it inside a protective enclosure, such as a solar radiation shield.

PVC cable jacket with ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane

45.97 x 11.43 x 10.16 mm

1.81 x 0.45 x 0.40 inches

110 g

3.88 oz

2.5 m

8.2 ft

0.5 m

1.6 ft

Notices

       * Maximum 100 % RH readings are only logged with RX3000 stations.The                              maximum readings for this sensor with U30 and H21 stations are approximately              99.99 %.

** A single HOBO station can accommodate 15 data channels and up to 100 m(328 ft) of smart sensor cable(the digital communications portion of the sensor cables).
