Fasilitas perawatan kesehatan, termasuk klinik dan rumah sakit, mengandalkan suhu yang akurat dan konsisten untuk keselamatan dan perawatan pasien.
Diperkirakan industri biofarmasi kehilangan $35 miliar per tahun karena kegagalan logistik yang dikontrol suhu.
(Jurnal Transportasi Amerika)
Di laboratorium kesehatan, forensik, dan biosains yang canggih saat ini, menjaga kontrol suhu yang presisi sangatlah penting. Perangkat pencatat suhu LogTag berperan penting dalam memantau kondisi di dalam lemari es dan area penyimpanan kritis, penting untuk integritas reagen dalam alat analisis darah dan sentrifus, di mana suhu dingin tertentu menjaga efikasi. Alat analisis kimia klinis dan imunoasai, yang bergantung pada reagen ini untuk diagnosis penyakit dan pemantauan kesehatan pasien, mendapatkan manfaat dari kemampuan pencatat data LogTag yang akurat.
Teknologi ini juga penting dalam kromatografi cair, yang banyak digunakan untuk analisis sampel, memastikan kondisi suhu yang presisi untuk penyimpanan dan pemisahan yang akurat. Perekam data kulkas LogTag menyediakan data suhu dan peringatan yang detail, memungkinkan tindakan korektif yang cepat dan meminimalkan risiko kesalahan di lingkungan laboratorium yang sensitif.
Lihat Produk
Lihat Produk

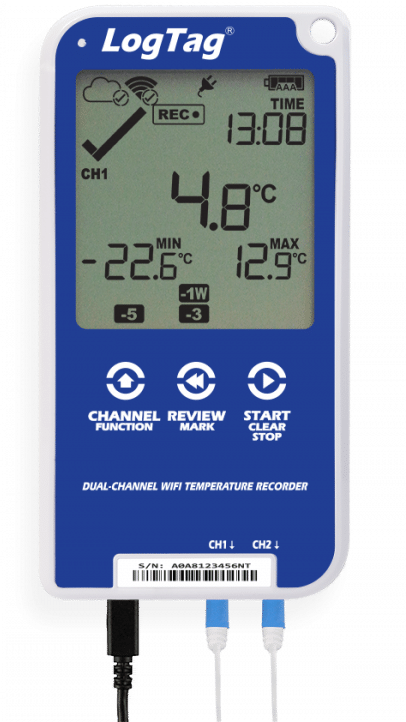

Alat Perekam Data (Data Logger) WiFi LCD Dua Saluran Serbaguna LogTag® UTRED30-WiFi (DC)
Link Produk: UTRED30-WiFI (DC)
Deskripsi
Pencatat data suhu LogTag ® UTRED30-WiFi secara otomatis mengunggah data suhu waktu nyata ke akun cloud LogTag ® Online Anda melalui jaringan nirkabel yang ada.
Terima panggilan telepon, SMS, atau peringatan WhatsApp instan dari alat pencatat Anda saat mendeteksi adanya ekskursi sehingga Anda dapat segera bertindak. Perlu berlangganan.
Ini termasuk memori nonvolatil hingga total 32.000 pembacaan suhu, 16.000 pembacaan per saluran, dan memori statistik, yang menyimpan pembacaan maksimum dan minimum serta durasi alarm untuk masing-masing 30 hari terakhir.
Alat ini dilengkapi layar besar yang mudah dibaca, disertai banyak atribut yang dikenal dari keluarga pencatat data LogTag ® .
Versi non-WiFi dari model ini tersedia.
LogTag ® UTRED30-WiFi mematuhi pedoman penyimpanan dan penanganan vaksin dari WHO, CDC, FDA, VFC, NIH, PHAC, AAP, dan lainnya.
Spesifikasi
| Product Model | UTRED30-WiFi. |
| External Sensor Measurement Range | -40°C to +99°C (-40°F to +210°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | -10 °C to +40 °C (32 °F to +104 °F). |
| Rated Temperature Resolution | Better than 0.1°C (0.2°F) for -30°C to +60°C (-22°F to +140°F). Better than 0.2°C (0.4°F) for -40°C to -30°C (-40°F to -22°F). Better than 0.5°C (0.9°F) for +60°C to +99°C (+140°F to +210°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F) Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F) Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F) Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F) |
| Probe Connectivity | Up to 2 |
| Probe Compatibility | All ST100 precision thermistor external probes can be interchangeably connected to the UTRED30-WiFi. Please refer to the page for External Probes on the LogTag North America website. |
| Recording Capacity | 32,130 total log memory. Provides 16,065 temperature readings per channel. Day summary statistics memory (for display on LCD): up to 30 days of Min/Max/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
| Download Time | Typically with full memory (32,130 readings) in less than 10 seconds. |
| Environmental | IP51 (when vertically mounted or hung). |
| Calibration | Factory calibrated using NIST equivalent reference equipment. Calibration certificate available on request. |
| Power Source | 5V via micro USB socket or, 2 x 1.5V AAA alkaline batteries, CR2032 3V LiMnO2 (backup logging function only) |
| Battery Life | Device should normally be powered via USB. AAA batteries provide backup power for up to 2 months |
| Connection Interface | USB 2.0 / Micro USB plug. |
| WiFi | 802.11 b/g/n |
| WiFi Authentication Methods | Open, WPA2/PSK (with or without PMF), EAP-PEAP, EAP-TTLS |
| Bluetooth® | Bluetooth® V4.2 BR/EDR and Bluetooth LE®. |
| Size | 141mm(H) x 72mm(W) x 18mm(T). |
| Weight | 158g with AAA batteries, (134g – excluding probe and AAA batteries). |
| Case Material | Polycarbonate. |
Alat Pencatat Data (Data Logger) Suhu LCD PDF USB Sekali Pakai LogTag® USRID-16W | PQS WHO
Link Produk: USRID-16W | PQS WHO
Deskripsi
Dirancang sebagai perekam suhu sekali pakai, hemat biaya & andal, rangkaian LogTag ® USRID-16W mengukur dan menyimpan 40 hari pembacaan suhu waktu nyata pada rentang pengukuran -30°C hingga +60°C.
Rangkaian LogTag ® USRID-16W telah memenuhi syarat untuk Standar PQS E006 Organisasi Kesehatan Dunia (WHO). (E006/070).
USRID-16W terhubung langsung ke USB komputer untuk memudahkan pengunduhan data. Laporan PDF yang sangat rinci dihasilkan dengan opsi untuk mengunduh data menggunakan perangkat lunak LogTag® Analyzer yang tersedia gratis untuk analisis yang lebih detail.
Spesifikasi
| Product Model | USRID-16WA/B USRID-16WC |
| Sensor Measurement Range | -30°C to +60°C |
| Operating Temperature Range | -30°C to +60°C |
| Storage Temperature Range | -30°C to +55°C with device de-activated |
| Rated Temperature Reading Accuracy | Better than ±0.5°C for -5°C to +30°C Better than ±0.8°C or better for -30°C to +60°C Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | Better than 0.1 °C between -20 °C to +55 °C LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag® |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 11,520 temperature readings (40 days at 5 minute logging) |
| Sampling Interval | Factory set at 5 minutes (non-changeable) |
| Logging Start Options | Push button start |
| Logging Stop Options | Push Button Stop Stop after the logger has completed 11,520 temperature readings (40 days at 5 minute logging) |
| Alarms | 3 alarms set at WHO requirements |
| Download Time | Typically with full memory in less than 20 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer 3 |
| Environmental | Ingress rating: IP65 with USB cap fitted Shock and Vibration: Unit shall pass a relevant level of shock and vibration based on the requirements of the Indicator specification E006/ TR07.3. Environmental resistance: Labels and plastics shall be resistant to a range of chemicals and UV, including rubbing alcohol and petrol fuel. |
| Power Source | CR2032 3V LiMnO2 Battery (Non-Replaceable) |
| Battery Life | Minimum storage life of 2 years before ‘start’ Monitoring period: 40 days Minimum accessibility (display) period of 6 months after ‘stopped’ |
| Real Time Clock | Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 3 or higher |
| Multi-language Support | Multi-language support for English, Spanish, French, Russian and German |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap |
| Weight | 39g |
| Case Material | Polycarbonate |
